HP ProLiant ML310e Specification

Hp proliant ml310e generation 8 (gen8) v2.
Hide thumbs

Advertisement

QuickSpecs
Overview

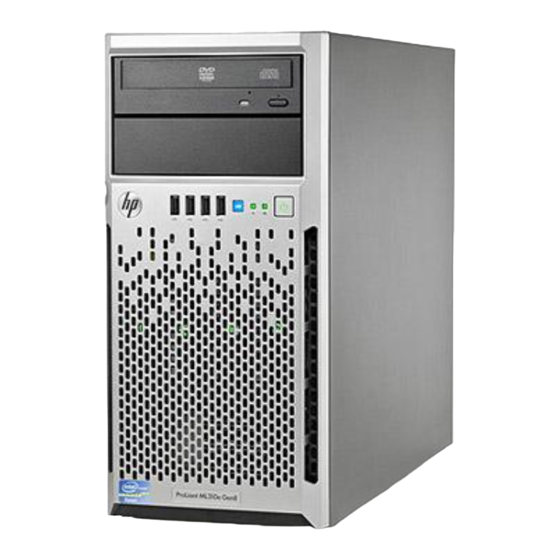

HP ProLiant ML310e Gen8 v2, a single-socket 4U tower server, delivers essential availability and expansion needed to accommodate
changing business needs. It is ideal for remote sites and corporate branch offices running file/print, web messaging, and small vertical
applications or databases.
Front View:
1.
Quick removal access panel
2.
Power Supply
3.
Four DIMM slots
4.
Rear system fan (Processor cooling)
5.
Processor Heatsink
6.
Four (4) PCIe expansion slots
7.
Front system fan (Expansion board cooling)
8.
Half Height SATA DVD-ROM or DVD RW Optical Drive
9.
Media Drive Blank
10.
Power Button
11.
NIC Activity LED
12.
System Health
13.
UID LED button
14.
Four (4) USB connectors
15.
Four (4) LFF or Eight (8) SFF SAS/SATA HDD cage
What's New
Latest Intel® Pentium® and CoreTM i3 Desktop Series processors
Entry BTO SKU
DA - 14564 Worldwide — Version 11 — December 13, 2013
HP ProLiant ML310e Generation 8 (Gen8) v2
Rear View:
1.
Power supply
2.
NIC Connector 2
3.
NIC Connector 1
4.
UID LED Button
5.
iLO Dedicated LAN Port
6.
Two(2) USB 3.0 Connectors
7.
Video Connector
8.
Serial Connector
9.
Slot 4 PCIe x16
10.
Slot 3 PCIe x8
11.
Slot 2 PCIe x8
12.
Slot 1 PCIe x4
13.
PCIe card bracket
Page 1

Advertisement

Table of Contents

   Related Manuals for HP ProLiant ML310e

   Summary of Contents for HP ProLiant ML310e

  • Page 1 HP ProLiant ML310e Generation 8 (Gen8) v2 Overview HP ProLiant ML310e Gen8 v2, a single-socket 4U tower server, delivers essential availability and expansion needed to accommodate changing business needs. It is ideal for remote sites and corporate branch offices running file/print, web messaging, and small vertical applications or databases.
  • Page 2: Standard Features

    QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) v2 Standard Features NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. Processor Entry Processors One of the following NOTE: All support up to 1333MT/s DDR3 memory speeds.
  • Page 3 32 GB (4 x 8 GB UDIMM) (UDIMM) NOTE: HP memory from previous generation servers are not fully compatible with the HP ProLiant ML310e Gen8 v2 Server. NOTE: epending on the memory configuration and processor model, the memory speed may run at 1600MT/s or 1333MT/s.
  • Page 4 HP ProLiant ML310e Generation 8 (Gen8) v2 Standard Features HP Server ROM HP ROM (Read Only Memory) is now digitally signed using HP's Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.
  • Page 5 Server Power Cords The ProLiant ML310e Gen8 v2 server is a tower server that ships standard with a 6' country specific NEMA power cord that allows connection to wall outlets in a home or office. If customers require additional local power cords, they can check the power cord matrix for the appropriate country specific sku.
  • Page 6 Electric Power Research Institute (EPRI) and certified through the ECOS 80 Plus power supply program. The 460W HP CS power supply option provides an efficiency rating of up to 92%. All HP Common Slot power sources are UL, CE Mark Compliant, hot-plug and support redundant configurations.
  • Page 7 Servers SUSE Linux Enterprise Server (SLES) VMware NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page: http://www.hp.com/support/ML310eGen8v2.
  • Page 8 BladeSystem enclosure components (Onboard Administrator and Virtual Connect). This testing ensures the highest quality as well as providing the input for HP SUM to deploy updates taking into account all interdepencies, when determining the correct updates and order of update deployment.
  • Page 9 Administrator's password Warranty This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.
  • Page 10: Optional Features

    Storage software that gets the job done: Data Protection and Recovery Software Whether you're a large enterprise or a smaller business, HP data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity. Data Archive and Migration Software...
  • Page 11 HP Insight Online HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime.
  • Page 12: Service And Support

    Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.
  • Page 13 Learn more http://www.hp.com/go/hpsc HP's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty, HP Care Pack or HP contractual support agreement.
  • Page 14 NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit.
  • Page 15: Base Models

    Fans One (1) Non-redundant system fan ships standard One (1) Non-redundant PCIe fan ships standard Management HP iLO Management Engine (standard on shared system NIC) Optional: HP iLO Essentials or HP Insight Control Form Factor Micro ATX Tower (4U) Warranty Server Warranty includes 1-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response (3-1-1 warranty offered in Brazil only).
  • Page 16 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) v2 Pre-configured Models Country Code Key Tower Code Key xx=00 xx=01 Australia xx=03 xx=04 Germany xx=05 France xx=37 xx=42 Europe xx=AA DA - 14564 Worldwide — Version 11 — December 13, 2013 Page 16...
  • Page 17 NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
  • Page 18 HP ML310e Gen8 v2 Intel® Pentium® G3220 (3.0GHz/2-core/3MB/54W) FIO Processor 740647-L21 Base Processors NOTE: All support up to 1600MT/s DDR3 memory speeds. HP ML310e Gen8 v2 Intel® Core™ i3-4130 (3.4GHz/2-core/3MB/54W) FIO Processor Kit 740651-L21 HP ML310e Gen8 v2 Intel® Core™ i3-4130T (2.9GHz/2-core/3MB/35W) FIO Processor Kit 740653-L21 Performance Processors NOTE: All support up to 1600MT/s DDR3 memory speeds.
  • Page 19 Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported. NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration.
  • Page 20 NOTE: Some options may not be integrated at the factory. Contact your local sales representative for additional information. HP Unique Options HP 4U 4 Large Form Factor Hot Plug Hard Drive Backplane Kit 674839-B21 NOTE: The LFF Kit is a backplane kit designed for going from NHP LFF to hot-plug LFF.
  • Page 21 NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard 718162-B21 Drive HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive...
  • Page 22 658071-B21 6G SATA Non-hot Plug LFF (3.5-inch) Midline (MDL) Drives HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive 628065-B21 HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive 659339-B21 HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive...
  • Page 23 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) v2 Core Options HP 200GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty 691854-B21 Solid State Drive HP 100GB 6G SATA Mainstream Endurance LFF 3.5-in SC Enterprise Mainstream 3yr Wty...
  • Page 24 Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported. NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration.
  • Page 25: Additional Options

    HP ProLiant ML310e Generation 8 (Gen8) v2 Additional Options NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
  • Page 26 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) v2 Additional Options HP iLO Advanced including 1yr 24x7 Technical Support and Updates Tracking License 512487-B21 NOTE: For additional license kits, including electronic delivery options, please see the QuickSpecs at: http://h18004.www1.hp.com/products/quickspecs/14276_div/14276_div.html NOTE: For more information, visit: http://www.hp.com/go/ilo.
  • Page 27 For hardware and software compatibility of HP tape backup products see: http://www.hp.com/storage/SPOCK and www.hp.com/go/ebs. HP StoreEver LTO-6 Ultrium 6250 Tape Drive in 1U Rack-mount Kit C0L99A HP StoreEver LTO-6 Ultrium 6650 Internal Tape Drive EH963A HP StoreEver LTO-6 Ultrium 6650 External Tape Drive...
  • Page 28 NOTE: Please see the QuickSpecs for additional part numbers, Technical Specifications, and additional information: http://h18000.www1.hp.com/products/quickspecs/13036_div/13036_div.html (Worldwide) HP Disk Storage Systems Disk Enclosures HP D2600 w/12 4TB 6G SAS 7.2K LFF Dual Port MDL HDD 48TB Bundle E7W32A NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13404_div/13404_div.html...
  • Page 29 NOTE: For additional information on sizing your server, please reference: http://www.upssizer.com. NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units.
  • Page 30 NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/14557_div/14557_div.html (Worldwide) NOTE: Additional HP Power Distribution Units are available. For a complete list of all HP PDUs and additional information please visit www.hp.com/go/rackandpower. HP Remote Monitoring HP Remote Monitored Power Distribution Unit: 1U Version Power Distribution Units HP 2.8kVA 120 Volt 12 Outlet NA/JP Monitored Power Distribution Unit...
  • Page 31 HP 17.3kVA 24A 415V Three Phase 12 Outlet Core NA/JP Intelligent Power Distribution AF537A Unit HP 22kVA 32A 400V Three Phase 12 Outlet Core INTL Intelligent Power Distribution Unit AF538A iPDU Kits with Standard Extension Bars HP 4.9kVA 24A Single Phase NA/JP Intelligent Modular Power Distribution Kit AF531A HP 8.6kVA 24A Three Phase NA/JP Intelligent Modular Power Distribution Kit...
  • Page 32 NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower. HP Rack Options HP USB Keyboard and Mouse HP USB BFR with PVC Free US Keyboard/Mouse Kit 631341-B21 HP USB BFR with PVC Free UK Keyboard/Mouse Kit 631344-B21...
  • Page 33 (Worldwide) HP Server Console Switch G2 with Virtual Media & CAC HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software AF618A HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software AF619A HP KVM CAT5 1-pack USB Interface Adapter...
  • Page 34 HP 2GB USB Flash Media Drive Key Kit 608447-B21 NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment and other HP value-add software. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi.
  • Page 35 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) v2 Additional Options NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/carepack DA - 14564 Worldwide — Version 11 — December 13, 2013 Page 35...
  • Page 36 * Maximum capacity will vary based on individual server platform qualification schedule ** For HP SmartMemory, UDIMM is supported at 2DPC@1333 at 1.35V. Third party memory may only support up to 2DPC@1066 at 1.5V. DA - 14564 Worldwide — Version 11 — December 13, 2013...
  • Page 37 DDR3 memory options part number decoder Following are memory options available from HP: HP Memory Unbuffered with ECC DIMMs (UDIMMs) HP 2GB (1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory 669320-B21 HP 2GB (1x2GB) Single Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low 647905-B21...
  • Page 38 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) v2 Memory HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low 713977-B21 Voltage Memory Kit HP 8GB (1x8GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory 669324-B21 HP 8GB (1x8GB) Dual Rank x8 PC3L-10600E (DDR3-1333) Unbuffered CAS-9 Low...
  • Page 39 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) v2 Storage 1 - 8 8 x 2.5" (SFF) SAS/SATA hard drive bays Removable Optical Drive Removable Optical Drive NOTE. Once Redundant Power Supply is installed, Bay A will be the only media bay available for use.
  • Page 40: Technical Specifications

    QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) v2 Technical Specifications System Unit Tower Dimensions 14.5.x 6.89 x 18.71 in (36.82 x17.5 x 47.52 cm) (H x W x D) (with feet/bezel) Tower Weight Maximum 41.8 lb (18.96 kg) (all hard drives, power...
  • Page 41 QuickSpecs HP ProLiant ML310e Generation 8 (Gen8) v2 Technical Specifications average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
  • Page 42 To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner. The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.
  • Page 43 Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
