HP ProLiant DL360e Specification

Hp proliant dl360e generation 8 (gen8)
Hide thumbs Also See for ProLiant DL360e:

Advertisement

Quick Links

Download this manual See also: Reference Manual, User Manual
QuickSpecs
Overview
Essential features packed in a 1U footprint to deliver the key elements for file and print and single application workloads. Value,
performance, flexible storage, enhanced management and superior serviceability makes the DL360e the 2P system right-sized for both
SMB and enterprise customers.

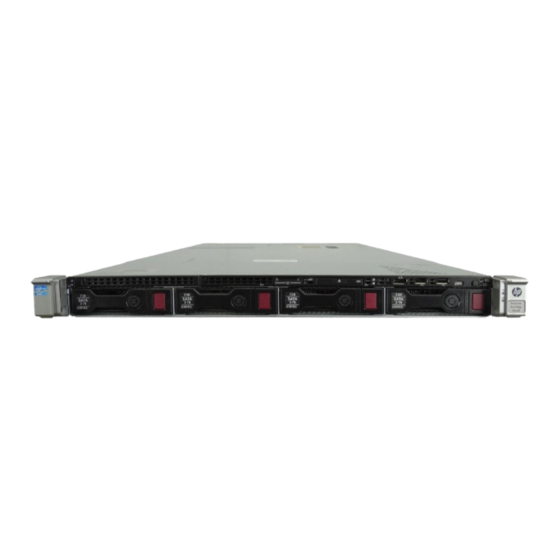

Front View:
1.
Access Panel
2.
Redundant Hot Plug Power Supplies (upgradeable option)
3.
Removable Riser Cage assembly for 1 x PCIe 3.0 x16 + 1 x
PCIe 2.0 x8
4.
12 DIMM slots: DDR3 Registered (RDIMM), Load Reduced
(LRDIMM) or Unbuffered (UDIMM) memory
5.
Removable hot-plug fan modules for easy serviceability
6.
Optical Disk Drive Bay
7.
Video connector
8.
USB Connectors
9.
Unit ID LED/button
10.
Health LED
11.
NIC activity LED
12.
Power On/Standby button
13.
Drive Bays
14.
Up to two Intel® E5-2400 Series processors
DA - 14327 Worldwide — Version 33 — December 16, 2013
HP ProLiant DL360e Generation 8 (Gen8)
Rear View:
1.
PCIe 3.0 Full-height/half -length (250mm) x16 expansion
slot
2.
PCIe 2.0 Low Profile x8 expansion slot
3.
Power supply bay 1 (Primary Power Supply)
4.
Power supply bay 2 (Shown populated: Optional)
5.
Unit ID LED/button
6.
HP Ethernet 1Gb 4-port 366i Adapter
7.
Serial connector
8.
Video connector
9.
USB connectors
10.
iLO connector
11.
USB connectors
Page 1

Advertisement

loading

Related Manuals for HP ProLiant DL360e

Summary of Contents for HP ProLiant DL360e

  • Page 1 QuickSpecs HP ProLiant DL360e Generation 8 (Gen8) Overview Essential features packed in a 1U footprint to deliver the key elements for file and print and single application workloads. Value, performance, flexible storage, enhanced management and superior serviceability makes the DL360e the 2P system right-sized for both SMB and enterprise customers.

  • Page 2: Standard Features

    QuickSpecs HP ProLiant DL360e Generation 8 (Gen8) Standard Features NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section. Processor Quad-Core Processors One of the following NOTE: All support up to 1066MHz DDR3 memory speeds.
  • Page 3 Maximum Capacity 96GB (12 x 8GB UDIMM @1333MHz) (UDIMM) NOTE: HP memory from previous generation servers are not fully compatible with the HP ProLiant DL360e Gen8 Server. NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is DA - 14327 Worldwide —...
  • Page 4 *Indicates the number of physical electrical lanes running to the connector. HP Server ROM HP ROM (Read Only Memory) is now digitally signed using HP's Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.
  • Page 5 4 LFF drive bays total with Optical drive bay. depending on Model NOTE: HP ProLiant DL360e Gen8 server offers both SFF and LFF versions in CTO. The Optical Drive bay is available with both models. NOTE: Drive cage changes are not supported.
  • Page 6 All Pre-configured Models servers ship with a high voltage server to PDU power cord. NOTE: HP ProLiant DL servers no longer ship standard with a 12-foot NEMA 5-15P to C13 power cord that connects to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to power distribution units (PDUs) in data center racks and now ship standard with a PDU 6-foot C-14 to C13 power cord (A0K02A).
  • Page 7 For more information on HP's Power Discovery Services, go to: www.hp.com/go/ipd. It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for your needs. HP Power Advisor can be accessed at: www.hp.com/go/hppoweradvisor.
  • Page 8 Servers VMware NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from HP, please visit our OS Support Site at: http://www.hp.com/go/ossupport...
  • Page 9 BladeSystem enclosure components (Onboard Administrator and Virtual Connect). This testing ensures the highest quality as well as providing the input for HP SUM to deploy updates taking into account all interdepencies, when determining the correct updates and order of update deployment.
  • Page 10 Administrator's password Warranty This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.

  • Page 11: Optional Features

    For more information, see http://www.hp.com/go/insightcontrol. HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates.
  • Page 12 HP StoreVirtual VSA With HP StoreVirtual VSA you can use the power of virtualization to turn a set of heterogeneous and disconnected physical disk drives in your servers and storage devices into a single pool of logical storage capacity.
  • Page 13 HP Insight Online HP Insight Online is a new addition to the HP Support Center for one stop, secure access to product and HP support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HP Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at anytime.

  • Page 14: Service And Support

    Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.
  • Page 15 Provides problem resolution support across the stack of HW, firmware, and HP and 3rd party SW. In case the issue is with 3rd party SW, HP does known issue resolution. If HP cannot solve the issue, it will contact the third-party vendor and create a problem incident on your behalf.
  • Page 16 The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction. It does not apply to any exchange of Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by HP as consumable parts and/or that have exceeded maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer's operating manual or the technical data sheet are not eligible for the defective media retention service feature option.

  • Page 17: Pre-Configured Models

    NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HP SFF Gen8 Hard Drive Blank Kit or P/N 666986-B21: HP LFF Gen8 Hard Drive Blank Kit.
  • Page 18 Rack (1U) NOTE: Includes Rack Mounting Gen8 non-telescoping Friction Rail Kit which does not allow for in rack serviceability. The HP 1U Gen8 Cable Management Arm is not available when using Friction Rails. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001).

  • Page 19: Base Models

    Due to the size and weight of the server two people are required to install the server into the rack. The HP 1U Gen8 Cable Management Arm is optional. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001).
  • Page 20 Due to the size and weight of the server two people required to install the server into the rack. The HP 1U Gen8 Cable Management Arm is optional. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001).

  • Page 21: Configuration Information - Factory Integrated Models

    NOTE: The DL360e ships standard with the HP Dynamic Smart Array B120i Controller which provides support for up to 6 SATA drives (greater than 4 drives requires additional cable, PN 675856-B21) and data transmission speeds up to 3Gb/s. Customers requiring SAS support or greater than 6 drives should select either a Smart Array family controller or the SAS Riser FIO kit (PN 661387-B21) that includes HP Dynamic Smart Array B320i Controller Up to 8 SAS drives can be supported with HP Dynamic Smart Array B320i controller.
  • Page 22 HP iLO Management Engine (standard) NOTE: New options are available for Rack Rail Kits; these options are no longer standard on-board with this Model Part Number. Please see HP Rack Options below for optional required options. Step 2: Choose Required Options (only one of the following from each list unless otherwise...
  • Page 23 SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide) NOTE: HP memory from previous generation servers are not fully compatible with new Active Health features on the Gen8 Server. Registered DIMMs (RDIMMs) HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low...
  • Page 24 NOTE: HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HP power cords please go to www.hp.com/products/powercords NOTE: Power Specification and Technical Content for supported power supplies can be found at: http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html...
  • Page 25 NOTE: Includes Rack Mounting Gen8 non-telescoping Friction Rail Kit which does not allow for in rack serviceability. The HP 1U Gen8 Cable Management Arm is not available when using Friction Rails. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative (p/n 695539-001).

  • Page 26: Core Options

    HP ProLiant DL360e Generation 8 (Gen8) Core Options NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
  • Page 27 QuickSpecs HP ProLiant DL360e Generation 8 (Gen8) Core Options HP Memory NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide) NOTE: HP memory from previous generation servers are not fully compatible with Smart Memory features in Gen8 Servers.
  • Page 28 Small Form Factor (SFF 2.5 in) and Large Form Factor (LFF 3.5 in) hot plug carriers for HP Qualified Hard Drives and Solid State Drives. These new carriers provide status and activity indicators as well as caution indicators for "Do Not Remove".
  • Page 29 (Worldwide) 6G SATA Value Endurance Hot Plug SFF (2.5-inch) Enterprise Boot Solid State Drives HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State 717965-B21 Drive HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State...
  • Page 30 690825-B21 Solid State Drive 6G SAS SLC Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives HP 400GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State 653082-B21 Drive HP 200GB 6G SAS SLC SFF (2.5-inch) SC Enterprise Performance 3yr Warranty Solid State...
  • Page 31 Mixing Gold, Platinum, and Platinum Plus certified power supplies is not supported. NOTE: Prior to making a power supply selection it is highly recommended that the HP Power Advisor is run to determine the right size power supply for your server configuration.
  • Page 32 NOTE: HP ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs). For a full list of optional HP power cords please go to www.hp.com/products/powercords NOTE: Power Specification and Technical Content for supported power supplies can be found at: http://h18000.www1.hp.com/products/quickspecs/14209_div/14209_div.html...

  • Page 33: Additional Options

    HP ProLiant DL360e Generation 8 (Gen8) Additional Options NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
  • Page 34 E5Y34A HP OneView Media Kit Phys No Lic E5Y37A HP OneView without iLO Advanced HP OneView w/o iLO Adv incl 3yr 24x7 Supp Phys 1 Svr Lic E5Y38A NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/14621_div/14621_div.html...
  • Page 35 HP 2GB P-series Smart Array Flash Backed Write Cache 631681-B21 HP 512MB B-series 36 inch Dynamic Smart Array Flash Backed Write Cache for ML/DL 631922-B21 NOTE: This kit includes a cable and cache module that is used in conjunction with the B320i and B120i controller.
  • Page 36 (HBA 221) http://h18004.www1.hp.com/products/quickspecs/14337_div/14337_div.html (HBA 222) SCSI HBA HP SC11Xe Ultra320 Single Channel/ PCIe x4 SCSI Host Bus Adapter 412911-B21 NOTE: Please see the following QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html (SC11Xe HBA) DA - 14327 Worldwide — Version 33 — December 16, 2013...
  • Page 37 QuickSpecs HP ProLiant DL360e Generation 8 (Gen8) Additional Options HP Cable Options HP LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable AJ837A HP B-series SFP+ to SFP+ Active Copper 1.0m Direct Attach Cable AP818A HP LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable AJ834A HP LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable...
  • Page 38 HP SN1000E 16Gb 1-port PCIe Fibre Channel Host Bus Adapter QR558A HP SN1000E 16Gb 2-port PCIe Fibre Channel Host Bus Adapter QR559A HP StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter C8R38A HP StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter C8R39A...
  • Page 39 NOTE: For additional information on sizing your server, please reference: http://www.upssizer.com. NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units.
  • Page 40 NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/14557_div/14557_div.html (Worldwide) NOTE: Additional HP Power Distribution Units are available. For a complete list of all HP PDUs and additional information please visit: www.hp.com/go/rackandpower. DA - 14327 Worldwide — Version 33 — December 16, 2013 Page 40...
  • Page 41 D9N49A HP 7.3kVA 230 Volt 36 Outlet INTL Monitored Power Distribution Unit D9N50A HP 8.6kVA 208 Volt Three Phase 21 Outlet NA/JP Monitored Power Distribution Unit D9N51A HP 5.7kVA 208 Volt Three Phase 21 Outlet NA/JP Dual Voltage Monitored Power...
  • Page 42 NOTE: Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units.
  • Page 43 NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/14429_div/14429_div.html (Worldwide) HP USB Keyboard and Mouse HP USB BFR with PVC Free US Keyboard/Mouse Kit 631341-B21 HP USB BFR with PVC Free UK Keyboard/Mouse Kit 631344-B21 HP USB BFR with PVC Free FR Keyboard/Mouse Kit...
  • Page 44 (Worldwide) HP Server Console Switch G2 with Virtual Media & CAC HP 0x2x16 KVM Server Console Switch G2 with Virtual Media CAC Software AF618A HP 0x2x32 KVM Server Console Switch G2 with Virtual Media CAC Software AF619A HP KVM CAT5 1-pack USB Interface Adapter...
  • Page 45 Due to the size and weight of the server two people are required to insall the server into the rack. The HP 1U Gen8 Cable Management Arm is optional. To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative.
  • Page 46 Service HP 3 year 6 hour Call to Repair 24x7 ProLiant DL360e Proactive Care Service U6D69E HP 3 year 6 hour Call to Repair 24x7 w/ Defective Media Retention ProLiant DL360e U6D70E Proactive Care SVC HP 3 year 4 hour 24x7 ProLiant DL360e with Insight Control Proactive Care Service...
  • Page 47 U6D62E Support HP 3 year 6 hour Call to Repair 24x7 ProLiant DL360e Collaborative Support U6D67E HP 3 year 6 hour Call to Repair 24x7 w/ Defective Media Retention ProLiant DL360e U6D68E Collaborative Sup Proactive Care Personalized Support Option NOTE: To add an onsite Account Support Manager (ASM) to Proactive Care. ASM is an assigned resource who delivers support planning and brings technical expertise and best practices advices for the customer's environment.
  • Page 48 HP SmartMemory New HP SmartMemory now provides additional protection for your servers. With HP Authentication it can verify that you have true HP Qualified Memory in your HP ProLiant Gen8 server. With HP SmartMemory your new HP ProLiant server can take advantage of...
  • Page 49 NOTE: To realize the performance memory capabilities listed above HP SmartMemory is required. *Maximum capacity will vary based on individual server platform qualification schedule **LRDIMM enables 2 DIMMs per channel. HP SmartMemory supports up to 2DPC@1333 at 1.35V. Third party memory may only support up to 2DPC@1066 at 1.5V.
  • Page 50 QuickSpecs HP ProLiant DL360e Generation 8 (Gen8) Memory Pre Configured Models Standard Memory Maximum Memory Plus Standard Memory Replaced Optional Memory with Optional Memory Intel Xeon E5-2430 24GB (6x 4GB) 120GB (6x 16GB, 6x 4GB) 384GB (12x 32GB) Intel Xeon E5-2407...
  • Page 51 SmartMemory is required. For additional information, please see the HP SmartMemory QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/14225_div/14225_div.html (Worldwide) NOTE: HP memory from previous generation servers are not fully compatible with the DL360e Gen8 Server. Registered DIMMs (RDIMMs) HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low...
  • Page 52 QuickSpecs HP ProLiant DL360e Generation 8 (Gen8) Storage Optional DVD-ROM/DVD-RW 8 x SFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays Optional DVD-ROM/DVD-RW 4 x LFF SATA/SAS/SSD Hot Pluggable Hard Drives Bays External Storage Quantity Position Supported Supported Host Controller or Adapter...

  • Page 53: Technical Specifications

    QuickSpecs HP ProLiant DL360e Generation 8 (Gen8) Technical Specifications System Unit Dimensions (H x W x D) 8 SFF 1.7 x 17.1 x 27.5 inches (4.32 x 43.46 x 69.9 cm) 4 LFF 1.7 x 17.1 x 29.5 inches (4.32 x 43.46 x 75.0 cm)
  • Page 54 QuickSpecs HP ProLiant DL360e Generation 8 (Gen8) Technical Specifications Non-operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min). Acoustic Noise Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment.
  • Page 55 QuickSpecs HP ProLiant DL360e Generation 8 (Gen8) Technical Specifications HP Dynamic Smart Array Dimensions Embedded B120i Controller Disk Drive and Enclosure Up to 6Gb/s SATA (Serial ATA) Interface - Transfer rate Connectors 6 internal SATA connectors Server Interface x4 PCIe 2.0...
  • Page 56 NOTE: Either a minimum of 256MB cache and battery kit or a minimum of 512MB BBWC/FBWC is required to enable RAID 5, 50, 6, 60. NOTE: HP Smart Array Advanced Pack (SAAP 2.0) is no longer required to enable 6 & 60 (Advanced Data Guarding). However, controller must be in firmware version 4.68 (or later).
  • Page 57 Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
