Operating CPQONLIN in manual configuration
mode

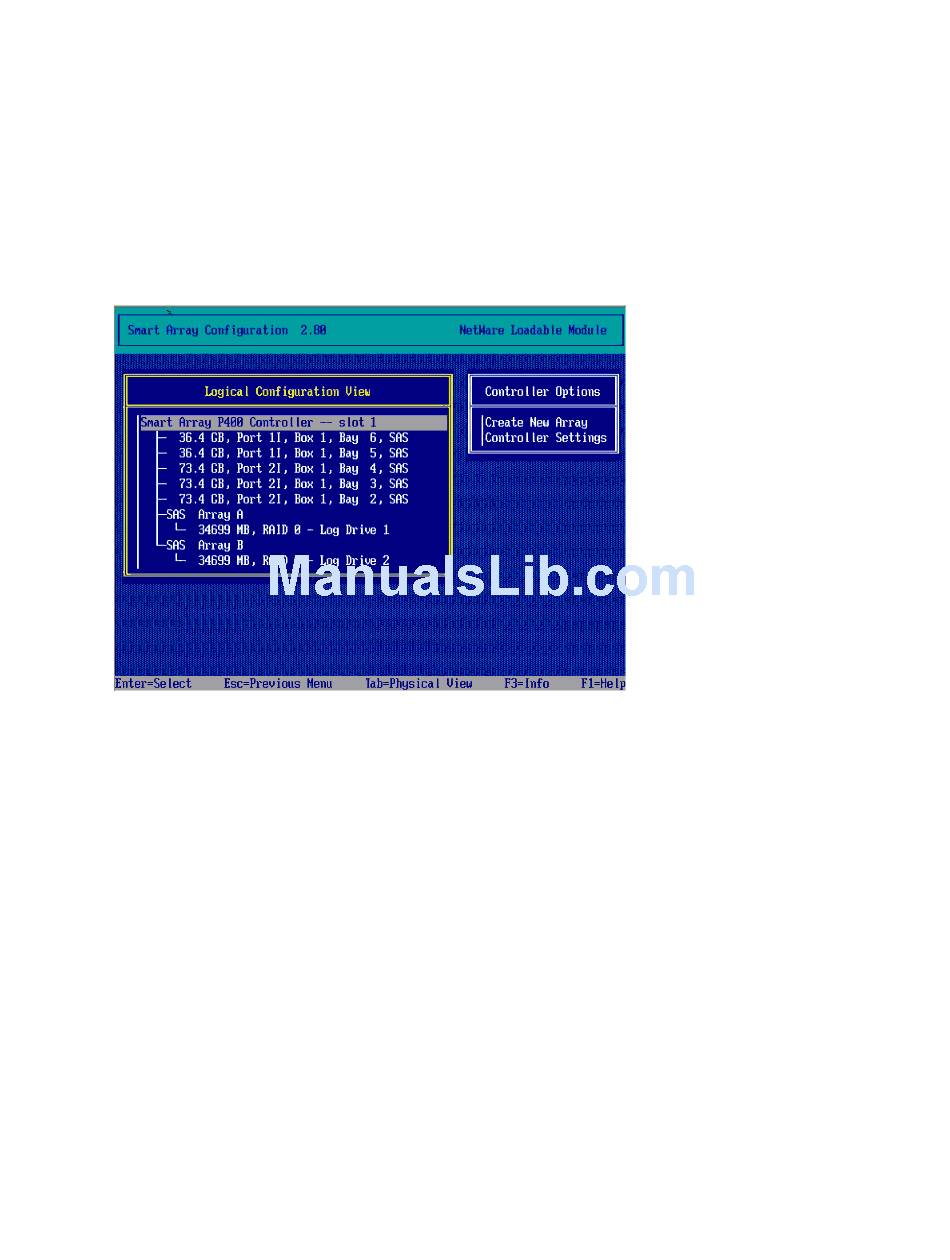

When CPQONLIN opens in manual configuration mode, the screen displays two panels.
•
The main panel is the Logical Configuration View panel, which shows the selected controller and a
tree of all arrays, logical drives, and unassigned physical drives that are connected to the controller.
(To toggle to the physical configuration view, press the Tab key.)
•
The secondary panel displays a menu of configuration options
page 15) for the item that is highlighted in the Logical Configuration View panel.
To begin the configuration process, scroll the highlight to the item listed in the main panel that you want to
configure and then press the Enter key. The highlight jumps to the secondary panel, where you can
continue the configuration process using the same method (scroll to a menu item, and then press the Enter
key). To return the highlight to the previous panel at any time in the configuration process, press the Esc
key.
For help, press the F1 key.
Detailed procedures for common tasks are described in "Typical manual configuration procedures (on
page 16)."
Menu options in CPQONLIN
Menu options are visible only if they are applicable. For example, if you highlight the controller in the
Logical Configuration View panel and the controller does not have any unassigned physical drives, the
Controller Options menu does not display the Create New Array menu option.
•
Controller Options menu (appears in the secondary panel when the controller is highlighted in the
Logical Configuration View panel)
("Menu options in
HP Online Array Configuration Utility for NetWare 15
CPQONLIN" on
