IP CAMERA USER MANUAL
4.5.7 RTSP
RTSP is used to stream video/audio using the shared protocol. v4.2 is also supporting RTSP
using Multicast protocol.

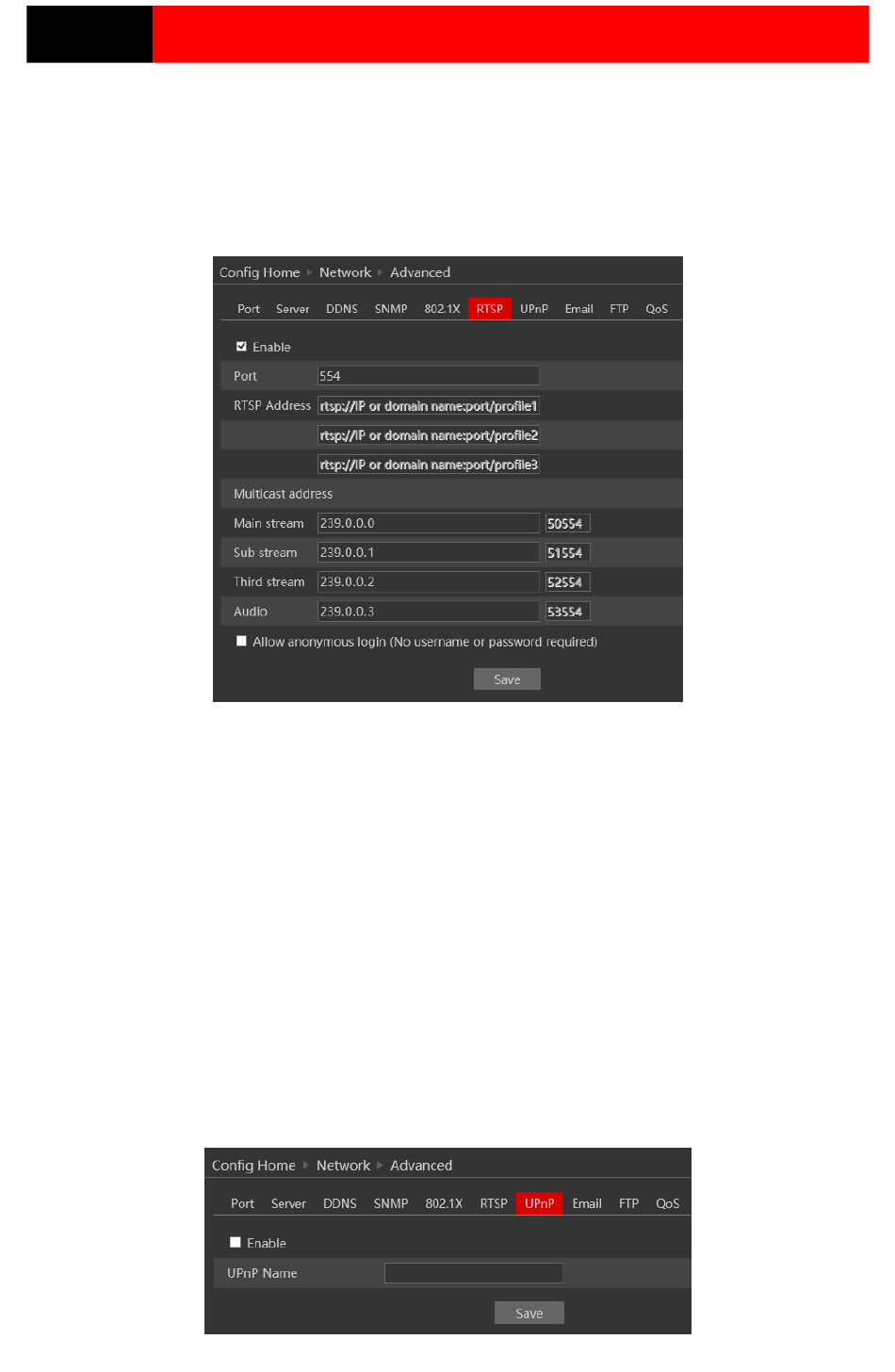

Go to "Network"→ "RTSP" interface as shown below.
1. Enable the RTSP if required.
2. RTSP Port: Access Port of the streaming media. The default port is 554.
3. RTSP Address: each of the streams have a unique RTSP address. Input the desired address
into your RTSP player.
Notice that the camera also support multicast addresses that can be used as well for supporting
players.
4. Enabling "Allow anonymous login" will authorize RTSP connection without the need for
username/password.
5. Click "Save" to confirm and save settings.
4.5.8 UPnP
Go to "Network"→ "UPnP" interface as shown below.
Select "Enable UPnP" and then input friendly name.
