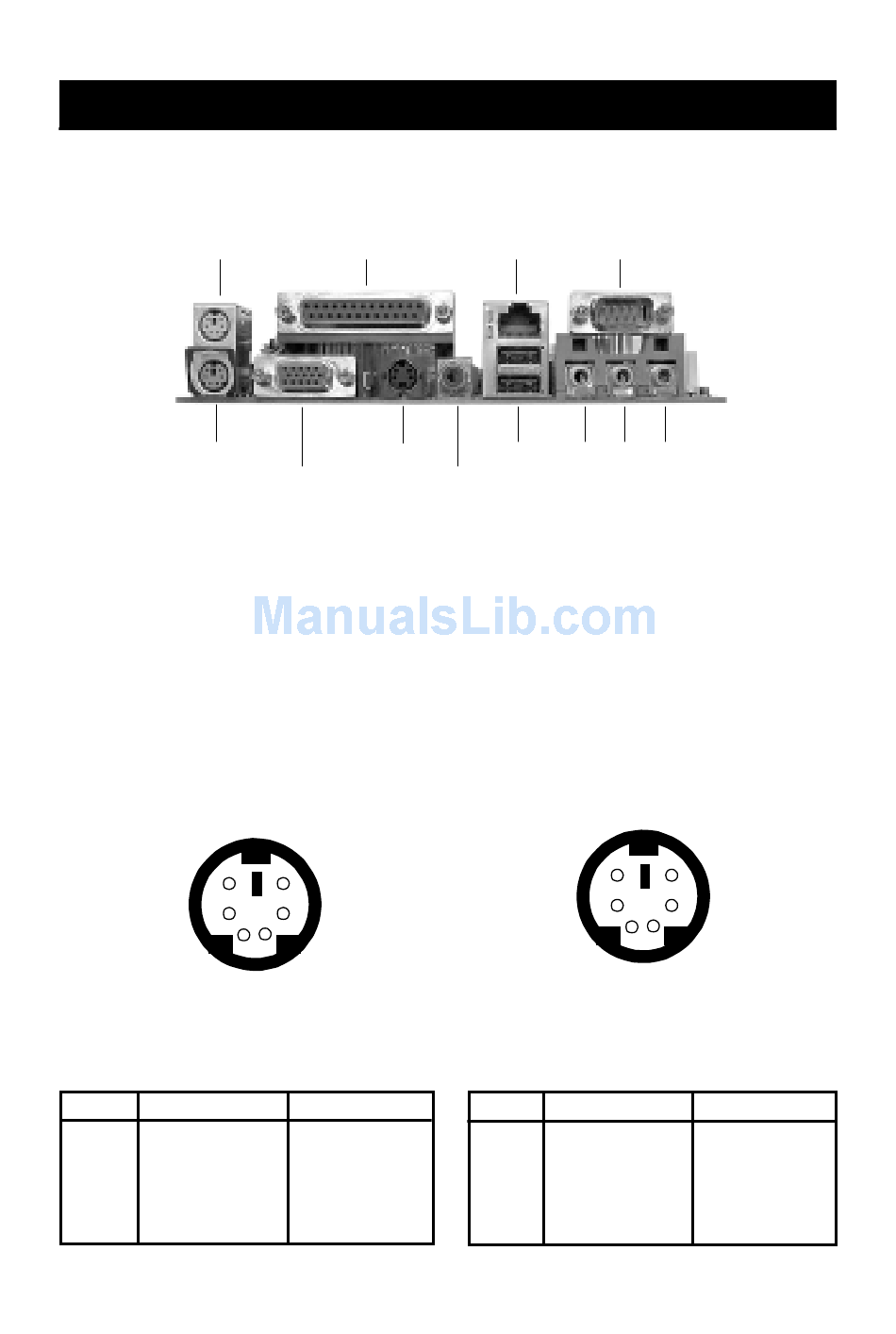

The back panel of the VIA EPIA-V Mini-ITX Mainboard contains the follow-
ing connectors:
PS/2 Mouse
PS/2 Keyboard
Mouse Connector: JMS1
The mainboard provides a standard
PS/2 mouse connector for attaching
a PS/2 mouse. You can plug a PS/2
mouse directly into this connector.
The connector location and pin as-
signments are as follows:
6
4
2
PS/2 Mouse (6-pin Female)
Pin Definition
PIN
SIGNAL
1
Mouse DATA
2
NC
3
GND
4
VCC
5.
Mouse Clock
6.
NC
Back Panel
LPT Connector
S-Video Port
CRT Connector
S / P DIF Port
5
3
1
DESCRIPTION
Mouse DATA
No connection
Ground
+5V
Mouse clock
No connection
RJ-45 Port
COM Port
USB Ports
Line
Out
RCA Video
or
Connectors)
Keyboard Connector: JKB1
The mainboard provides a standard PS/
2 keyboard connector for attaching a
PS/2 keyboard. You can plug a PS/2
keyboard directly into this connector.
6
4
2
PS/2 Keyboard (6-pin Female)
Pin Definition
PIN
SIGNAL
1
Keyboard DATA
2
NC
3
GND
4
VCC
5.
Keyboard Clock
6.
NC
2-7
Hardware Setup
Line
Mic
In
In
(Audio
5
3
1
DESCRIPTION
Keyboard DATA
No connection
Ground
+5V
Keyboard Clock
No connection
