The Advanced Chipset Features menu is used for optimizing the chipset
functions.
Note: Change these settings only if you are familiar with the chipset.
AGP Aperture Size
This setting controls how much memory space can be allocated to
AGP for display purposes. The aperture is a portion of the PCI
memory address range dedicated to graphics memory address
space. Host cycles that hit the aperture range are forwarded to the
AGP without any translation. Settings: 4MB, 8MB, 16MB, 32MB,
64MB, 128MB, and 256MB.
CPU & PCI Bus Control

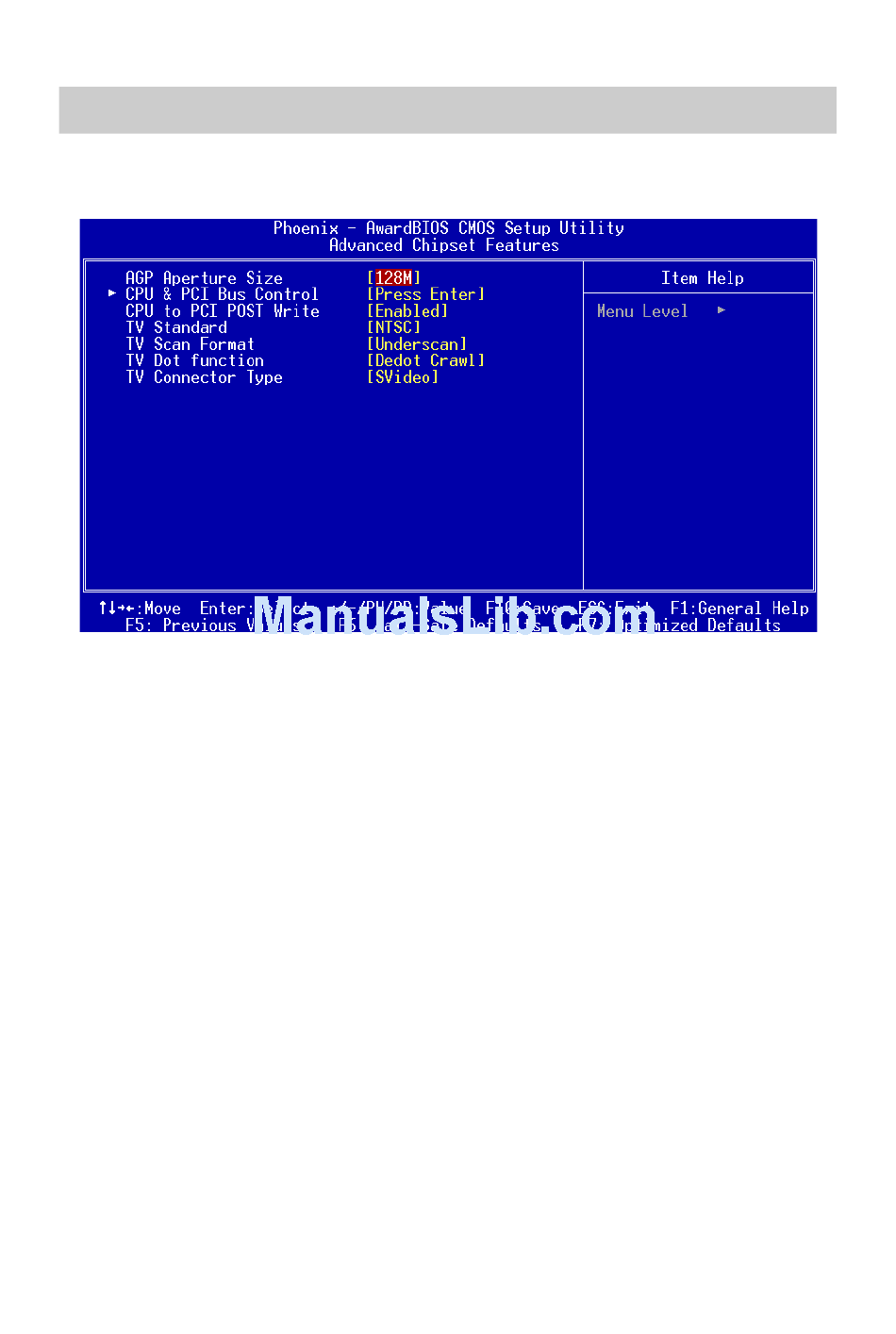

Press <Enter> to enter the sub-menu and the screen at the next
page would appear:
Advanced Chipset Features
3-11
BIOS Setup
