- Page 1 Operating Guide VB6002-Series Mini-ITX Mainboard November 16, 2006 Version 1.01...
-
Page 2: Table Of Contents
VB6002-Series Operating Guide Table of Contents Table of Contents..................................... i VIA VB6002-Series Overview................................ 1 VIA VB6002-Series Layout................................2 VIA VB6002-Series Specifications..............................3 VIA VB6002 Processor SKUs ................................ 4 VIA VN800 Chipset Overview ............................... 5 VIA VB6002-Series I/O Back Panel Layout ..........................6 VIA VB6002-Series Layout Diagram &... -
Page 3: Via Vb6002-Series Overview

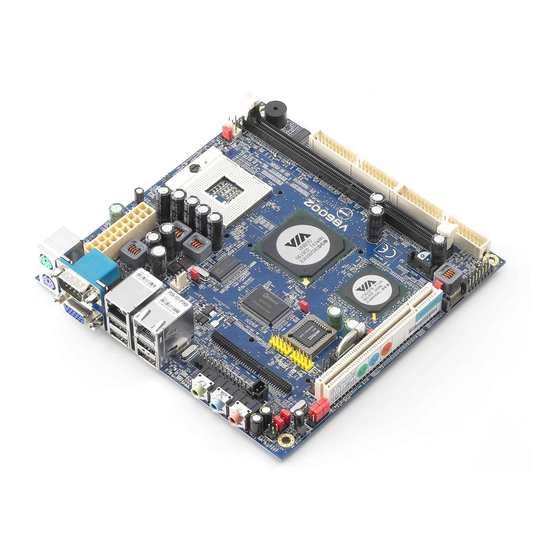

VB6002-Series Operating Guide VIA VB6002-Series Overview The VIA VB6002-Series Mini-ITX Mainboard is an ultra compact native x86 platform optimized for today's demanding embedded and productivity applications. The mainboard is based on the VIA VN800 chipset featuring an embedded hardware MPEG-2 accelerator and integrated VIA UniChrome™ Pro 2D/3D graphics for rich digital media performance. -
Page 4: Via Vb6002-Series Layout
VB6002-Series Operating Guide VIA VB6002-Series Layout November 16, 2006 - 2 - Version 1.01... -
Page 5: Via Vb6002-Series Specifications
VB6002-Series Operating Guide VIA VB6002-Series Specifications Model Name VB6002 Processor Intel Pentium-M/Celeron-M Socket 479 Processor Chipset - VIA VN800 North Bridge - VIA VT8237R-Series South Bridge System Memory - 1 DDR2 533/400 DIMM slot - Up to 1GB memory size - Integrated VIA UniChrome™... -
Page 6: Via Vb6002 Processor Skus
VB6002-Series Operating Guide VIA VB6002 Processor SKUs The VIA VB6002-Series is available in flexible speed grades and utilizes the most efficient Intel Pentium- M / Celeron-M processor. The verified CPU kinds are listed as follows: • Intel® Pentium® M Processor with 2-MB L2 Cache and 533-MHz Front Side Bus 780 (clock speed 2.26GHz) –... -
Page 7: Via Vn800 Chipset Overview
VB6002-Series Operating Guide VIA VN800 Chipset Overview The VIA VN800 Chipset is designed to enable high quality digital video streaming and DVD playback in a new generation of fanless, small form factor PCs and IA devices. The VN800 features the embedded VIA UniChrome™... -
Page 8: Via Vb6002-Series I/O Back Panel Layout
VB6002-Series Operating Guide VIA VB6002-Series I/O Back Panel Layout The VB6002’s ultra compact 17cm x 17cm, integrated design supports all the standard legacy x86 connectivity options as well as PS2 Mouse port, PS2 Keyboard port, VGA port, COM port, RJ45 LAN ports, USB 2.0 ports and AC’97 audio jacks. -
Page 9: Via Vb6002-Series Layout Diagram & Mounting Holes
VB6002-Series Operating Guide VIA VB6002-Series Layout Diagram & Mounting Holes November 16, 2006 - 7 - Version 1.01... -
Page 10: Via Vb6002-Series Layout Diagram & Height Distribution
VB6002-Series Operating Guide VIA VB6002-Series Layout Diagram & Height Distribution November 16, 2006 - 8 - Version 1.01... -
Page 11: Power Consumption
VB6002-Series Operating Guide Power Consumption Power consumption tests were carried out comparing the VIA VB6002 running with Intel Pentium-M 2.26GHz and Celeron-M 1.5GHz processors. The following tables are a comprehensive breakdown of the VB6002 platform’s voltage, amp and wattage values while running common system applications. VIA VB6002 1.5 GHz A. -
Page 12: Via Vb6002 2.26 Ghz
VB6002-Series Operating Guide E. Run C.C. Winstone 2004 Measured Voltage Measured Amp. Watts Main Board +3.3V 3.341 1.237 4.133 Main Board +5V 4.907 2.996 14.701 Main Board 5VSB 5.052 0.169 0.854 Main Board +12V 12.100 0.193 2.335 Main Board Power Consumption 22.023 F. - Page 13 VB6002-Series Operating Guide D. Idle Measured Voltage Measured Amp. Watts Main Board +3.3V 3.359 1.231 4.135 Main Board +5V 4.929 2.831 13.954 Main Board 5VSB 5.070 0.173 0.877 Main Board +12V 12.127 0.199 2.413 Main Board Power Consumption 21.379 E. Run C.C. Winstone 2004 Measured Voltage Measured Amp.
-
Page 14: Power Specifications
VB6002-Series Operating Guide Power Specifications The VB6002 utilizes an industry standard 20-pin ATX main connector to the power supply. Due to the VB6002 platform’s ultra low power requirements a 90 – 120 Watt ATX power supply is ample for even the heaviest of multimedia system applications. -
Page 15: Via Vb6002-Series Microsoft And Linux Driver Support
VIA VB6002-Series Microsoft and Linux Driver Support Microsoft Driver Support VIA VB6002 series offers full support for the complete range of Microsoft operating systems. For standard operating systems, Windows 98/Me/2000/XP latest drivers downloads can be found in the VEPD website at www.viaembedded.com. -
Page 16: Contact
VB6002-Series Operating Guide Contact For more information on the VIA VB6002-Series Mini ITX Mainboard contact your sales representative or visit our website at www.viaembedded.com Taiwan 440 Mission Court, Suite 220 1F, No. 531, Chung Cheng Road Fremont, CA 94539 Hsin Tien, Taipei 231 Tel: (510) 683 3300 Tel: (02) 2218 5452 Fax: (510) 687 4654...
