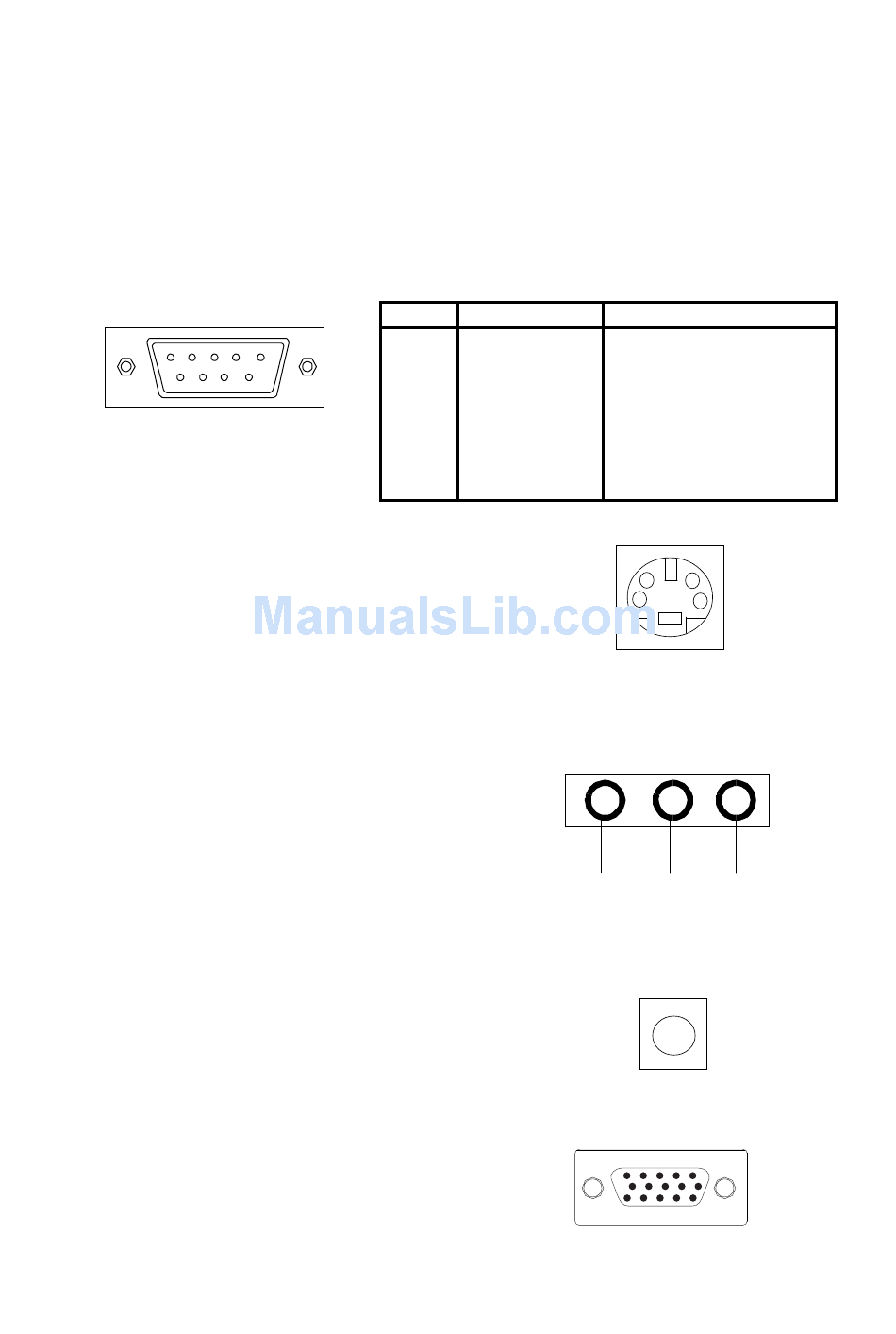

Serial Port Connectors: COM 1
The mainboard offers one 9-pin male Serial Port connector (COM 1) . You
can attach a serial mouse or other serial devices directly to this port.
1 2 3 4 5
6 7 8 9
9-Pin Male DIN Connectors

S-Video Port

This port allows S-Video output in
NTSC and PAL modes.

Audio Port Connectors

Line-Out is a connector for speakers
or headphones. The Line-In connec-
tor can be used for an external CD
player, tape player, or other audio
devices. The Mic-In connector is for
connecting microphones.

RCA Video or S/PDIF Port

This dual function port may be used ei-
ther as a RCA Video port or as a S/
PDIF port.

VGA Out

A DB-15 pin female connector that
connects to a VGA monitor.
Pin Definition
PIN
SIGNAL
1
DCD
2
SIN
3
SOUT
4
DTR
5.
GND
6.
DSR
7.
RTS
8.
CTS
9.
RI
1/8" Stereo Audio Connectors
Line Out
2-9
Hardware Setup
DESCRIPTION
Data Carry Detect
Serial In or Receive Data
Serial Out or Transmit Data
Data Terminal Ready
Ground
Data Set Ready
Request To Send
Clear To Send
Ring Indicate
Line In MIC
(2 Channel)
