Chapter 2

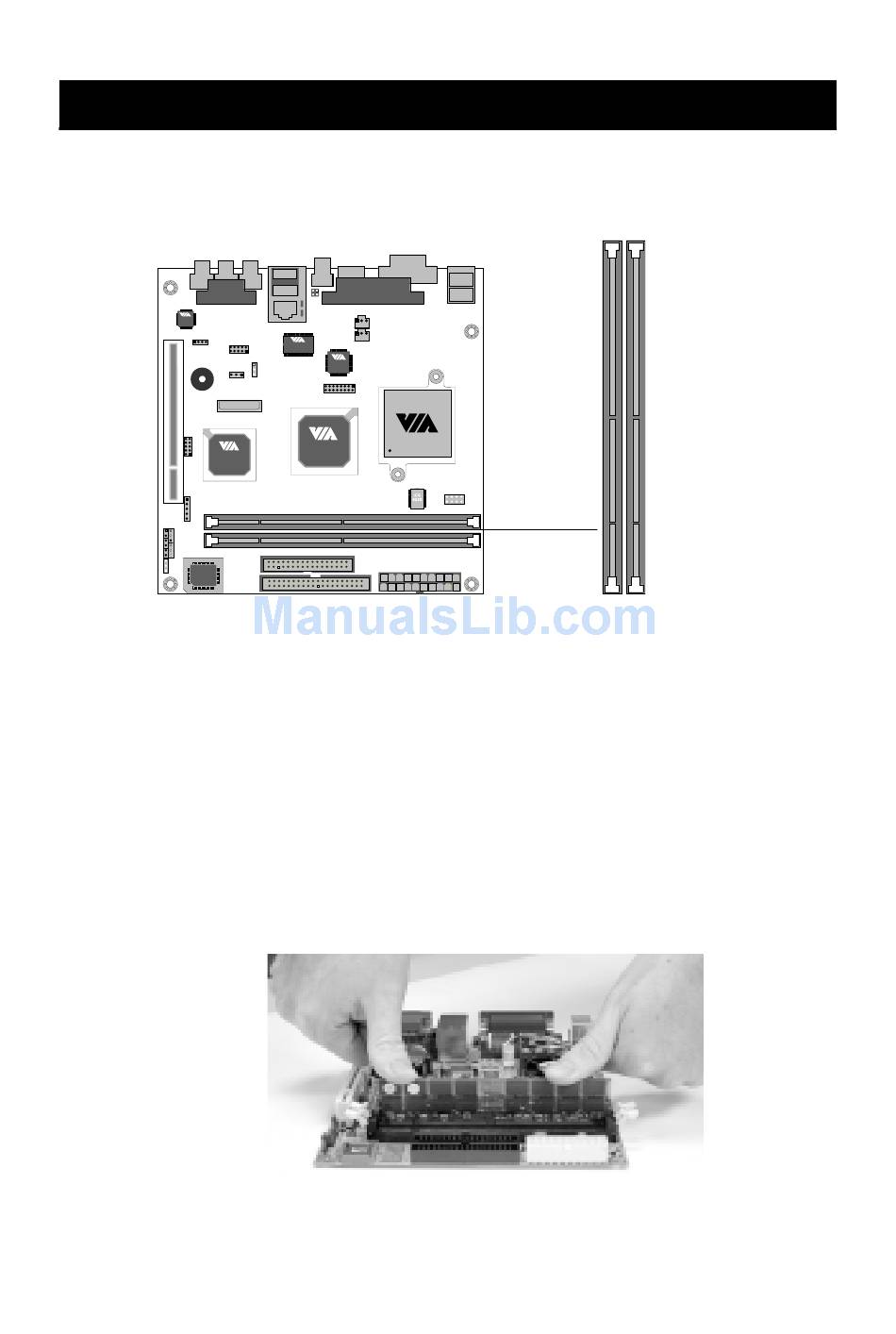

Memory Installation

The VIA EPIA-V Mini-ITX Mainboard provides two 168-pin DIMM slots
for PC 100/133 SDRAM memory modules. To operate properly, at least one
module must be installed.
DIMM 1 & DIMM 2

SDRAM Module Installation Procedures

1.) Push the white retaining latches at either end of the DIMM slot outwards.
2.) Align the SDRAM module with the corresponding notches on the DIMM
slot. The modules will only fit if placed in the correct position.
2.) With both hands, press the SDRAM module down into the DIMM slot so
that the white retaining latches rotate up and secure the module in place (see
picture below).
2-4
