Summary of Contents for VIA Technologies VB7002

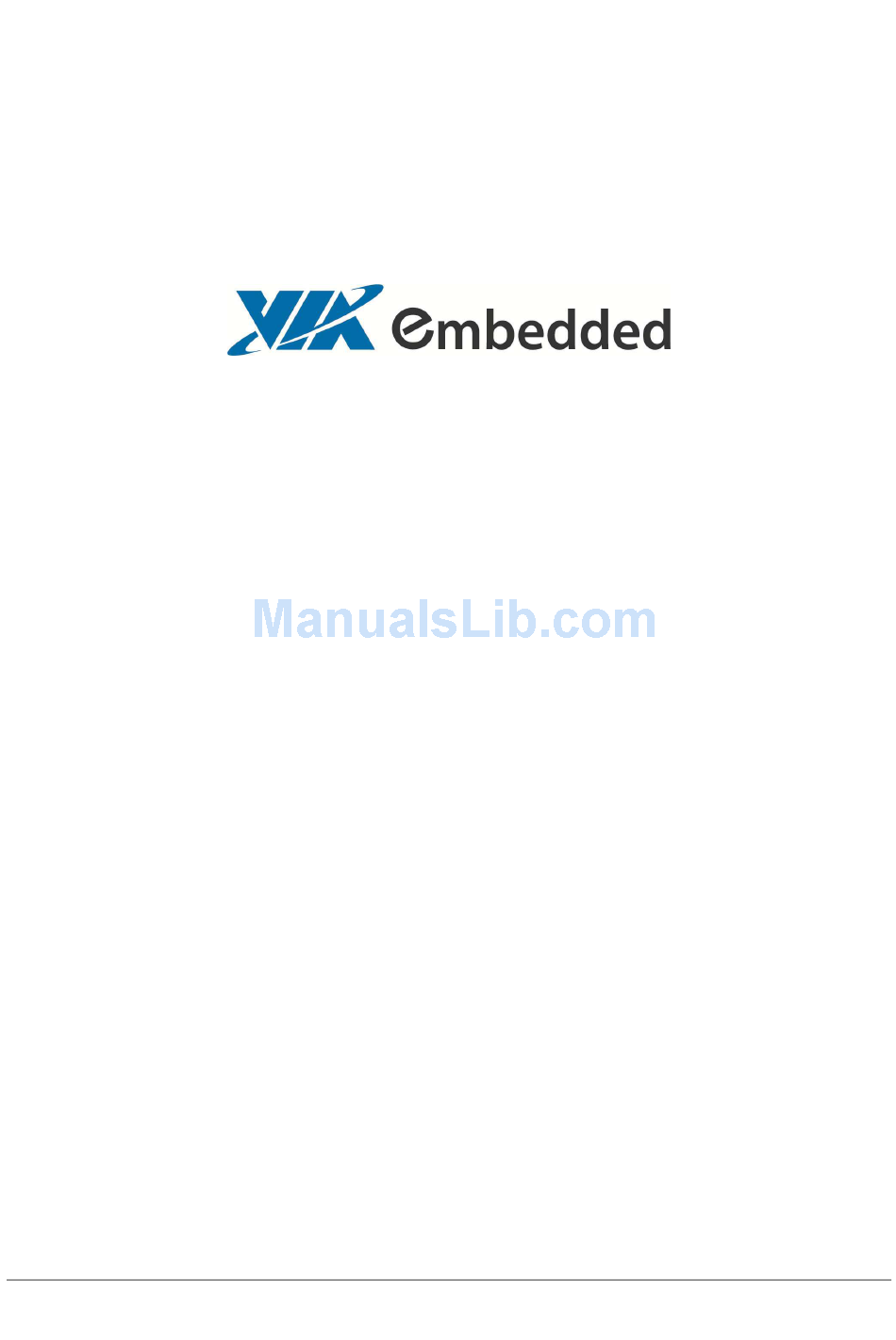

- Page 1 Operating Guide VB7002 Mini-ITX Mainboard March 30, 2018 Version 1.01...
-
Page 2: Table Of Contents
D. Idle State ........................9 E. Running C.C. Winstone 2004 ..................10 F. S3 Mode ........................10 Power Specifications ......................11 VIA VB7002 Microsoft and Linux Driver Support ..............12 Microsoft Driver Support....................12 Linux Driver Support ......................12 Contact ..........................13... -
Page 3: Via Vb7002 Overview
StepAhead™ Technology Suite, and VIA TwinTurbo™ technology. The VIA VB7002 includes sizeable support of up to 4 GB of 667 MHz DDR2 memory and native support for SATA (3 Gbps) storage devices. The VIA VB7002 provides support for high fidelity audio with its included VIA VT1708A High Definition Audio codec. -
Page 4: Via Vb7002 Layout
VB7002 Operating Guide VIA VB7002 Layout March 30, 2018 - 2 - Version 1.01... -
Page 5: Via Vb7002 Specifications
VB7002 Operating Guide VIA VB7002 Specifications Model Name VB7002-15 ® Processor VIA C7 -D 1.5 GHz NanoBGA2 processor with FSB 400 MHz Chipset - VIA CN896 North Bridge - VIA VT8237S South Bridge System Memory - 2 x DDR2 400 / 533 / 667 DIMM slot... -
Page 6: Via Vb7002 Processor Skus
VB7002 Operating Guide VIA VB7002 Processor SKUs The VIA VB7002 is available in two speed grades as follows: • ® 1.5 GHz VIA C7 -D NanoBGA2 Processor March 30, 2018 - 4 - Version 1.01... -
Page 7: Via Cn896 Chipset Overview
VB7002 Operating Guide VIA CN896 Chipset Overview The VIA CN896 Chipset is designed to enable high quality digital video streaming and DVD playback in a new generation of fanless, small form factor PCs and IA devices. The VIA CN896 North Bridge... -
Page 8: Via Vb7002 I/O Back Panel
VB7002 Operating Guide VIA VB7002 I/O Back Panel The VIA VB7002 mainboard comes in the ultra compact 17 cm x 17 cm Mini-ITX form factor. Its integrated design supports most of the standard legacy x86 connectivity options including PS/2 mouse port, PS/2 keyboard port, COM port, VGA port, RJ45 LAN ports, USB 2.0 ports, and audio jacks. -
Page 9: Via Vb7002 Dimensions
VB7002 Operating Guide VIA VB7002 Dimensions March 30, 2018 - 7 - Version 1.01... -
Page 10: Via Vb7002 Height Distribution
VB7002 Operating Guide VIA VB7002 Height Distribution March 30, 2018 - 8 - Version 1.01... -
Page 11: Power Consumption
VB7002 Operating Guide Power Consumption Power consumption tests were performed on the VIA VB7002. The following tables are a comprehensive breakdown of the voltage, amp and wattage values while running common system applications. VIA VB7002-15 A. Playing DVDs with PowerDVD 5.0... -
Page 12: Running C.c. Winstone 2004
VB7002 Operating Guide E. Running C.C. Winstone 2004 Measured Voltage Measure Amp Watts Main Board +3.3V 3.319 0.961 3.190 Main Board +5V 5.234 3.078 16.110 Main Board 5VSB 5.011 0.194 0.972 Main Board +12V 12.778 0.139 1.776 Total Power Consumption 22.048... -
Page 13: Power Specifications
VB7002 Operating Guide Power Specifications The VIA VB7002 mainboard utilizes an industry standard 20-pin ATX power connector for connecting to the power supply. Due to its ultra low power requirements, a 90 – 120 Watt ATX power supply is ample for even the heaviest of multimedia system applications. -
Page 14: Via Vb7002 Microsoft And Linux Driver Support
ICROSOFT RIVER UPPORT The VIA VB7002 mainboard is compatible with Microsoft operating systems. The latest Windows 2000 and Windows XP drivers can be downloaded from the VEPD website at www.viaembedded.com. For embedded operating systems (Windows CE.NET and Windows XP Embedded), the related drivers can be found in the VIA Arena website at www.viaarena.com. -
Page 15: Contact
VB7002 Operating Guide Contact For more information on the VIA VB7002 Mini-ITX mainboard contact your sales representative or visit our website at www.viaembedded.com MERICA 940 Mission Court Fremont, CA 94539 Tel: (510) 683 3300 Fax: (510) 687 4654 Email: vpsd_sales@viatech.com TAIWAN 1F, No.
