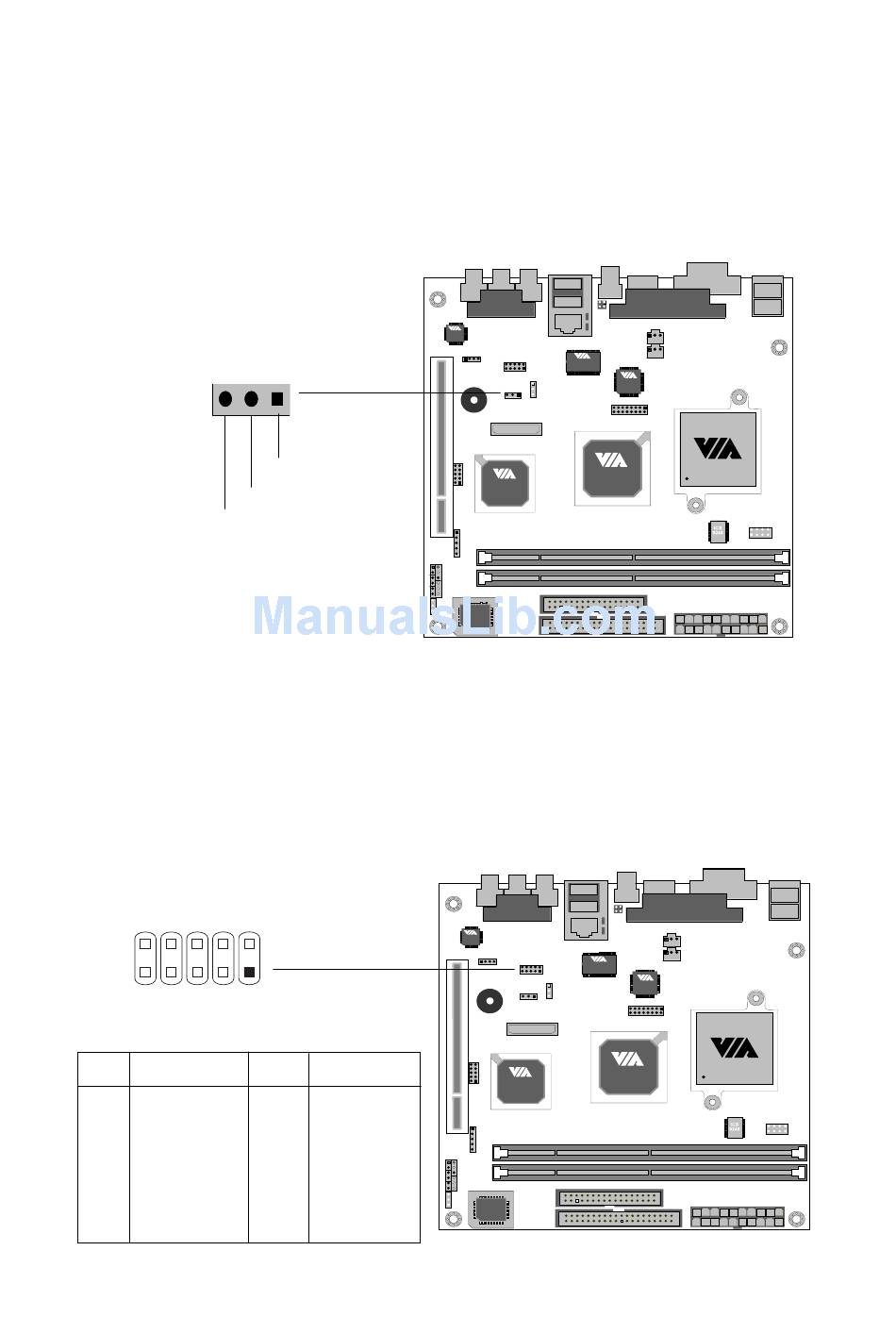

Wake On Modem Connector (J8)

This connector (J8) allows you to connect to a modem with the Wake On
Modem function. The connector will power up the system when a signal is
received through the modem.
WOM
USB Port 2&3 Connector (F_USB)
This connector allows you to connect an additional two Universal Serial Bus
(USB) ports, in case the two USB ports on the back panel are not sufficient.
To utilize the additional two USB connections, please plug the USB 2-port
module onto this pin-header.
2
1
F_USB Pin Definition
PIN SIGNAL
1 VCC
3 USB2-
5 USB2+
7 GND
9 NC
1
+5V_SB
GND
10
9
PIN SIGNAL
2 VCC
4 USB3-
6 USB3+
8 GND
10 GND
2-13
Hardware Setup
