Hardware Setup

Front Panel Connector (J3)

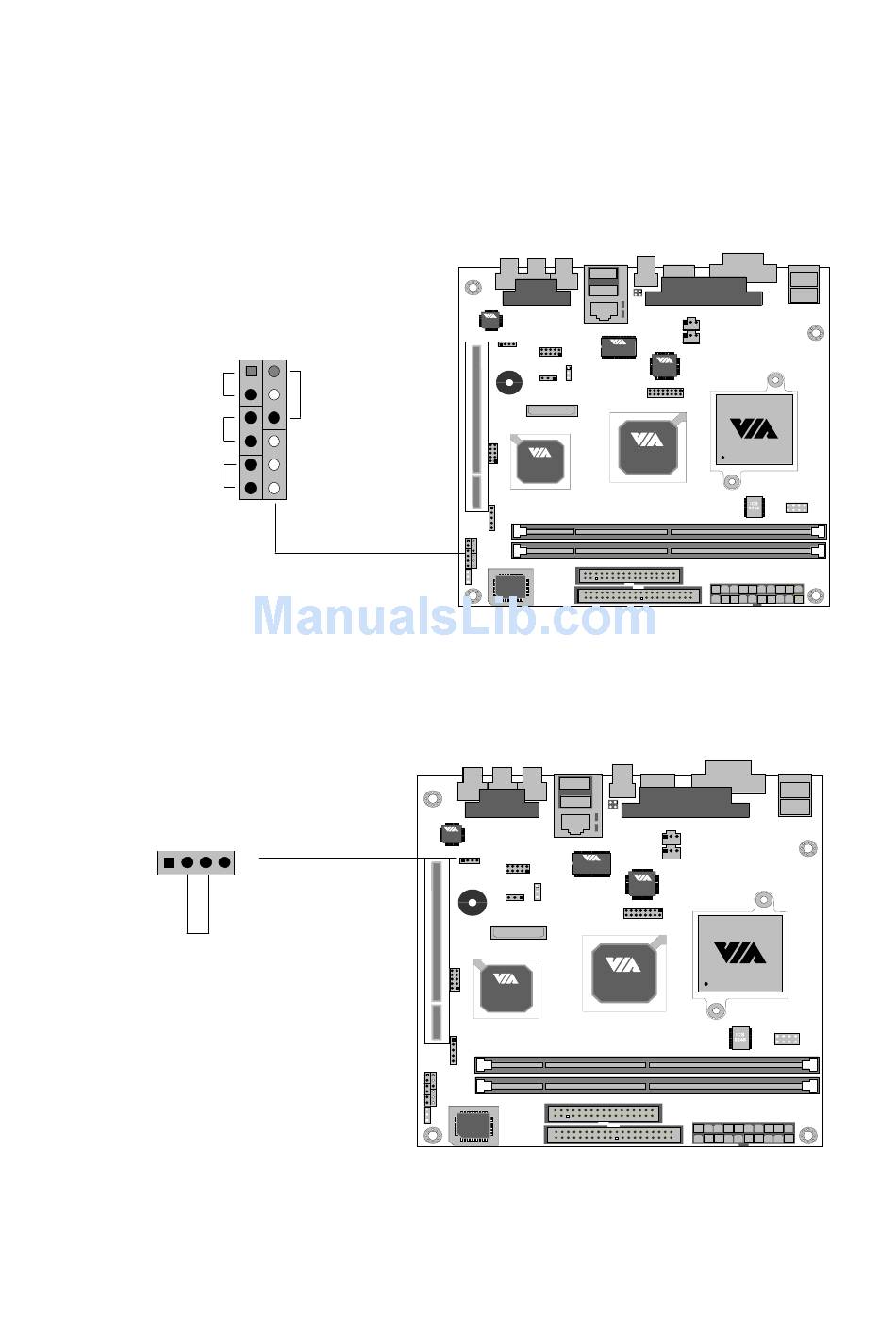

The J3 front panel connectors allow you to connect the Power Switch, Reset
Switch, Power LED and HDD LED to the system case.
1 2
HDD LED
Power LED
Power Switch
Reset
12
11

CD-ROM Line In Connector (J7)

The J7 internal CD-ROM Line In Connector allows you to connect and re-
ceive audio input from a device such as a CD-ROM.
1
L
R
GND
2-11
