The VIA EPIA-V Mini-ITX Mainboard provides the following connectors:
Hard Disk Connectors: IDE1
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 33/66/100
controller that provides PIO mode 0~4, Bus Master, and Ultra DMA 33/66/
100 functions. You can connect up to two hard disk drives, CD-ROM, LS-
120 and other devices. These connectors utilize the provided IDE hard disk
cable.

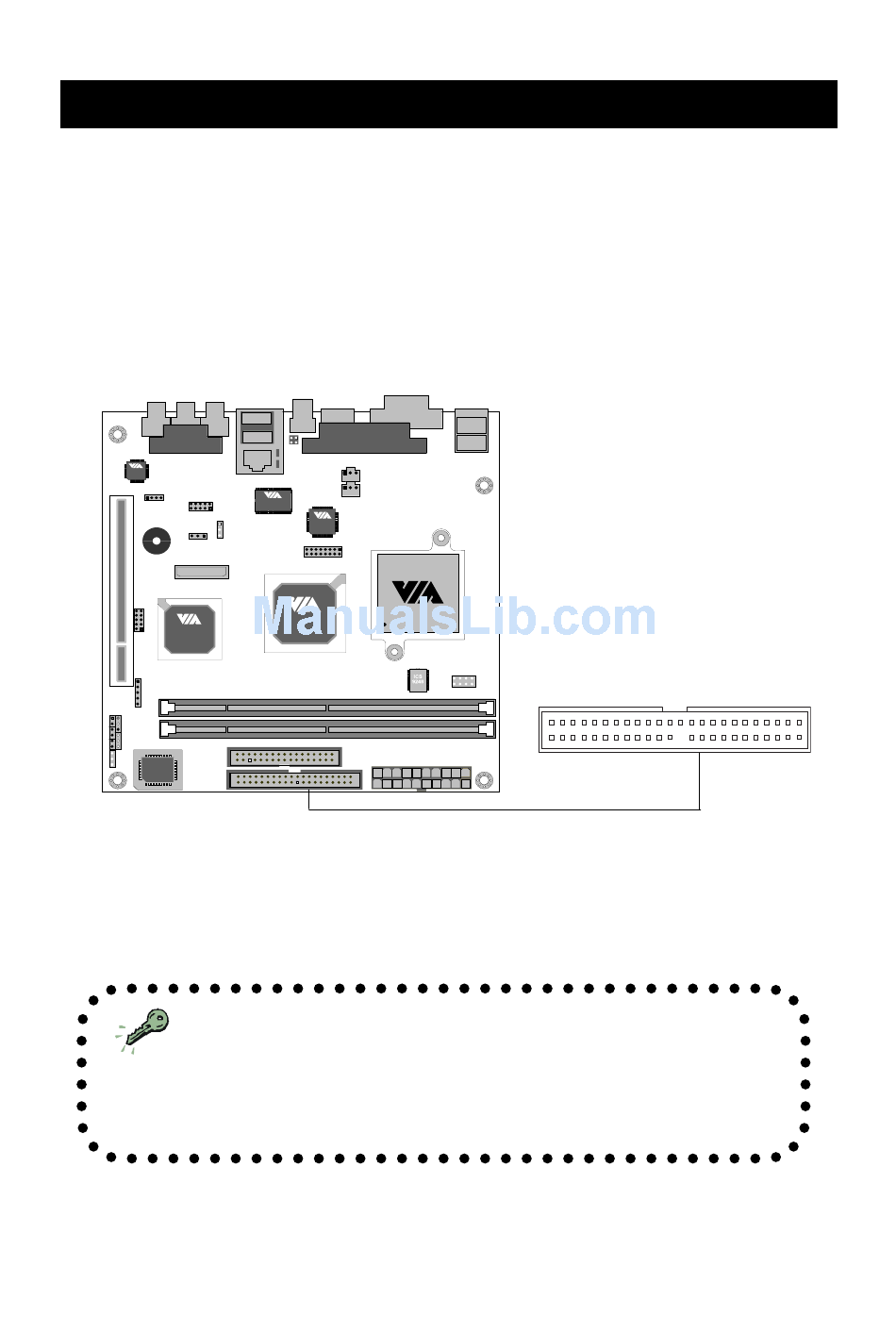

IDE1 (Primary IDE Connector)
The first hard drive should always be connected to IDE1. IDE1 can
connect a Master and a Slave drive.
TIP: If you install two hard disks on cable, you must
configure the second drive to Slave mode by setting its jumper.
Refer to the hard disk documentation supplied by hard disk
vendors for jumper setting instructions.
Connectors
2-10
IDE 1
