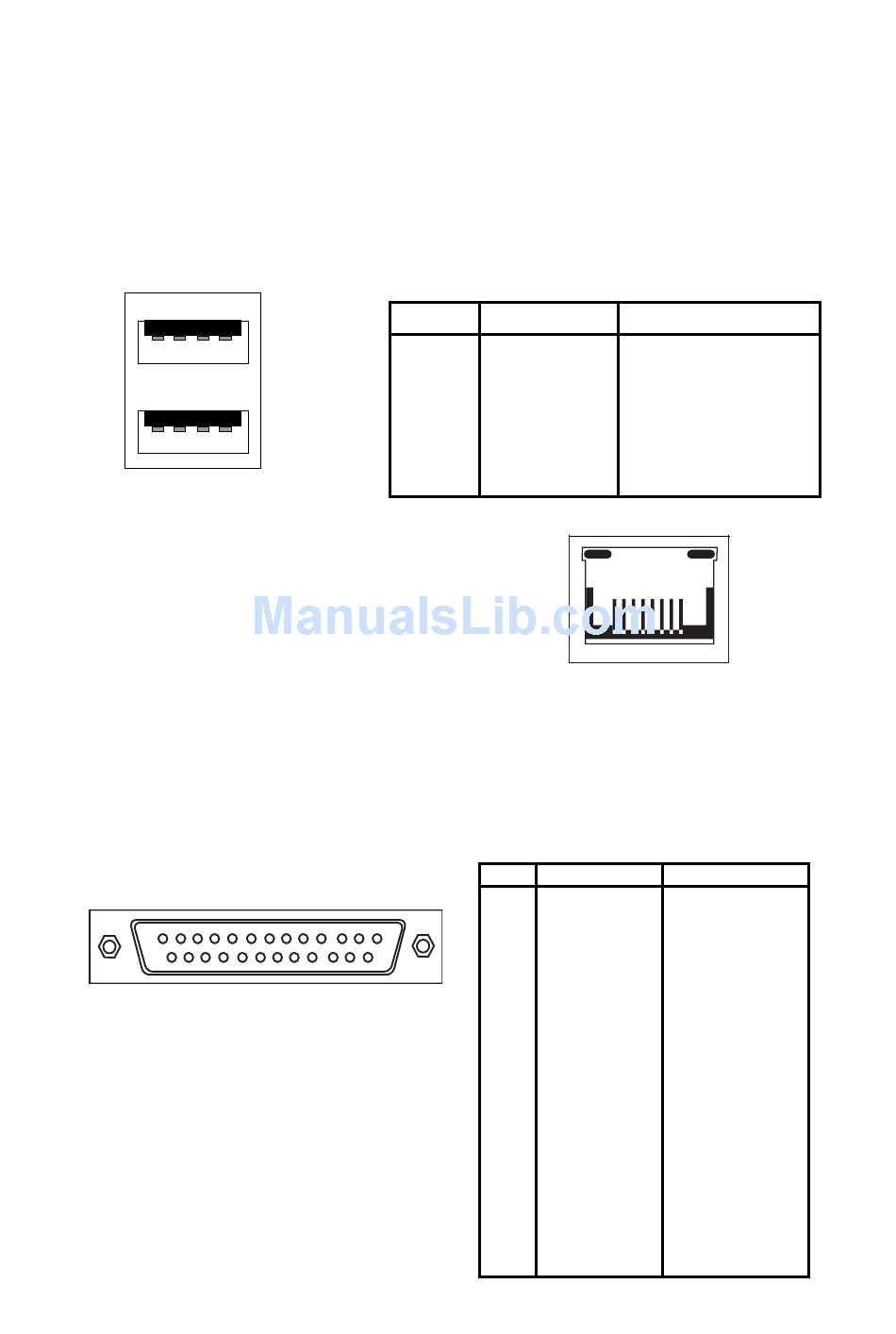

USB Port Connectors

The mainboard provides 2 USB 1.1 ports (plus 1 pin-headers for up to 2
additional USB connections). USB-compatible devices can be plugged di-
rectly into these ports.
5 6 7 8
1 2 3 4
USB Ports

RJ-45 NIC Port

The mainboard provides one standard RJ-
45 port for connection to the Local Area
Network (LAN). You can connect a network
cable to the LAN port.

Parallel Port Connector: LPT1

The mainboard provides a 25-pin female connector for LPT (parallel port).
A parallel port is a standard printer port that supports Enhanced Parallel Port
(EPP) and Extended Capabilities Parallel Port (ECP) modes.
13
25
PIN SIGNAL
1 VCC
2 -Data 0
3 +Data 0
4 GND
5. VCC
6. -Data 1
7. +Data 1
8. GND
PIN
1
1
2
3
4
5
6
7
14
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
2-8
Pin Definition
DESCRIPTION
+5V
Negative Data Channel 0
Positive Data Channel 0
Ground
+5V
Negative Data Channel 1
Positive Data Channel 1
Ground
Pin Definition
SIGNAL DESCRIPTION
STROBE Strobe
DATA0 Data0
DATA1 Data1
DATA2 Data2
DATA3 Data3
DATA4 Data4
DATA5 Data5
DATA6 Data6
DATA7 Data7
ACK# Acknowledge
BUSY Busy
PE Paper End
SELECT Select
AUTO FEED# Automatic Feed
ERR# Error
INIT# Initialize Printer
SLIN# Select In
GND Ground
GND Ground
GND Ground
GND Ground
GND Ground
GND Ground
GND Ground
GND Ground
