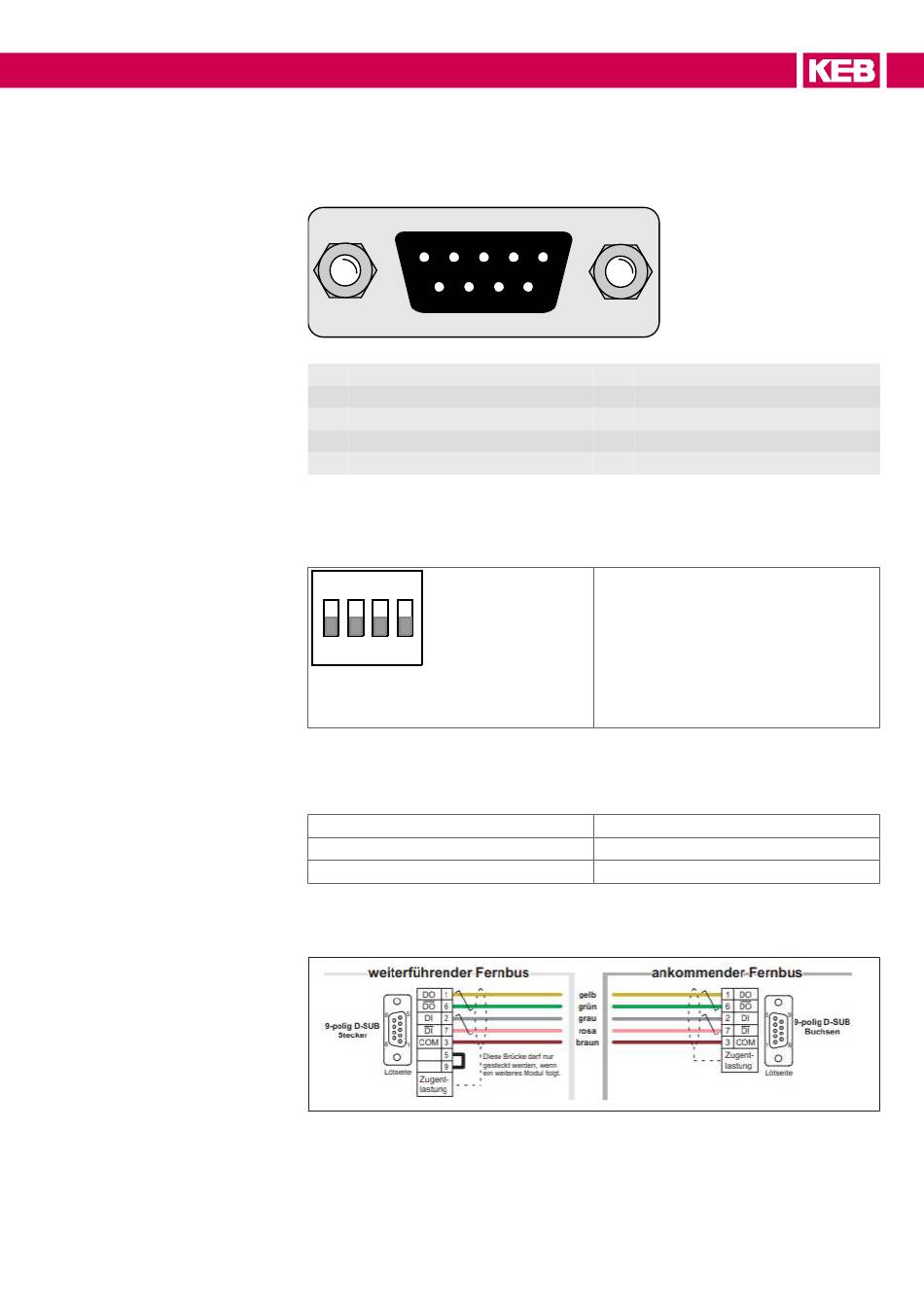

6.11.1 INTERBUS DIP switch S1
6.11.2 INTERBUS remote bus cable
ma_ca_c6-compact3-inst-20372037_en
Output
D-SUB DE-9 (connector)
5 4 3 2 1
Front view
1 2 3 4 5
6 7 8 9
9 8 7 6
Fig. 20: X11 INTERBUS output
1 DO
3 COM
5 -
7 /DI
9 -
ON
1 2 3 4
Tab. 12: DIP switch 4-fold
Specification
Number of conductors
Conductor cross-section
Conductor resistance per 100 m
Tab. 13: Specification INTERBUS remote bus cable
Refer to the cable manufacturer's data sheet for further specifications.
Fig. 21: INTERBUS remote bus cable assignment
Electrical installation | 6
2 DI
4 -
6 /DO
8 -
SW1 Baud
off:
on:
SW2 size
off:
on:
SW3, SW4
reserved
3x 2-pair (twisted) with overall shielding
min. 0.2 mm²
max. 9,6 Ω
39
