3 | Product description
3.6 Description of the device
3.6.1 Front view
3.6.1.1 Model 1 and 3
3.6.1.2 Model 2
18
Terminal strip X5
X4 SD card slot
LED status indicators
X2 Ethernet
X1 EtherCAT

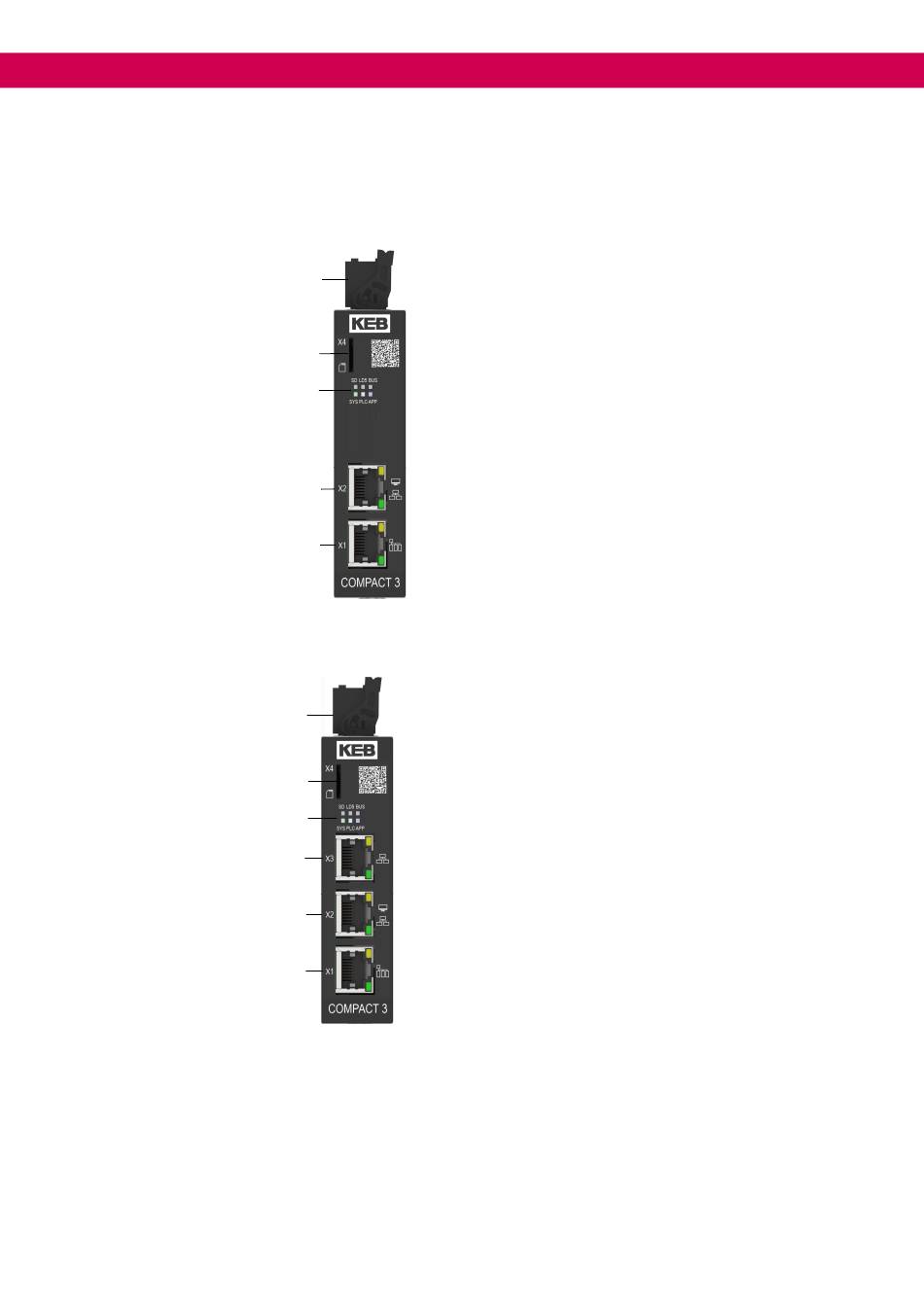

Fig. 1: C6 COMPACT 3 front view of models 1 and 3
Terminal strip X5
X4 SD card slot
LED status indicators
X3 Fast Ethernet (option)
X2 Ethernet
X1 EtherCAT
Fig. 2: C6 COMPACT 3 front view model 2
KEB Automation KG
ma_ca_c6-compact3-inst-20372037_en
