Instructions for Use
COMBILINE E6
Installation HF-Filter side-mounted Size 33
Translation of the original manual - Pre-Series
Document 20337731 EN 00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMBILINE E6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KEB COMBILINE E6

Summary of Contents for KEB COMBILINE E6

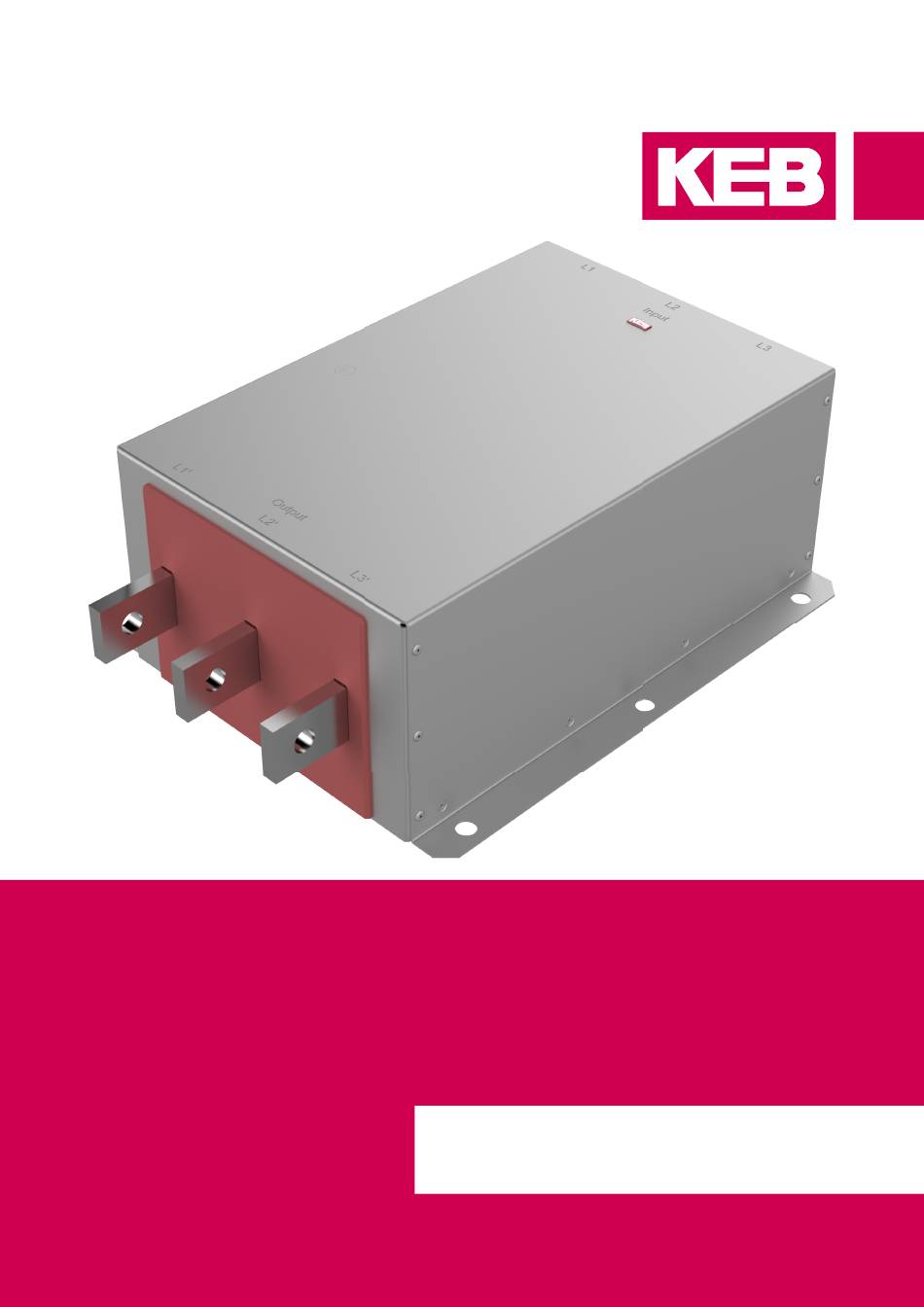

  • Page 1 Instructions for Use COMBILINE E6 Installation HF-Filter side-mounted Size 33 Translation of the original manual - Pre-Series Document 20337731 EN 00...
  • Page 2 Imprint KEB Automation KG Suedstraße 38, D-32683 Barntrup Germany Tel: +49 5263 401-0 • Fax: +49 5263 401-116 E-Mail: info@keb.de • URL: https://www.keb.de ma_dr_e6-hf-filter-nb-20337731_en Version 00 • Edition 25/04/2023...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents Introduction ..............................Markings..............................1.1.1 Warnings..........................1.1.2 Information notes ........................1.1.3 Symbols and markers ......................Laws and guidelines..........................Warranty and liability..........................Support..............................Copyright............................... Validity of this manual ........................... Target group............................General Safety Instructions.......................... Installation ............................. Electrical installation..........................
  • Page 4 Table of Contents KEB Automation KG Connection description.......................... 6.3.1 Earth connection screw ......................6.3.2 Copper bar ..........................Maintenance, service and disposal ......................Maintenance............................Service ..............................Disposal ..............................Certification ..............................EU Declaration of Conformity E4, E5, E6 ..................... UK Declaration of Conformity E4, E5, E6 .....................
  • Page 5 List of Figures List of Figures Fig. 1 Schematic diagram HF mains filter for IT, TN and TT systems ............. Fig. 2 33E6T60-3150_attenuation........................Fig. 3 Installation distances..........................Fig. 4 Dimensions 33E6T60-3150........................Fig. 5 Connection 3ph choke filter drive controller ................... Fig.
  • Page 6 List of Tables KEB Automation KG List of Tables Tab. 1 Fuse protection according to........................Tab. 2 Fuse protection according to UL Class J ....................Tab. 3 Fuse protection according to UL type gR / aR ..................Tab. 4 Interference suppression level 33E6T60-3150 ..................

  • Page 7: Introduction | 1

    Introduction | 1 1 Introduction The described devices, accessories, hardware and/or software are products of KEB Automation KG. The enclosed documents correspond to conditions valid at printing. Misprint, mistakes and technical changes reserved. 1.1 Markings 1.1.1 Warnings Certain operations can cause hazards during the installation, operation or there- after.

  • Page 8: Symbols And Markers

    1.2 Laws and guidelines KEB Automation KG confirms with the CE mark and the EU declaration of conform- ity, that our device complies with the essential safety requirements. The EU declaration of conformity can be downloaded on demand via our website.

  • Page 9: Copyright

    Copyrights are with KEB Automation KG and re- main valid in its entirety. Other wordmarks and/or logos are trademarks (™) or registered trademarks (®) of their respective owners.

  • Page 10: General Safety Instructions

    2 | General Safety Instructions KEB Automation KG 2 General Safety Instructions The products are developed and built according to the state of the art and recog- nized safety rules. Nevertheless, their use may create dangers to life and limb of the user or third parties or damage to the machine and other material property.

  • Page 11: Product Description | 3

    • Increasing the interference immunity of the drive controllers. 3.1 Intendend use The filters of the COMBILINE E6 series are only suitable for use in conjunction with drive controllers. They are intended for the installation into electrical systems or machines. Technical data and information for connection conditions shall be taken from the name- plate and from the instructions for use and must be strictly observed.

  • Page 12: Functional Description

    3 | Product description KEB Automation KG 10. digit Mains form TN, TT IT, TN, TT 11. digit Version Sequential numbering 3.4 Functional description 3.4.1 IT mains filter 3.4.1.1 Schematic diagram HF mains filter for IT, TN and TT systems ② ① ③...

  • Page 13: Technical Data | 4

    Technical data | 4 4 Technical data 4.1 Operating conditions 4.1.1 Climatic ambient conditions Storage Standard Class Notes Ambient temperature EN 60721-3-1 -25…55 °C Relative humidity EN 60721-3-1 5…95 % (without condensation) Storage height Max. 3000 m above Transportation Standard Class Notes Ambient temperature EN 60721-3-2 -25…70 °C Relative humidity...

  • Page 14: Electrical Operating Conditions

    Overload (60s) 150 % Power dissipation 110 W Construction and protection class IP00 Suitable KEB housing size F6 / 9 4.2.1 Fuse protection according to The following table shows the maximum fuse size of the type gG with a 1:1 dimensioning and an input voltage of 400 V.

  • Page 15: Interference Suppression Level

    Technical data | 4 The following table shows the maximum fuse size of the type with a 1:1 dimensioning and an input voltage of 480 V. In case of other dimension- ing, the values must be designed for the current and the SCCR rating of the downstream drive controller.

  • Page 16: Assembly

    5 | Assembly KEB Automation KG 5 Assembly 5.1 Assembly instructions To prevent damage to the product, the following instructions must be observed: • Make sure that no components are bent and/or insulation distances are changed. • In case of mechanical defects, the product must not be put into operation. Compliance with applied standards is no longer guaranteed.

  • Page 17: Minimum Installation Distances Of The Filter

    Assembly | 5 Horizontal- hanging Vertical-standing Vertical-hanging Tab. 5: Permitted mounting orientations 5.4 Minimum installation distances of the filter Fig. 3: Installation distances Dimension Distance 150 mm 6 inch 100 mm 4 inch 30 mm 1.2 inch 0 mm 0 inch 0 mm 0 inch 50 mm 2 inch...

  • Page 18: Fixing Material

    5 | Assembly KEB Automation KG Fig. 4: Dimensions 33E6T60-3150 Material number Weight 33E6T60-3150 28.65 kg 5.6 Fixing material Filter Number Fixing material Tightening Suitable for torque ma_dr_e6-hf-filter-nb-20337731_en...
  • Page 19 Assembly | 5 33E6T60-3150 6 pieces Hexagon head screw ISO 4017 M10 - 8.8 50 Nm Filter on con- washer 440 lbin trol cabinet ISO 7090-10-200 HV ma_dr_e6-hf-filter-nb-20337731_en...

  • Page 20: Electrical Connection

    6 | Electrical connection KEB Automation KG 6 Electrical connection 6.1 Connection instructions The electrical installation shall be carried out in accordance with the relevant require- ments. With existing or newly wired circuits the person installing the units or machines must en- sure the EN requirements are met.

  • Page 21: Connection Description

    Electrical connection | 6 6.3 Connection description Fig. 6: Connection 33E6T60-3150 Filter Function Name Reference 33E6T60-3150 Mains input L1, L2, L3 (≡► Copper bar [} 22]) Drive controller L1‘, L2‘, L3‘ (≡► Copper bar [} 22]) Protective earth (≡► Earth connection screw [} 22]) ma_dr_e6-hf-filter-nb-20337731_en...

  • Page 22: Earth Connection Screw

    6 | Electrical connection KEB Automation KG 6.3.1 Earth connection screw Thread Max. tightening torque Nm Max. tightening torque lbin 9927020-003Z 35 Nm 310 lbin Tab. 6: Description earth connection screw 6.3.2 Copper bar Bor hole max. number of conductors Copper bar-10mm ma_dr_e6-hf-filter-nb-20337731_en...

  • Page 23: Maintenance, Service And Disposal | 7

    When replacing, only replace with original filter. b) Carefully replace the shielding in particular. Technical support and repairs KEB offers wide-ranging, complete after-sales technical support. The staff who deal with this handle questions on the entire range of products skilfully, quickly, and efficiently.

  • Page 24: Disposal

    14.08.2018. In principle, these devices may not be left at public or communal recycling or collection points. Unless otherwise agreed between the customer and KEB or unless there is a deviating mandatory legal regulation, KEB products labelled in this way can be returned.

  • Page 25: Certification | 8

    Certification | 8 8 Certification see also 2 EU Declaration of Conformity E4, E5, E6 [} 26] 2 UK Declaration of Conformity E4, E5, E6 [} 28] ma_dr_e6-hf-filter-nb-20337731_en...
  • Page 26 = any number or letter for different versions Voltage category 230 / 400 / 690 V ac This declaration of conformity is issued under the sole responsibility of KEB Automation KG. The above given product is in accordance with the following directives of the European Union Number:...
  • Page 27 Zertifizierungsstelle des RWTÜV Steubenstrasse 53 D - 45138 Essen No. of approval 041 004 500 Dated: 20.10.1994 Valid until: December 2024 KEB Automation KG, Südstr. 38, D-32683 Barntrup www.keb.de E-Mail: info@keb.de Tel.: +49 5263 401-0 Fax: -116 Seite: 2 von 2...

  • Page 28: Declaration Of Conformity

    5 Morris CI, Park Farm Industrial Estate, Wellingborough NN8 6XF, UK Declares under sole responsibility that the product as originally delivered Product Name: KEB Combivert ( Assessories EMC-Filters ) yyE4xxx-xxxx, yyE5xxx-xxxx, yyE6xxx-xxxx Model Number: with yy=05 to 32 and x = 0…9 or A….Z...

  • Page 29: Annex | 9

    Annex | 9 9 Annex 9.1 Measurement diagrams Interference voltage measurement limit value C2 according to 61800-3. Specifications: Motor cable length 50 m Output frequency 5 Hz Switching frequency 4 kHz ① ② Fig. 7: 33E6T60-3150 interference voltage measurement C2 4kHz 50m 1 QPeak 2 Average Interference voltage measurement limit value C3 according to 61800-3.

  • Page 30: Informative Values For The Use Of Rcds

    9 | Annex KEB Automation KG Motor cable length 100 m Output frequency 5 Hz Switching frequency 8 kHz ① ② Fig. 9: 33E6T60-3150 interference voltage measurement C2 8kHz 100m 1 QPeak 2 Average 9.2 Informative values for the use of RCDs Filter Switching frequency...

  • Page 31: Revision History | 10

    Revision history | 10 10 Revision history Edition Version Note 2023-04 Pre-series ma_dr_e6-hf-filter-nb-20337731_en...

  • Page 32: Glossary

    Glossary KEB Automation KG Glossary Application EN 60721-3-3 The application is the intended use of the KEB Classification of environmental conditions - Part 3: product. Classification of groups of environmental paramet- ers and their severitiesMain section 3: Stationary use at weatherprotected locations (IEC...
  • Page 33 Glossary Residual current circuit breaker; formerly also FI circuit breaker SCCR The Short Circuit Current Rating indicates the maximum short circuit current that the device can withstand. ma_dr_e6-hf-filter-nb-20337731_en...

  • Page 34: Index

    Index KEB Automation KG Index Insertion loss  15 Limit class  15 Maintenance work  23 Motor cable length  15 Mounting orientation  16 Packaging  24 Product features  11 Protective earthing  20 Return point  24 Sicherung  14 UL Class J  14 UL Typ gR/aR  15...
