11.5.9 Restart signal + System recondition (dual channel, redundancy mode
coherent)
Part
CH1
CH2
(Restart signal)
CH1
CH2
(System recondition)
Diff
11.5.10 Restart signal + System recondition (dual channel, redundancy
mode inverted)
Part
CH1
CH2
(Restart signal)
CH1
CH2
(System recondition)
Diff
98

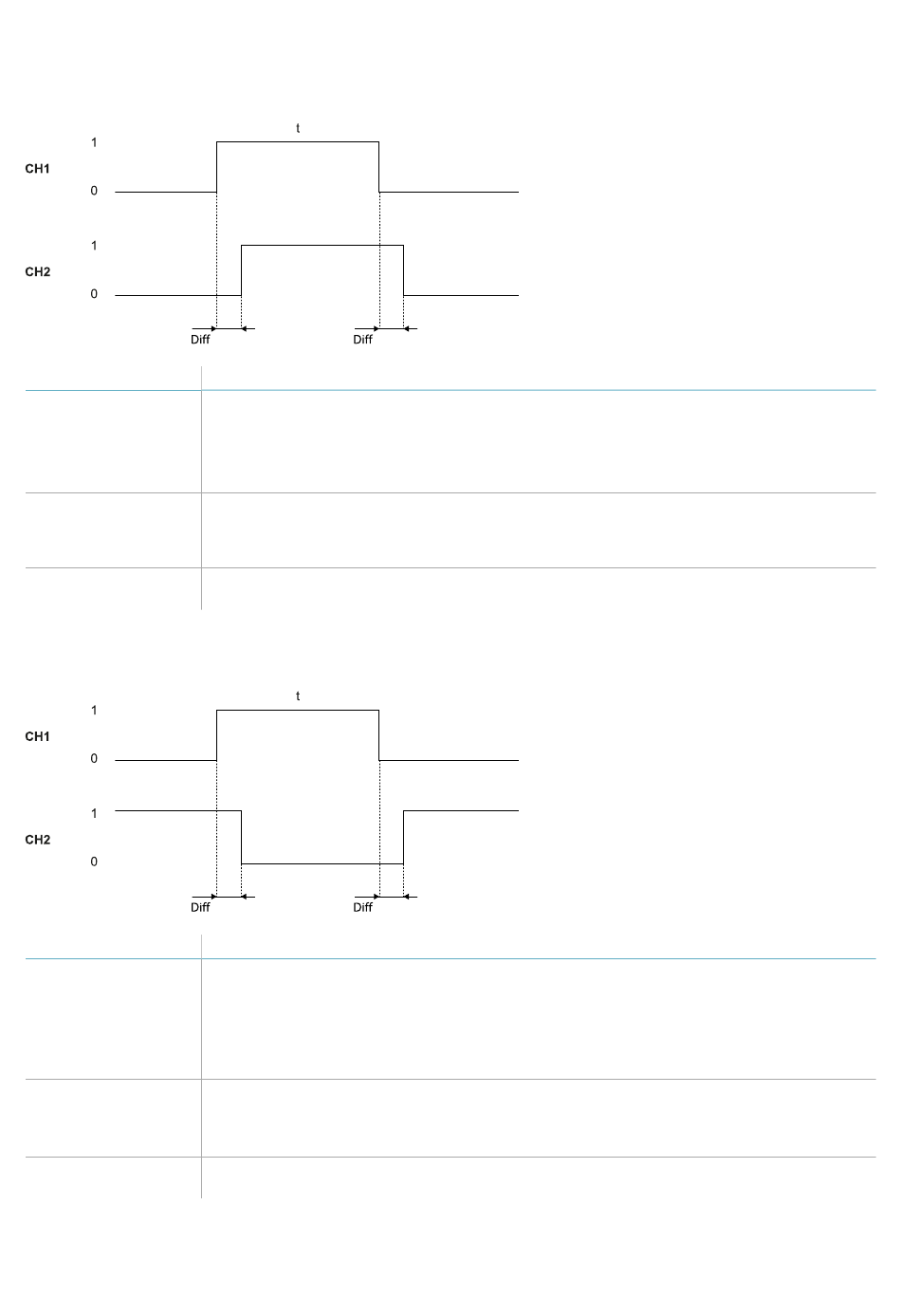

Interchangeable channel. Both channels must have a transition of logical level 0 -> 1 -
>0. The time they stay at a high logical level (t) must be at least 200 ms and less than 5
s.
For details about the behavior of Detection signal 1 and 2 outputs and the deactivation
delay, see "Restart signal (dual channel, redundancy mode coherent)" on page 95.
Interchangeable channel. Both channels must have a transition of logical level 0 -> 1 -
>0. They must stay at a high logical level (t) for at least 10 s and less than 30 s.
Less than 100 ms. If the value is greater than 100 ms, the system maintains the outputs
deactivated.
Channel 1 of the Restart signal must have a transition of logical level 0 -> 1 -> 0.
Channel 2 of Restart signal must have a transition of logical level 1 -> 0 -> 1. The time
Channel 1 stays at a high logical level and the time Channel 2 stays at a low logical level
(t) must be at least 200 ms and less than 5 s.
For details about the behavior of Detection signal 1 and 2 outputs and the deactivation
delay, see "Restart signal (dual channel, redundancy mode inverted)" on page 96.
Channel 1 of System recondition must have a transition of logical level 0 -> 1 -> 0.
Channel 2 of System recondition must have a transition of logical level 1 -> 0 -> 1. The
time Channel 1 stays at a high logical level and the time Channel 2 stays at a low logical
level (t) for at least 10 s and less than 30 s.
Less than 100 ms. If the value is greater than 100 ms, the system maintains the outputs
deactivated.
