Inxpect Value Line Instruction Manual page 49

7. Sensor position

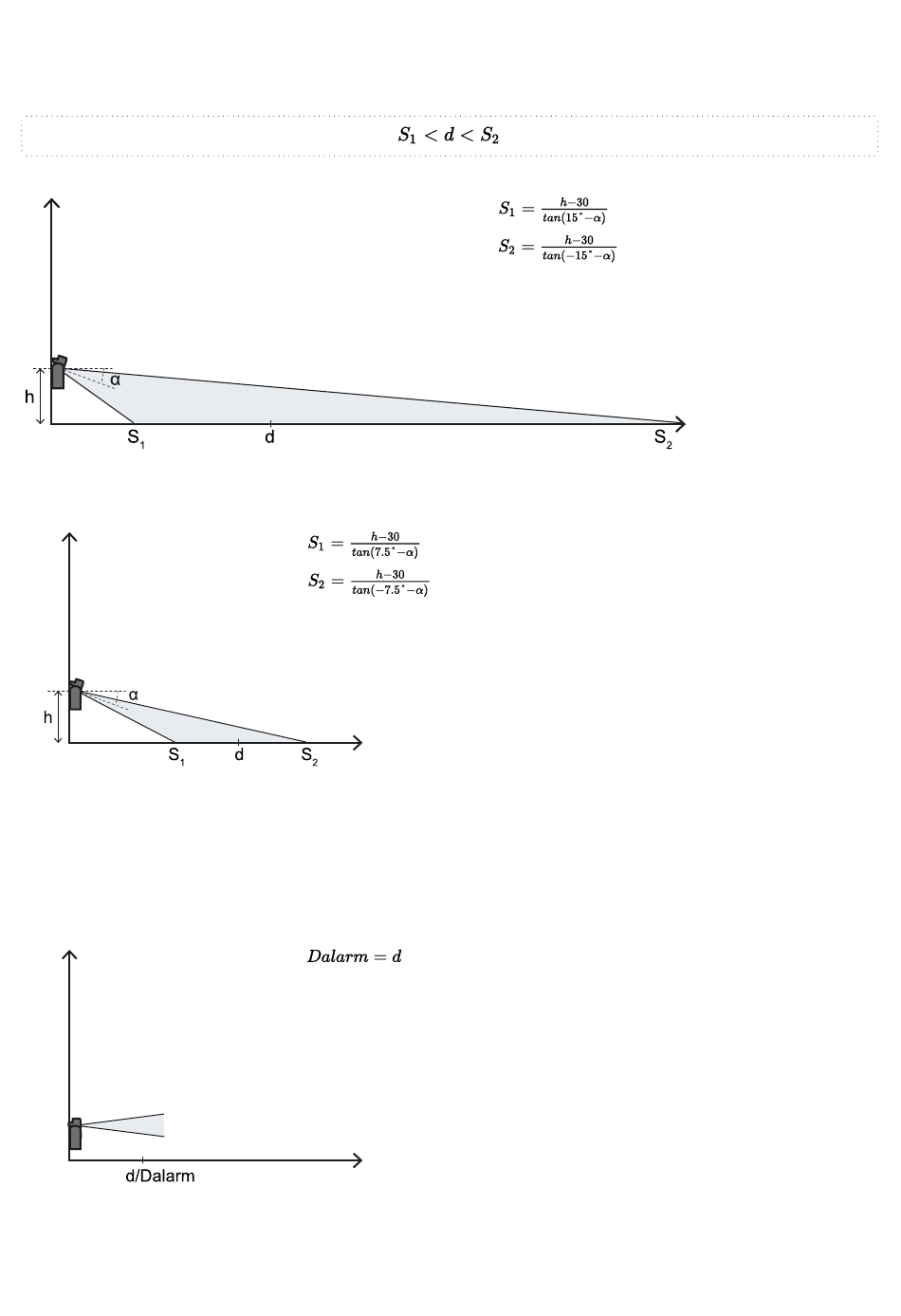

7.4.5 Configuration 3
To guarantee optimum performance, respect the following conditions:
S188A-X1 and S188A-X3 field of view
S188A-X2 field of view
7.4.6 Calculate the real detection distance
The actual detection distance Dalarm is the value to be entered on the Configuration page of the Inxpect Safety
application.
Dalarm indicates the maximum distance between the sensor and the object to be detected.
Inxpect Value Line | Instruction manual v1.0 FEB 2025| Inxpect VL-IM-7_00375_en_v1.0 | © 2025 Inxpect SpA 49
