7.3.7 Example of calculation of the separation distance - orthogonal
approach

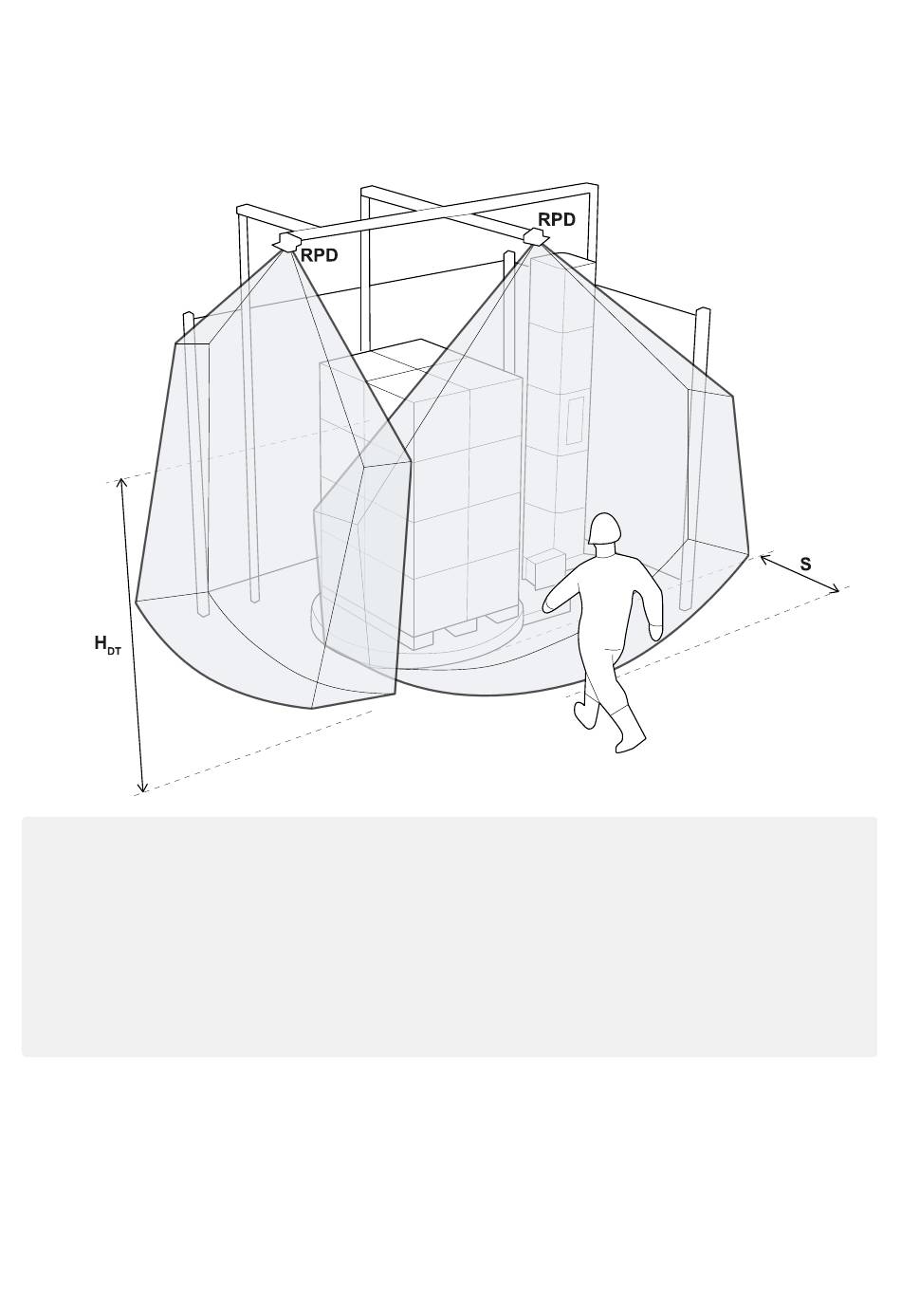

Below is an example of an operator approaching a hazardous area where a radar sensor is used to safeguard the
area.
Example
Overall stopping time T = 0.1 s
l
H = 2200 mm
l
DT
Z = 0 mm
l
According to the formula for the calculation of the reaching distance:
D = 850 mm
DS
According to these values, the overall separation distance is:
S = 1600 x 0.1 + 850 + 0 = 1010 mm
