6. Other functions
6.4.6 Electrical connections

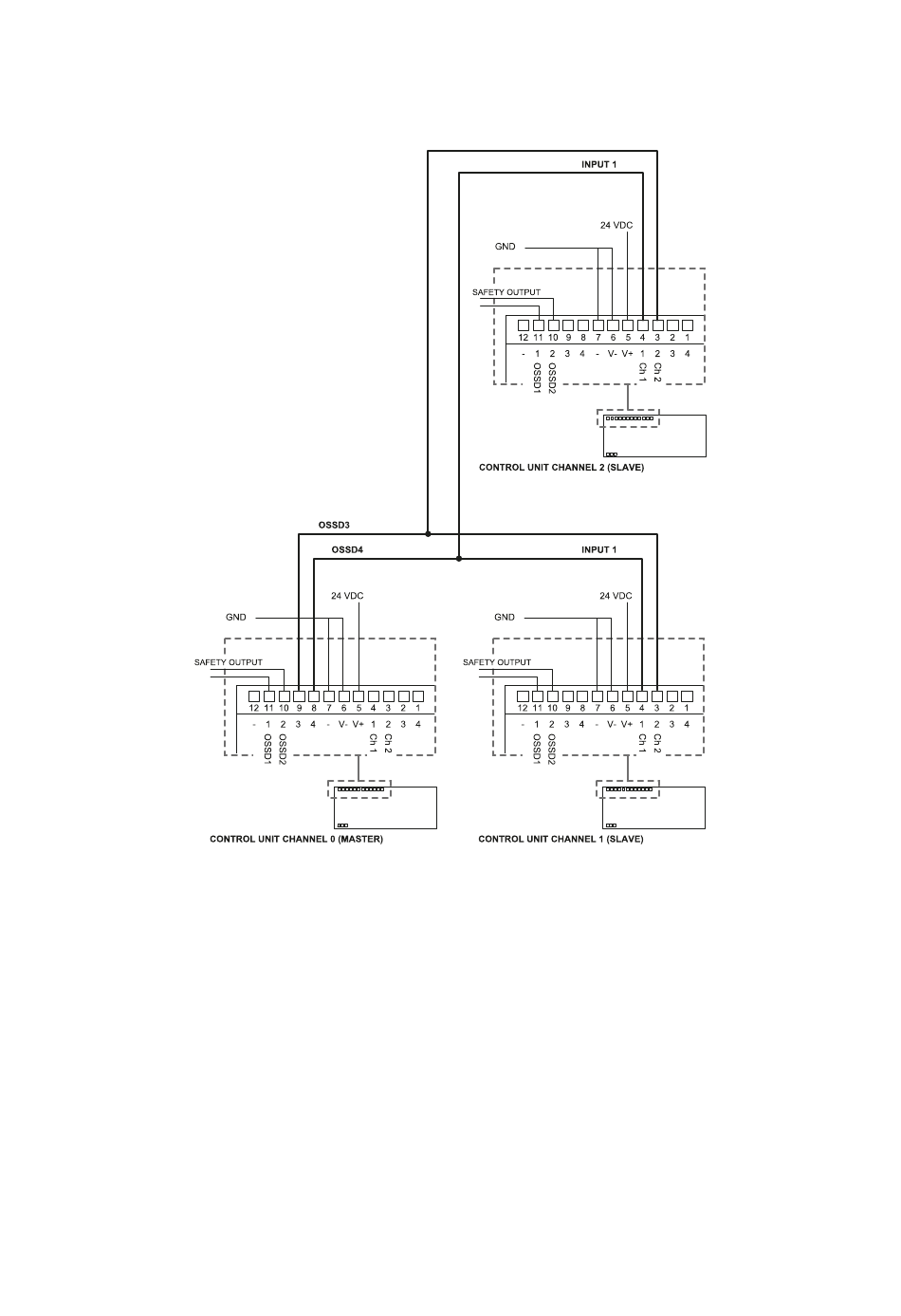

Star example
Internal trigger source (control unit Master) + 2 control units (Slaves)
In this example:
Control unit channel 0 (Master) has OSSD3 and OSSD4 configured as Acquisition Trigger.
l
Control unit channel 1 (Slave) has Digital Input 1 configured as Acquisition Trigger.
l
Control unit channel 2 (Slave) has Digital Input 1 configured as Acquisition Trigger.
l
36
Inxpect Value Line | Instruction manual v1.0 FEB 2025 | Inxpect VL-IM-7_00375_en_v1.0 | © 2025 Inxpect SpA
