8.2.3 Install sensors on the floor
Note: for installation with Metal protector kit (product code 90202ZAA), see the instructions supplied with the kit.
Note: the usage of a thread-locking fluid on the threads of fasteners is suggested, especially when the sensor is
installed on a moving or vibrating part of the machinery.

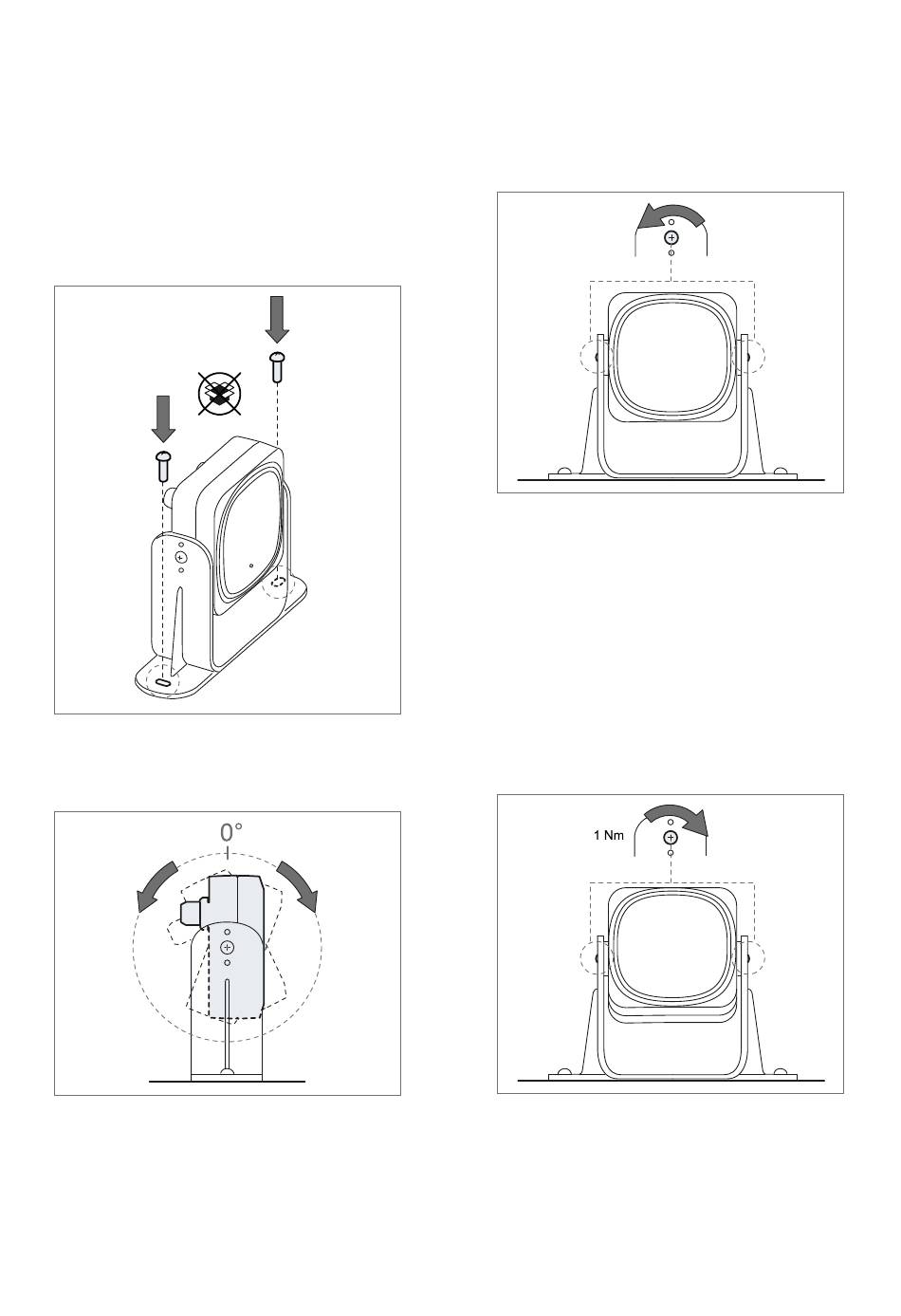

1. Position the sensor as indicated in the
configuration report and fasten the bracket
with two tamper-proof screws directly onto the
floor or another support.
NOTICE: make sure the support does not
inhibit machinery commands.
3. Tilt the sensor to the desired inclination (see
"Sensor position" on page 38).
Inxpect Value Line | Instruction manual v1.0 FEB 2025| Inxpect VL-IM-7_00375_en_v1.0 | © 2025 Inxpect SpA
2. Loosen the side screws to tilt the sensor.
4. Tighten the screws.
