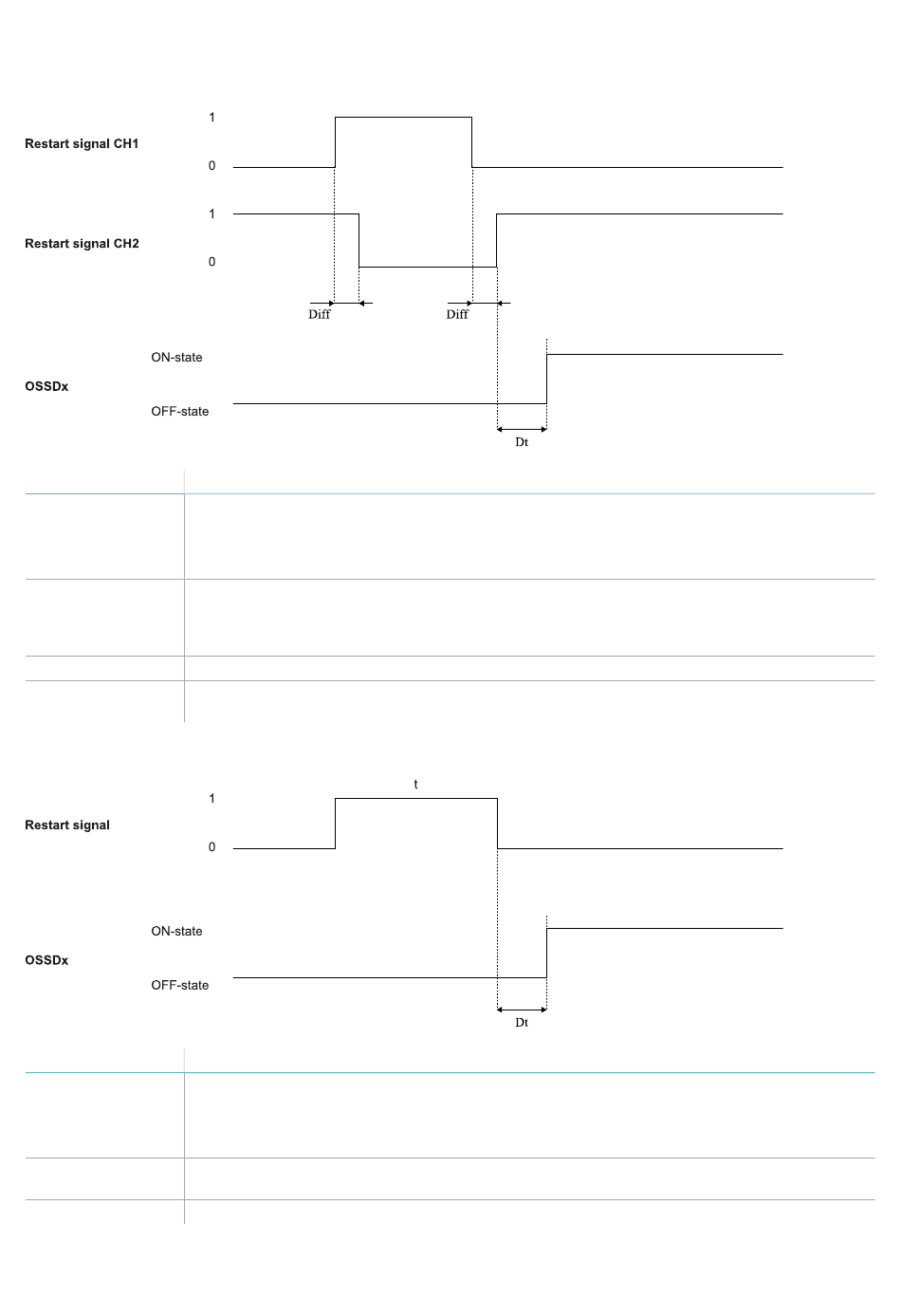

11.5.4 Restart signal (dual channel, redundancy mode inverted)
Part
OSSDx: Detection signal outputs go to ON-state as soon as the last channel has correctly
completed the transition.
Detection signal
"N"/Detection
signal group "N"
Restart signal CH1 Channel 1 of the Restart signal must have a transition of logical level 0 -> 1 -> 0. Channel
2 of Restart signal must have a transition of logical level 1 -> 0 -> 1. The time Channel 1
Restart signal CH2
stays at a high logical level and the time Channel 2 stays at a low logical level (t) must be
at least 200 ms and less than 5 s.
Dt Activation delay. Less than 50 ms.
Diff Less than 100 ms. If the value is greater than 100 ms, the system maintains the outputs
deactivated.
11.5.5 Restart signal (single channel)
Part
OSSDx: Detection signal outputs go to ON-state as soon as the Restart signal has correctly
completed the transition 0 -> 1 -> 0.
Detection signal
"N"/Detection
signal group "N"
Restart signal The channel must have a transition of logical level 0 -> 1 ->0. The time they stay at a high
logical level (t) must be at least 200 ms and less than 5 s.
Dt Activation delay. Less than 50 ms.
