11. Technical references

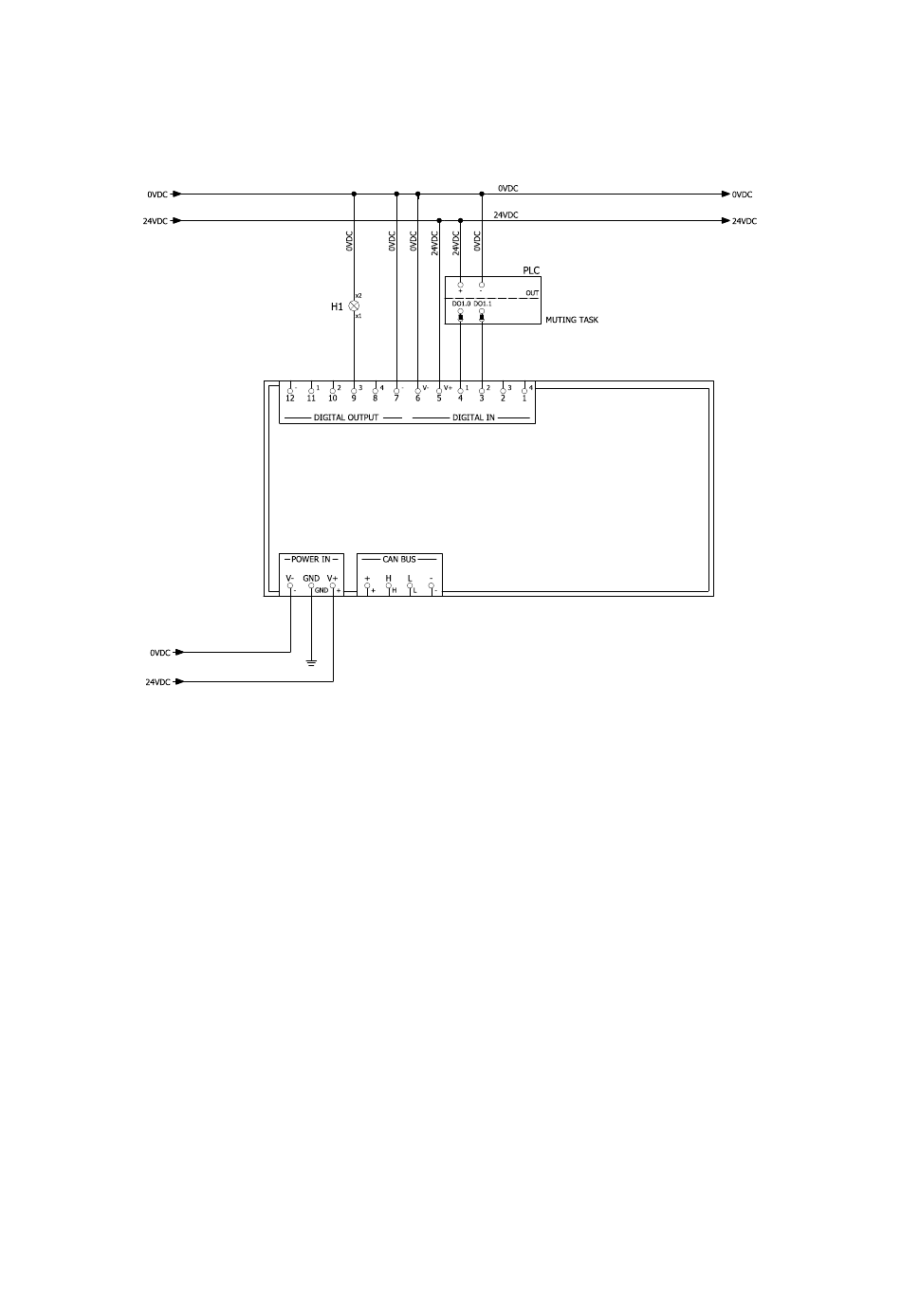

11.3.5 Connection of the muting input and output (one group of sensors)
Note: the cables used for wiring the digital inputs must have a maximum length of 30 m.
Digital I/O settings (through the Inxpect Safety application)
Digital input #1 Muting group 1
Digital input #2 Not configured
Digital output #1 Not configured
Digital output #2 Not configured
Digital output #3 Muting enable feedback signal
Digital output #4 Not configured
Inxpect Value Line | Instruction manual v1.0 FEB 2025| Inxpect VL-IM-7_00375_en_v1.0 | © 2025 Inxpect SpA
87
