7.2.2 Areas and dimensions of the field of view
The sensor field of view is composed of two areas:
detection field: where the detection of objects similar to humans in any position is guaranteed
l
tolerance area: where the actual detection of a moving object/person depends on the characteristics of the
l
object itself (see "Factors that influence the reflected signal" on page 23).

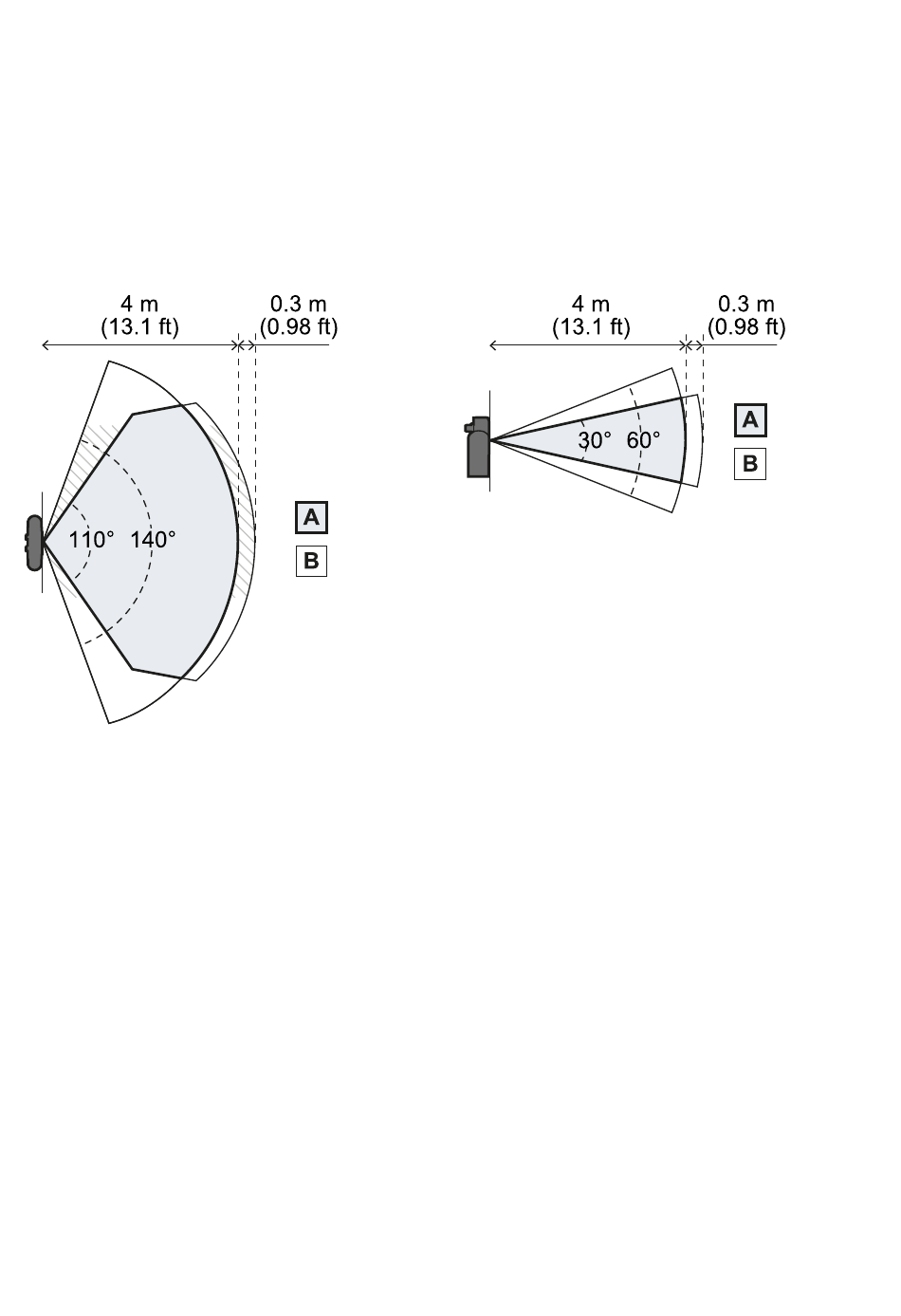

7.2.3 Dimensions for S188A-X1 and S188A-X3
Below are the maximum field of view dimensions [A] and the relative tolerance area [B].
The tolerance area dimensions are the same for maximum angular coverage (as described in the figures below)
and smaller coverages.
Top view
7.2.4 Dimensions for S188A-X2
Below are the maximum field of view dimensions [A] and the relative tolerance area [B].
The tolerance area dimensions are the same for maximum angular coverage (as described in the figures below)
and smaller coverages.
Inxpect Value Line | Instruction manual v1.0 FEB 2025| Inxpect VL-IM-7_00375_en_v1.0 | © 2025 Inxpect SpA
Side view
