Section 1
1.1

Unpacking and Inspection

Inspect the shipping carton before opening, if damaged contact the carriers agent
immediately. Inspect the instrument for any damage. If the instrument appears damaged or
fails to meet specifications notify QuadTech (refer to instruction manual front cover) or its
local representative. Retain the shipping carton and packing material for future use such as
returning for recalibration or service.
1.2

Product Overview

The Guardian 5000 Safety Analyzer combines four critical safety tests into a single
instrument, these being AC hipot, DC hipot, insulation resistance measurements and
ground continuity test. The hipot test can be programmed over a voltage range of 0.1 to
5KV AC and 0.5 to 6KV DC with a min/max leakage current detection range of 300µA to
40mA AC and 20mA DC. Insulation resistance measurements are possible to 10GΩ at
programmable DC test voltages between 100 and 1000V. A ground continuity test to 30A
AC is also possible. The instrument comes standard with internal storage of up to 50 memory
groups and an IEEE-488.2 interface for remote control operation and communication with
other instrumentation.
www.valuetronics.com

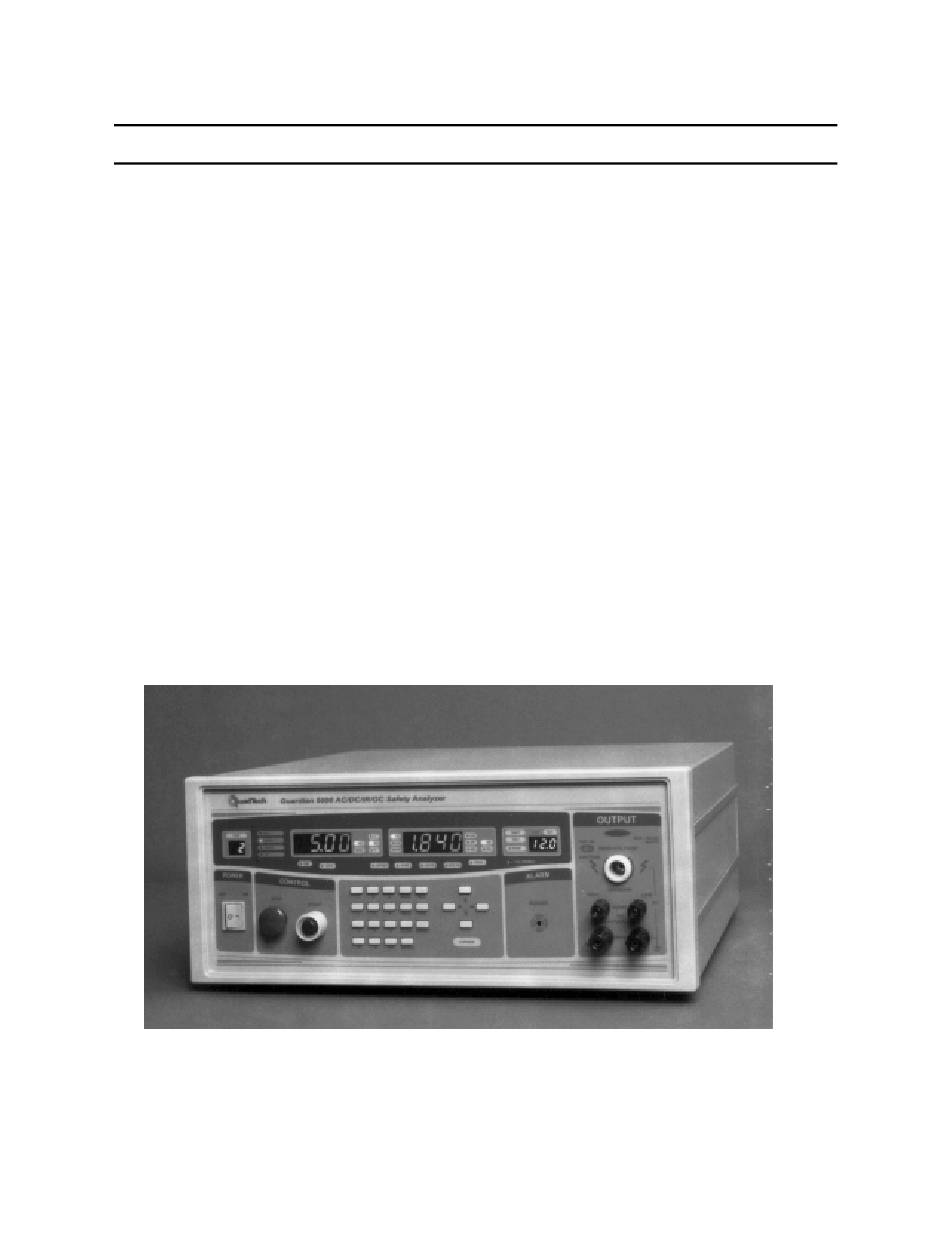

Figure 1-1
