1.4

Rear Panel Description

Fig 1-3
Ref. # Item
1 IEEE
2 SCAN
3 Voltage
Selector
!
4 AC Inlet
Contains 7A, 250V, 5x20mm fuse for 90-130V operation or
3.5A, 250V, 5x20mm fuse for 200-250V operation
5 SIGNAL
OUTPUT
6 Ground
7 Fan
Introduction 1-6
www.valuetronics.com
1 2 3
Rear Panel Connectors and Controls
Function
Input/output connections according to IEEE
STD-488.2. 24 pin socket for standard
IEEE-488 cable. Refer to paragraph 3.2
Input/output scanner interface for QuadTech 5000-01 or 5000-02
Multiport Scanner Matrix. Refer to Paragraph 3.3.
Switches for selecting range of AC power source
- Set to 100V position for 90 - 100VAC operation
- Set to 120V position for 110 - 130VAC operation
- Set to 220V position for 200 - 240VAC operation
- Set to 240V position for 220 - 250VAC operation
Fuse drawer and 3-wire connection for AC power source. Module
Contact closures for test in process, test results good, and test
results no good. Maximum contact rating is 115V at 0.3A.
Chassis ground connection
Temperature control fan
- on for > 50 o C
- off for < 45 o C
4 5 6

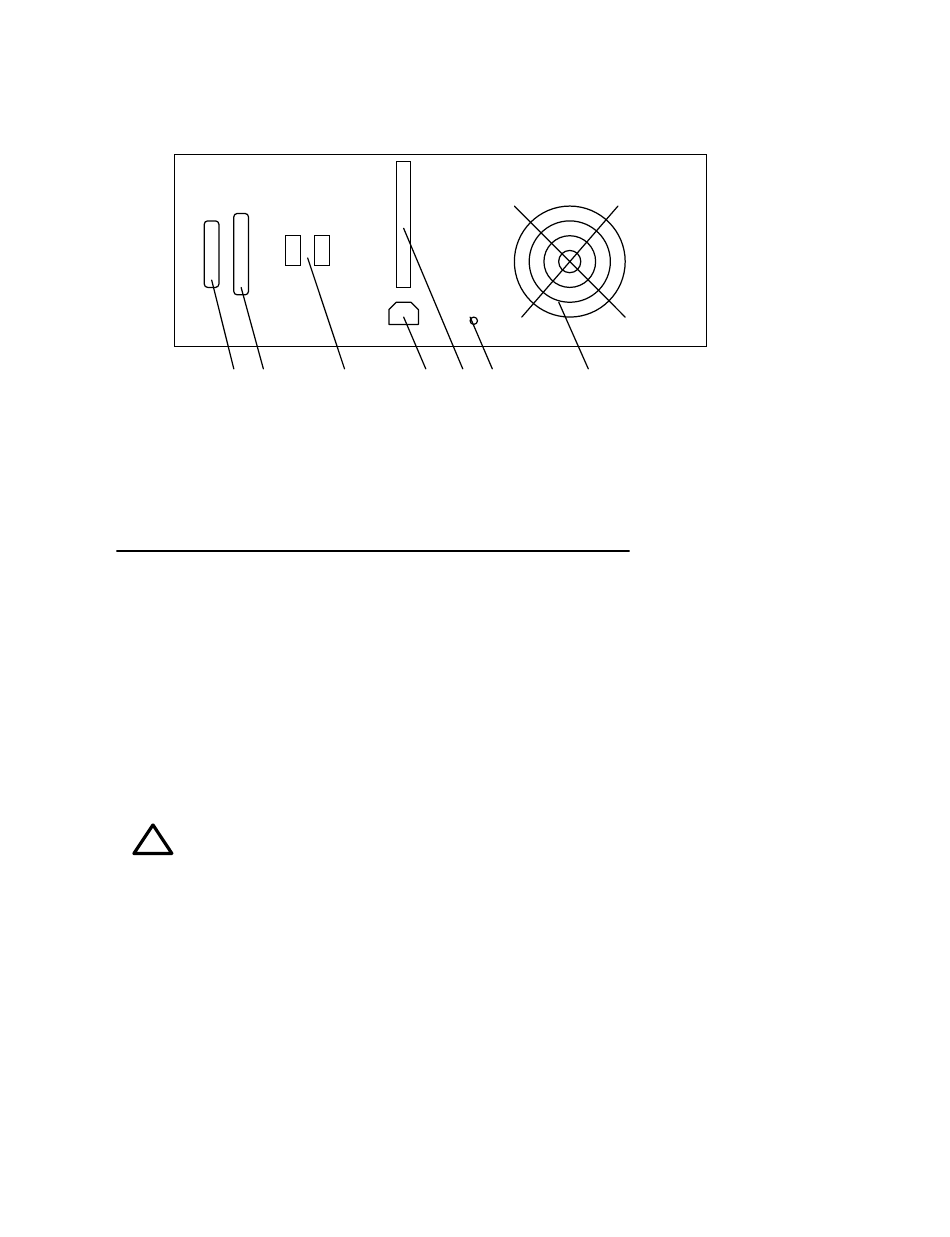

Figure 1-3
Rear Panel View
Table 1-2
7
