Programming Hipot Test - QuadTech Guardian 5000 Instruction Manual

2.6

Programming Hipot Test

Test Step
STEP
1
OFF ON

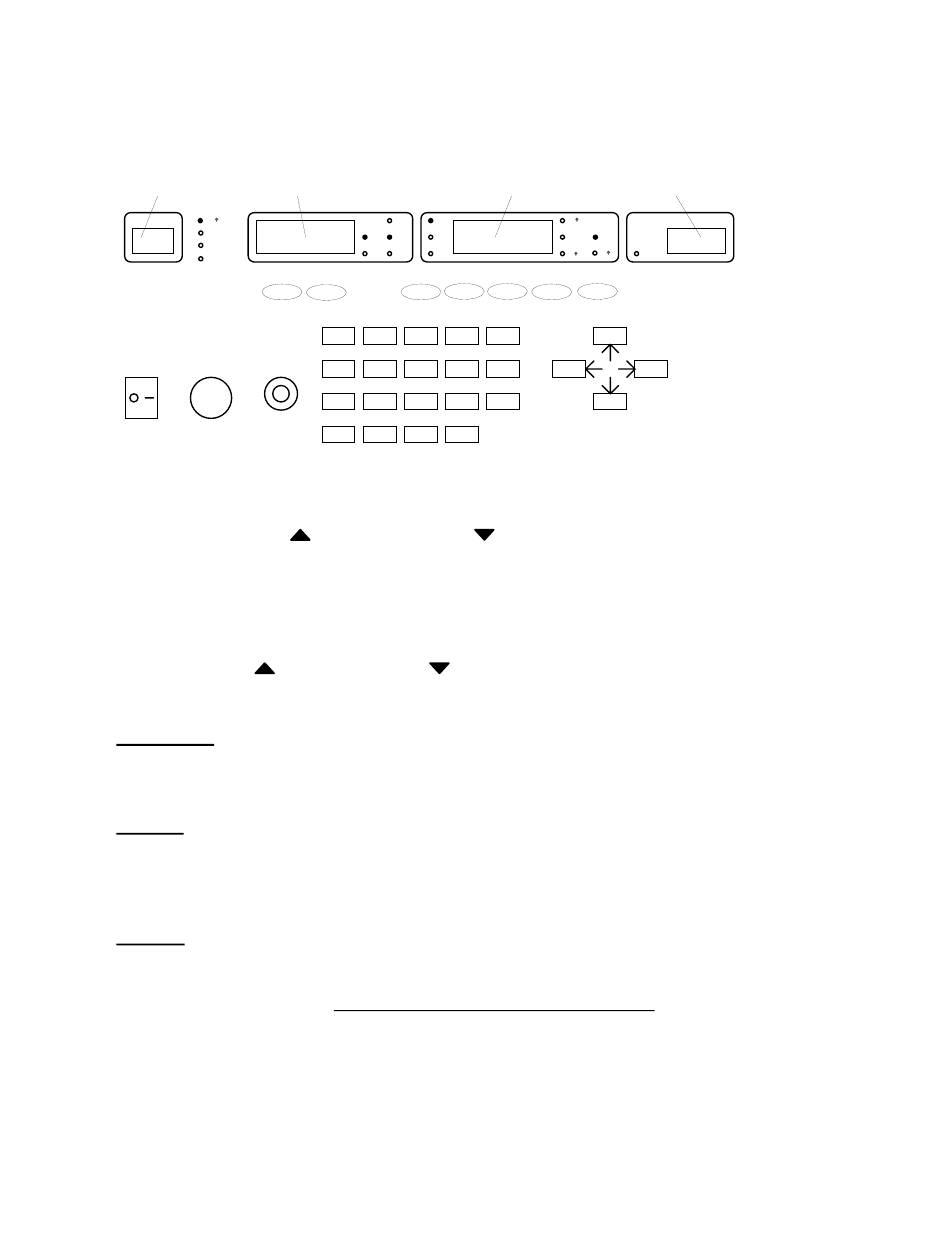

With the instrument in standby status (Stop button previously pressed and no lights blinking)
press the arrow UP
programmed. If the desired selection is an AC or DC hipot test proceed as described below, if
selection is an IR test refer to paragraph 2.7, if selection is ground continuity refer to
paragraph 2.8.
Press PROG key and ENTER to begin the parameter change. The test mode indicator will
blink, arrow UP
Hipot) and press ENTER.
Test Voltage
From the Data Entry Keys type the desired test voltage and then press ENTER. (0.10 to
5.00KV AC and 0.5 to 6.00KV DC are the allowable ranges)
Hi Limit
From the Data Entry Keys type the desired high current limit and then press ENTER. (0.300
to 40.00mA AC, or 20.00mA DC is the allowable range). Any measured value of leakage
current above this will result in a fail decision.
Lo Limit
From the Data Entry Keys type the desired low current limit and then press ENTER. (0.100
to 1/2 the Hi Limit is the allowable range). Any measured value of leakage current below this
will result in a fail decision. An entry of 0 disables the limit detection.
