Input/Output Interfaces - Section; Remote - QuadTech Guardian 5000 Instruction Manual

Section 3
3.1

Remote

A remote control connector is located on the rear panel of the instrument with input
connections for starting and stopping the unit externally and output connections indicating
instrument status and a safety interlock connection.

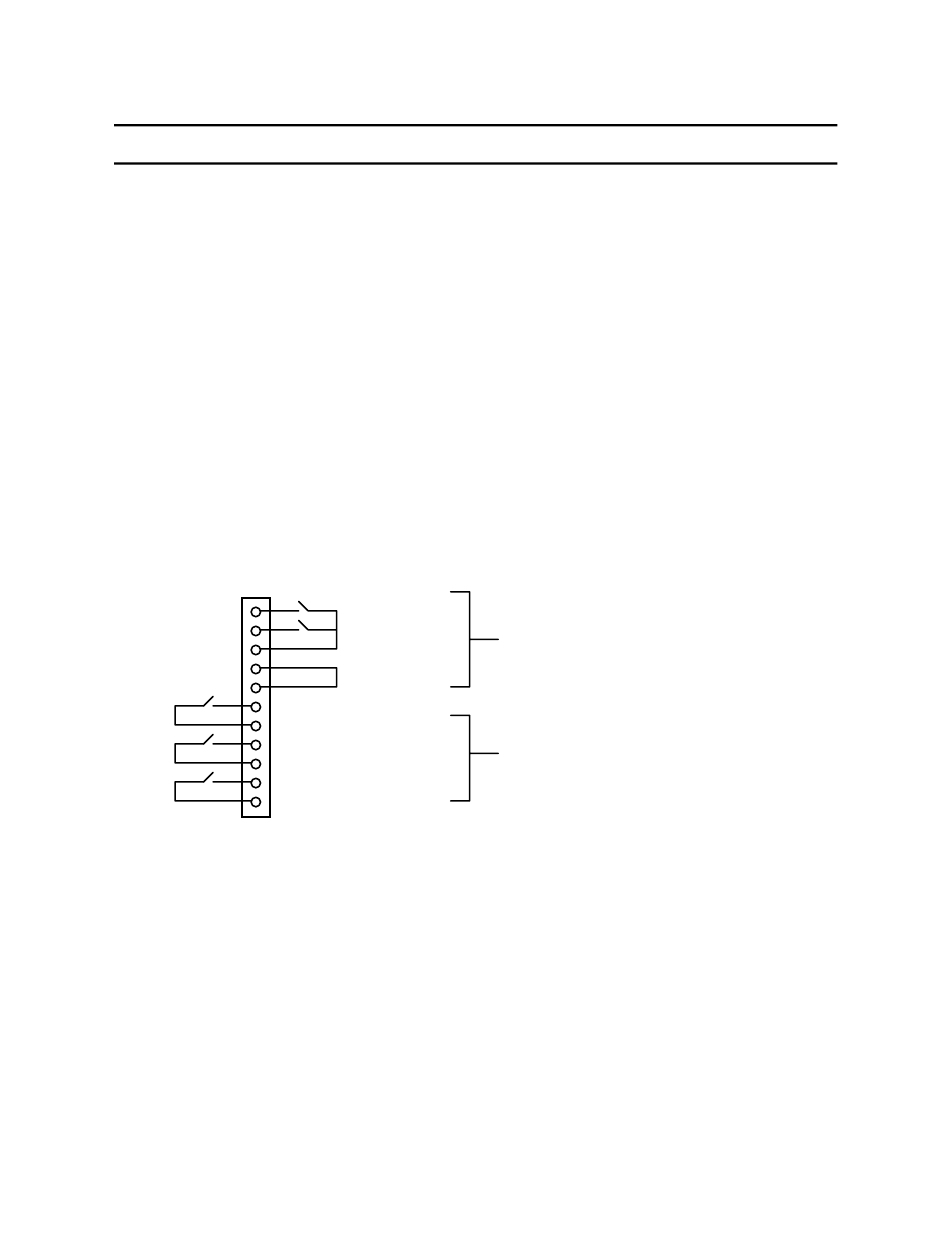

Inputs require a contact closure and outputs provide a contact closure, as shown in the figure
below.
Before connecting the instrument to its power source the interlock function on the rear panel
remote connector must be properly utilized. This is an important safety feature for the
protection of the operator. Turn on of the instrument's high voltage is inhibited with no
interlock connection and is functional with the interlock jumper in place (as shipped from the
factory).
www.valuetronics.com
START
STOP
COM
INTERLOCK
UNDER TEST
PASS
FAIL
Rear Panel
Remote Connector
Remote Control Connector
Input/Output Interfaces
INPUTS
OUTPUTS
Figure 3-1
