2.4
Measurement Procedure
Once the instrument has been powered up, the offset function implemented and the device
under test connected, testing can begin. The operator has the choice of performing a test at
power-up conditions (test conditions at which the instrument was last powered down), or
recalling one of 50 possible stored setups. Refer to paragraph 2.5 thru 2.8 for instructions to
change the test mode and/or test conditions.
To initiate a test proceed as follows:
•
Press STOP (red button) to place the instrument in its standby ready-to-test state.
Test Sep # (1 -15) or
Setup # (1 - 50) entered from keypad in RECALL mode
STEP
1
OFF ON
•
Press START (green button) to start the test. When this button is pressed the high voltage
is turned on. This is indicated by the DANGER light being on to warn the operator that
high voltage or current is present at the test leads. The step display indicates the step # (1
- 15) within a sequence of tests, voltage/current display will indicate its value, the
measure display will show current or resistance value and the timer will show ramp and
test time countdown.
•
Depending on the test conditions, the test voltage or current will cut off if a limit is
exceeded or cut off when the test time has expired. In the case of a FAIL situation the
STOP button must be pressed to stop the buzzer.
•
The STOP button can be pressed at any time to stop the test.
Operation 2-6
www.valuetronics.com
R
2.50
W-ACV
AC
W-DCV
DC
I-R
RMT
LOCK
7
STOP
START
4
1
0
A
HI
5.00
KV
LO
ARC
V
OFFSET
HI-NG
LO-NG
ARC-NG
8
9
PROG
RCL
5
6
DELE
STO
2
3
CLEAR OFFSET
.
OFF ENTER
TIMER
m
SEC
5.0
uA
mA
TEST
G
M
RAMP
PASS

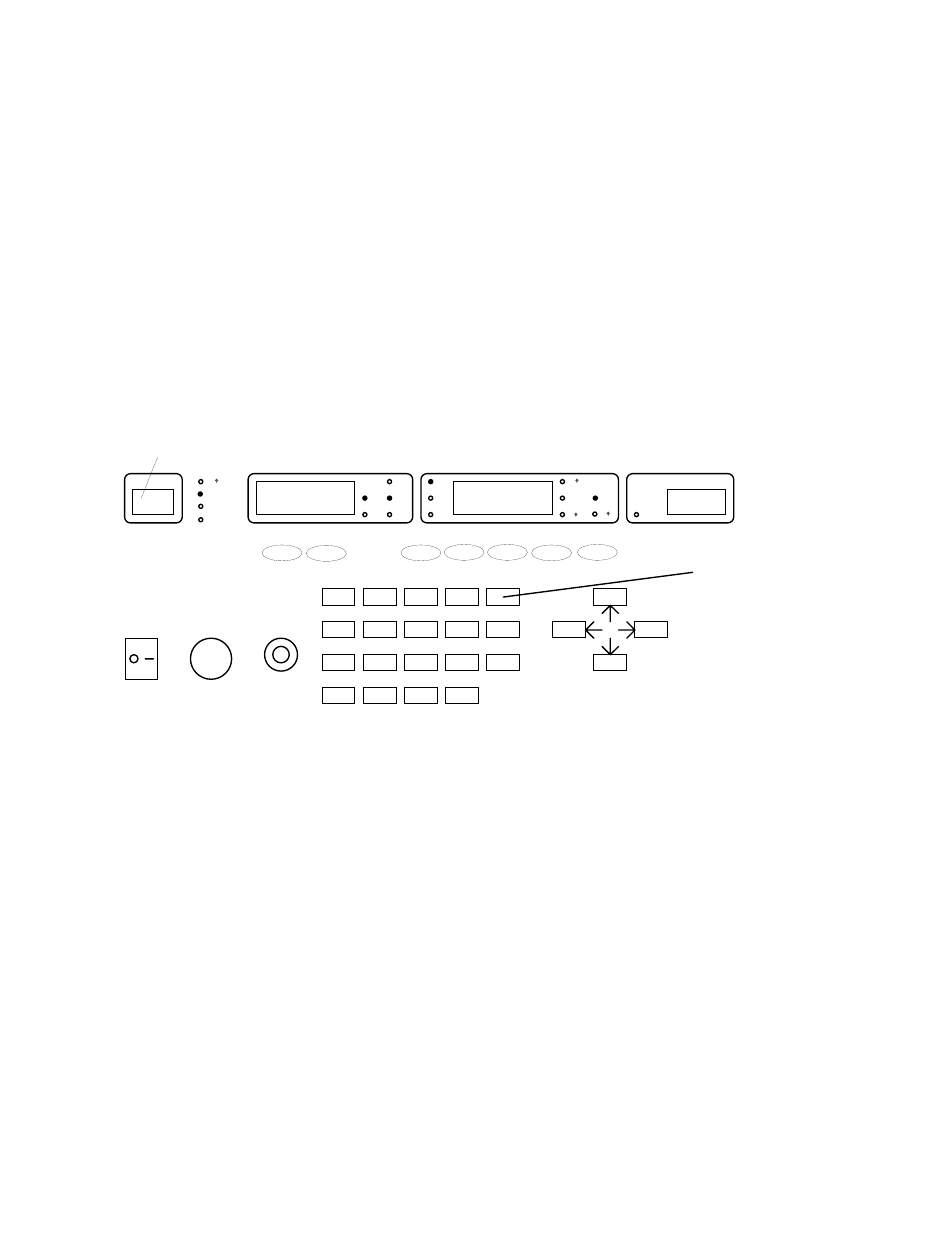

Press to Recall
Setup #
CURSOR
