2.3
Connection to Device Under Test
Before connecting the device for test Press the STOP key and make sure the red DANGER
light is not on.
Depending on the test to be conducted (Hipot, IR or Ground Continuity) connect the test
cables to the front panel OUTPUT connectors. Refer to the following figures to determine the
correct configuration. When using the black cable, with the metal retaining bracket, make
sure it is locked behind the connector to prevent this cable from accidentally coming loose.
NEVER TOUCH THE TEST LEADS OR THE DEVICE UNDER TEST WHEN THEY
ARE CONNECTED TO THE INSTRUMENT AND THE RED DANGER LIGHT IS
www.valuetronics.com
ON OR BLINKING.
HIGH-VOLTAGE
UNKNOWN
HIGH
LOW
SENSE
WV
DRIVER
With Retaining Bracket
Alligator Clip Lead

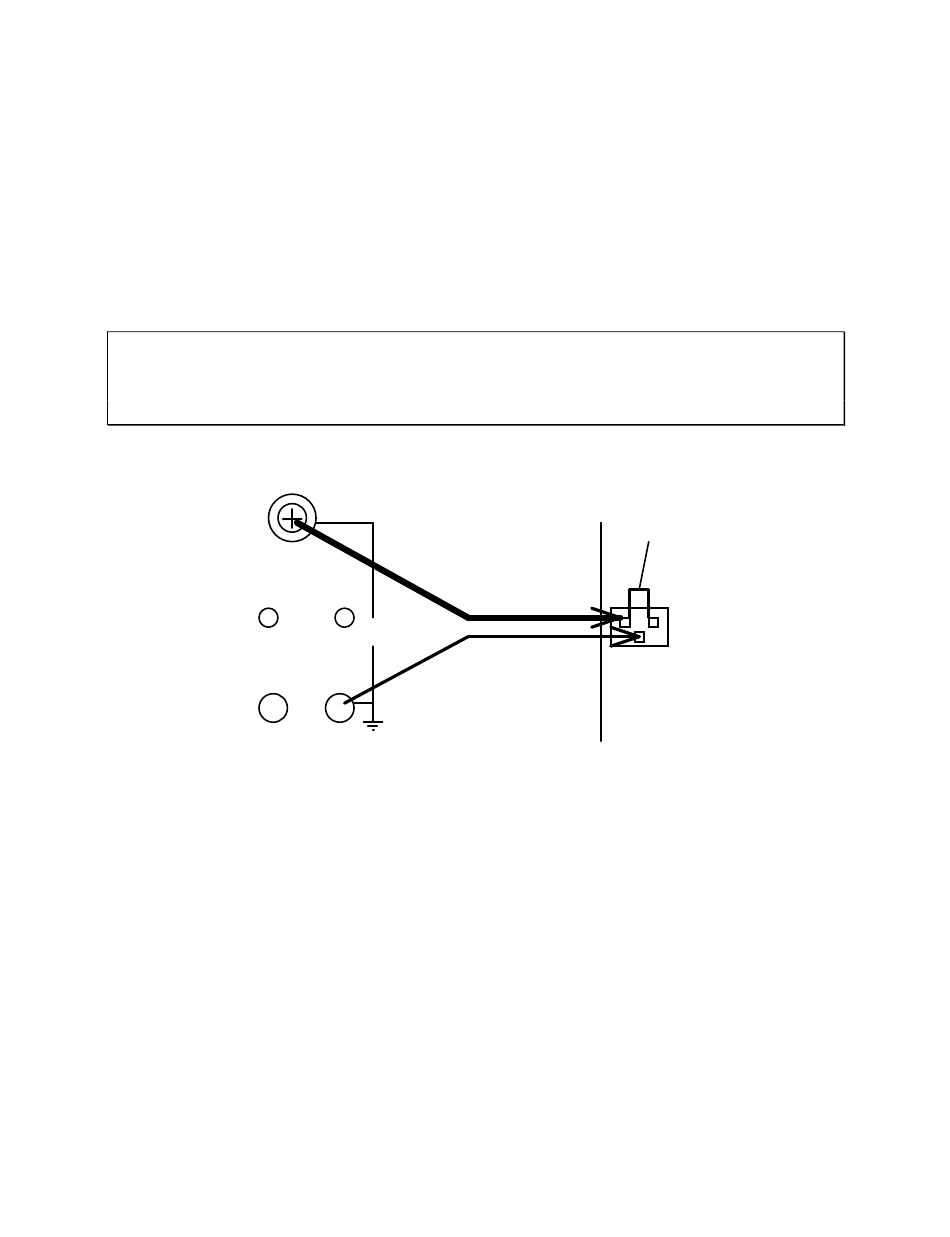

Connection for Hipot/IR Test
(Using S02 Two Lead Test Set)
WARNING
Alligator Clip Lead
(Red)
(Black)
Figure 2-1
Shorted
Together
Device Under
Test
(DUT)
Operation 2-3
