Scanner Programming - QuadTech Guardian 5000 Instruction Manual

G20
Interconnect cable
banana plug/lug
(red/black)

3.3.4 Scanner Programming

There are 16 indicators (8 high, 8 low) on the scanner front panel, during test these indicate
which are programmed for the High Voltage or Low connections. Connections for high
voltage are indicated in red and low in green. When the scanner and Guardian 5000 are
connected (25 pin interconnect cable) the instrument will accept entry of scanner connections.
A Hi or Lo entry (as shown below) is made during the programming process preceding the
entry of a test voltage. It is possible to have one or multiple entries for scanner connections,
i.e. if 1 2 and 3 are entered for the Hi connection all three outputs will be connected to the
High Voltage terminal during the test.
connection up to four will be shown on the Voltage display and those in excess of four shown
on the Limit display.
www.valuetronics.com
GROUNDING
CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4
INPUT
Driver
Sense
Device
Under Test
G15, Ground continuity
clip lead set (red/black)
HIGH-VOLTAGE
UNKNOWN
HIGH LOW
SENSE WV
DRIVER
Guardian 5000
Output Connectors

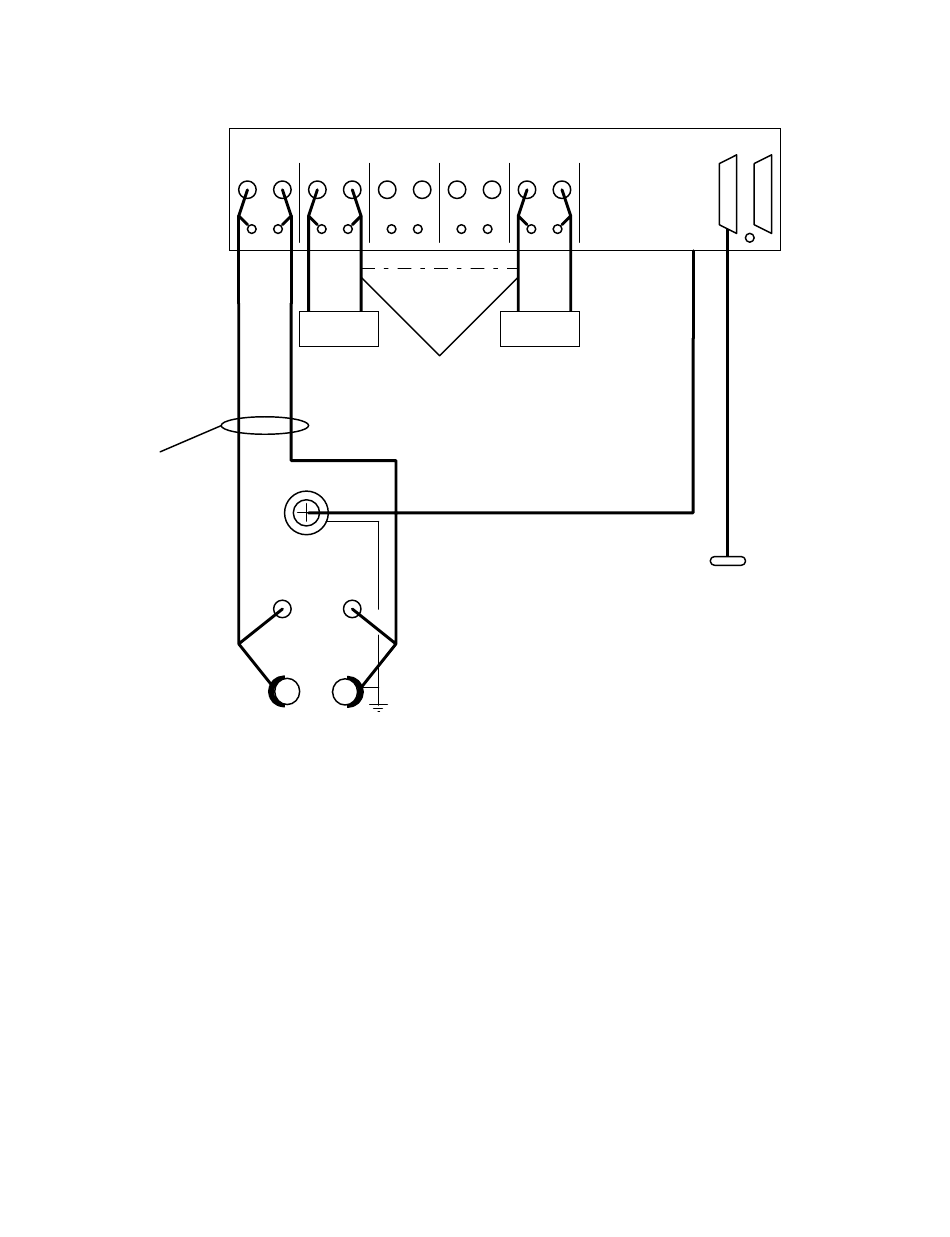

Figure 3-3: 5000-02 Scanner Connection
To front panel
HV I/P
Device
Under Test
G18, HV plug to
sheathed banana (red)
When making multiple entries for a scanner
Maintenance & Calibration 3-17
SCAN I/F
I/P O/P
G17
Control cable
To Guardian 5000
rear panel scan
connector
