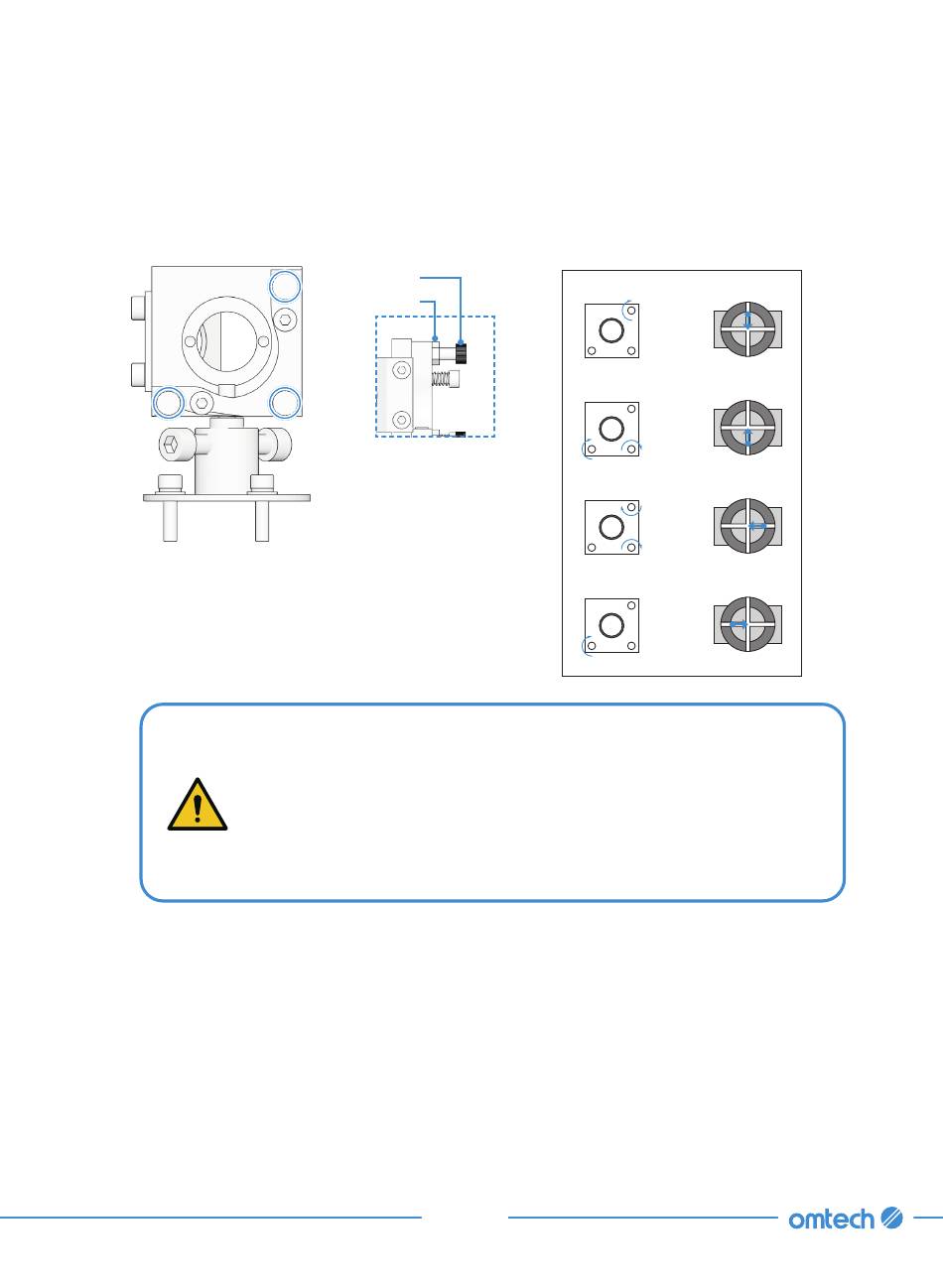

4. Adjust the 1st mirror's set setscrews accordingly.
a. Loosen the nut on the setscrew.
b. Slightly turn the setscrew either clockwise or counterclockwise.
• Each screw adjusts a different position or angle.
• Keep track of which screw you are adjusting and the direction of
• Do not turn the screw more than ¼ turn at a time and, especially at
5. Use the direction arrows on the control panel to send the 2nd mirror to the front of the bed
along the Y axis.
6. Repeat steps 2, 3 and 4 until the beam is well aligned.
7. Retighten the nuts on the setscrews.
Setscrew
Nut
adjustment.
first, test the position of the laser after each adjustment so that you
learn the effect of each change.
76
Lower Beam
Raise Beam
Move Beam Left
Lower Beam Right
