4 Operation
4.7.7 Adjusting Engraving Layers

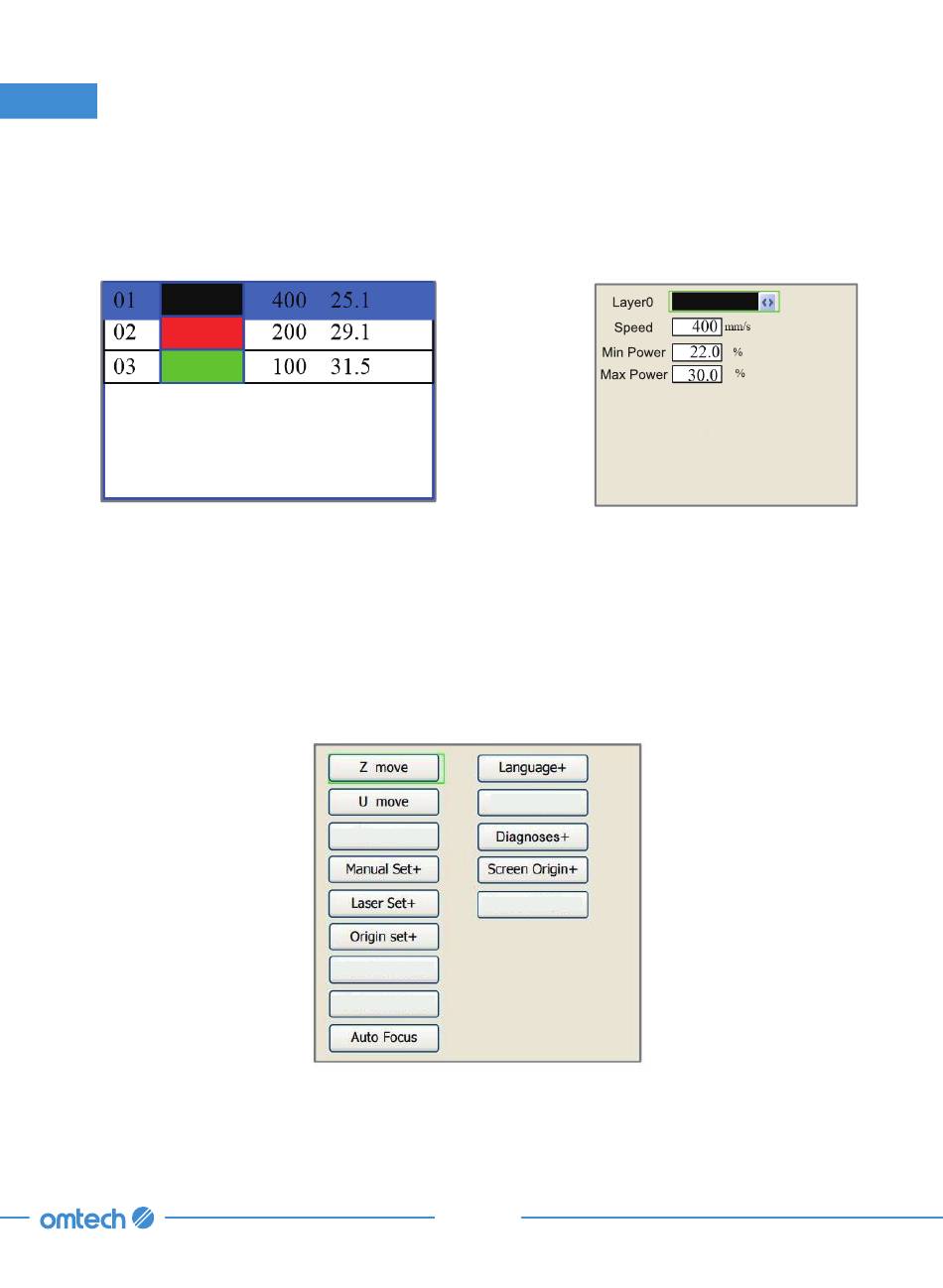

When the system is idle or the work is finished, press ENTER to enter the layer parameter section.
Push the ▲ and ▼ keys to select the intended layer. Press ENTER to check the selected layer's
parameters as shown below:
The light blue cursor will be on "Layer" by default. Push the ◄ and ► keys to select the intended
layer. Press FN to move the light blue block to the intended parameter. Press ENTER to save the
parameter changes. Otherwise, changes will not be saved. The operation method is the same as
that of the max/min power setting.
4.7.8 Function Menu
Press FN on the main interface to enter the following menu:
Push the ▲ and ▼ keys to move the light blue cursor to the intended entry, and press ENTER to
enter the corresponding submenu.
IP config+
Keyboard Lock+
Axes Reset+
Set factory para
FST default para
