2 Introduction

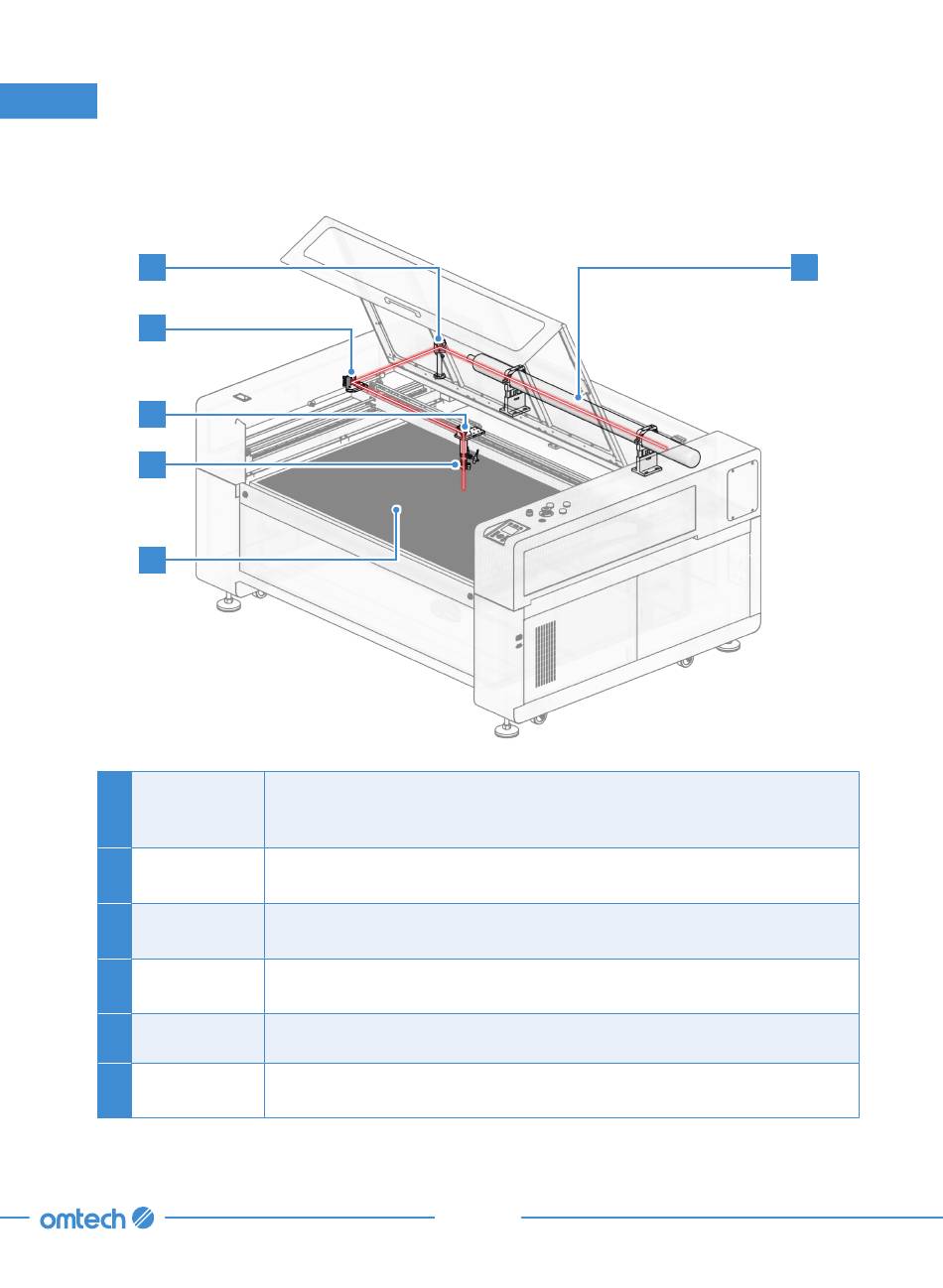

2.4.3 Laser Path
B
C
D
E
F
This CO ₂ -filled glass tube is mounted on brackets and immobile. Its
Laser Tube
A connection to the laser power supply is extremely high voltage and
extremely dangerous.
This adjustable-angle mirror is fixed in place to transfer the engraving laser
B 1st Mirror
from the tube to the 2nd mirror.
This adjustable-angle mirror moves with the X-axis rail to allow the laser
C 2nd Mirror
beam to travel along the Y axis.
This adjustable-angle mirror moves with the laser head to allow the laser
D 3rd Mirror
beam to travel along the X axis.
E Focus Lens This lens directs and focuses the laser to the material.
The bare workbed can be adjusted in height or fitted with aluminum or
F Workbed
honeycomb tables for different projects.
15
A
