2 Introduction

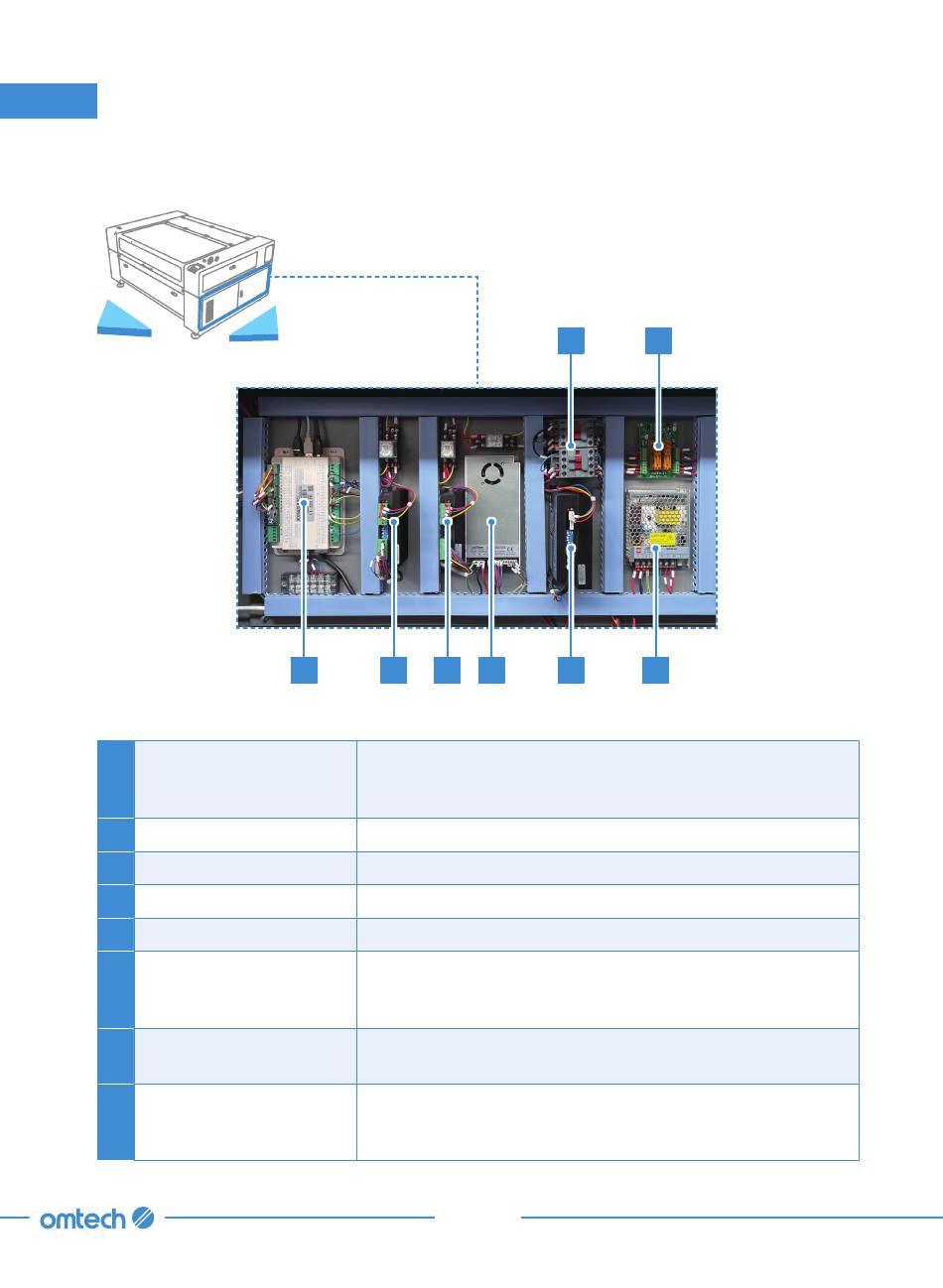

2.4.8 Electronics Bay
Front
Right
A
Mainboard
B
X-Axis Driver
C
Y-Axis Driver
D
Control Power Supply
Z-Axis Driver
E
Alternating Current
F
Contactor
G
Safety Power Supply
H
Safety Relay
A
B
C
This circuit board controls the engraving process, responding
to commands from your engraving software or the machine's
control panel.
This device moves the laser head along the X rail.
This device moves the X rail along the Y rail.
This device powers the machine's control panel.
This device moves the workbed up and down.
This device forms a safety dual circuit with the safety relay by
making and breaking electrical connections between the laser
and the laser power supply.
This device powers the machine's safety relay, indicator lights,
and alternating current contactors.
This device shuts off the laser's power when either the cover
or the front access door is opened during use or when the
emergency shutoff button is pressed.
23
F
H
D
E
G
