Omtech SH-G1610 User Manual page 23

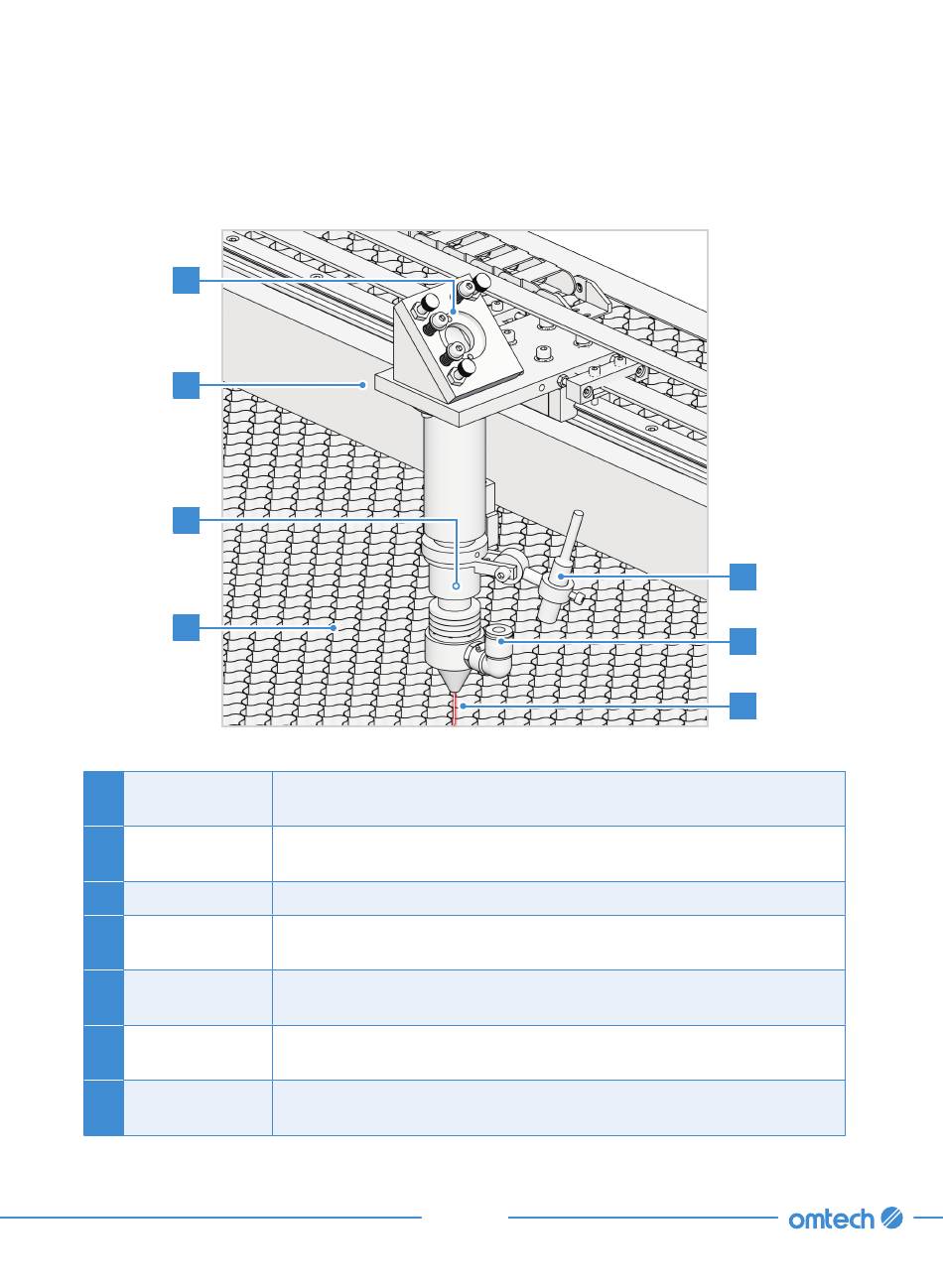

2.4.4 Laser Head
A
B
D
G
3rd Mirror
A
B X-Axis Rail
C Red Dot Pointer
D Focus Lens
E Air Assist
Laser
F
G Workbed
This adjustable-angle mirror transfers the laser from the 2nd mirror to
the focus lens.
This rail moves along the Y axis, with its movement controlled by limit
switches.
This device helps you see the exact position of the invisible engraving laser.
This 18 mm lens directs and focuses the laser beam to its point of
contact with the engraving material.
This device blows pressurized air to kill sparks and blow away gas and
debris as you engrave.
The engraving laser itself is invisible but highly dangerous. Avoid any
direct exposure to your skin or eyes.
The workbed can be moved up or down by using the provided acrylic
focusing tool (L) to get the perfect focus for any thickness of material.
16
C
E
F
