4 Operation
4.7.14 Saving Current Parameters and Virtual Keyboard Use

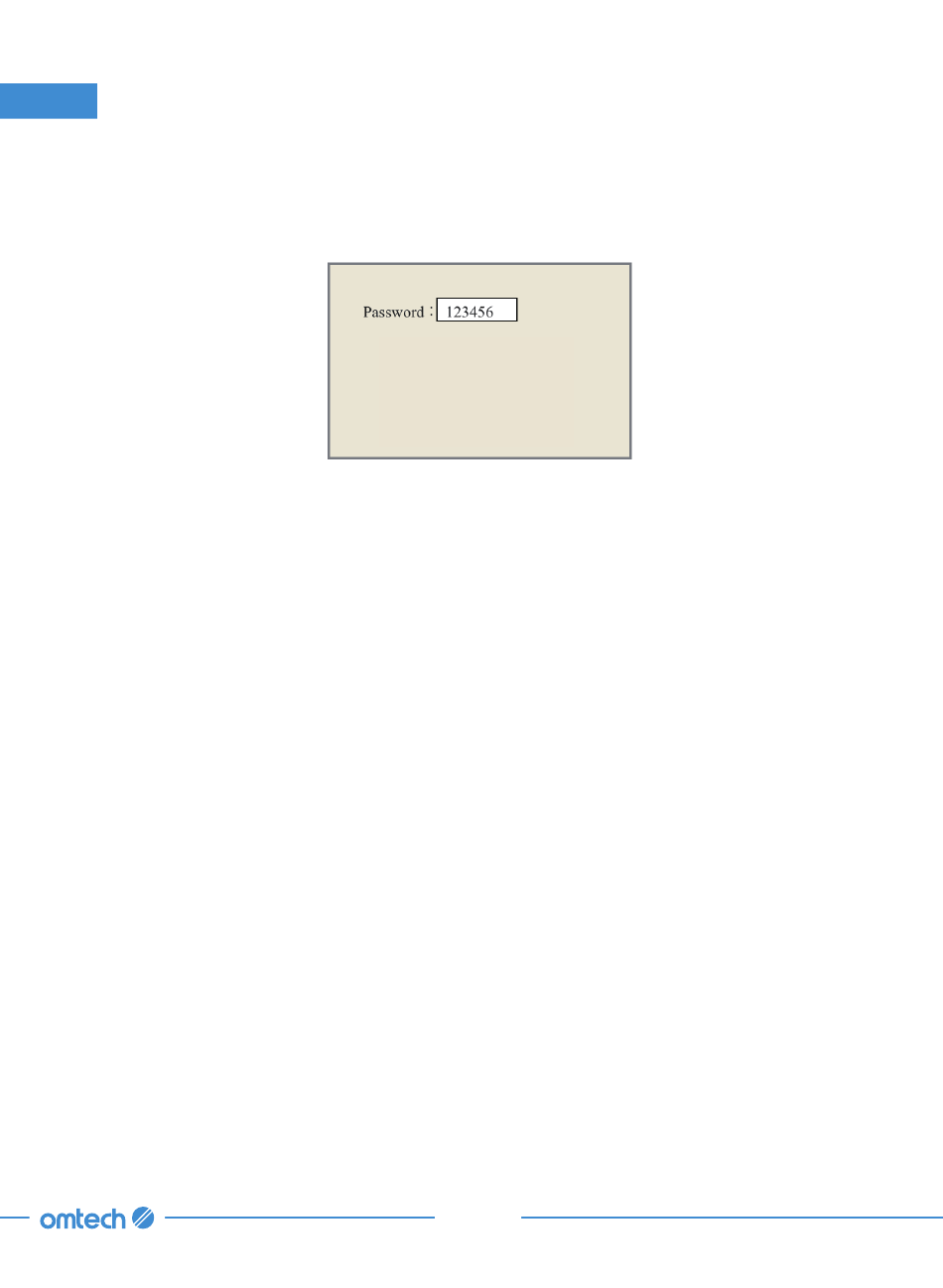

When the light blue cursor is on the "Set factory para" item, press ENTER, and the following
dialogue box will pop up:
The password consists of six characters. Push the ▲ and ▼ and ◄ and ► keys to select each
character, and press ENTER to confirm each selection. If the password is wrong, "password error"
will pop up and you need to reenter the password. If the password is correct, the system will set all
current parameters as factory parameters, and "factory parameters have been successfully set" will
appear on the screen.
Before a machine leaves the factory, this function is used to store the preset parameters, which
later can be restored by users at any time.
4.7.15 Loading Saved Parameter
When "FST default para" is selected, the system will replace all current parameters with the default
factory parameters. The operation method is the same as setting the factory parameters.
4.7.16 Autofocus
When the light blue cursor stops on "Auto Focus", press ENTER to automatically focus the laser lens.
