4 Operation

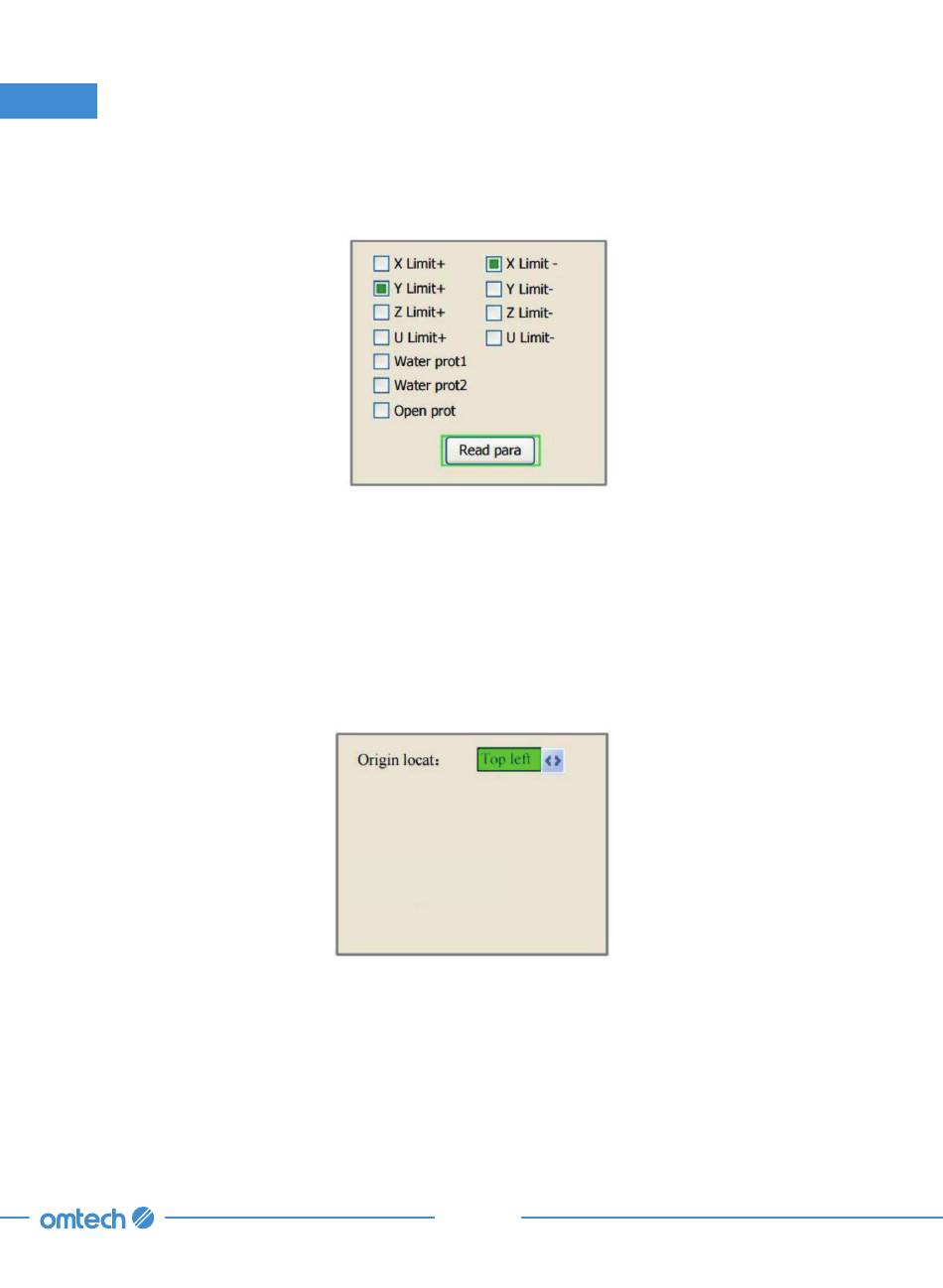

4.7.19 Diagnostic Tools
When the light blue cursor is on this item, press ENTER, and the following dialogue box will pop up:
This interface contains input/output information of the system's hardware. Press the "Read Para"
button to access hardware information. When the hardware signal is triggered, the small box to
the left of the corresponding item will be displayed in green. Otherwise, it will be gray. Press ESC to
return to the previous menu.
4.7.20 Reflecting Images across an Axis
When the light blue cursor is on this item, press ENTER, and the following dialogue box will pop up:
This interface shows the position of the origin. Different origin positions can generate different
reflections of the graph over the X/Y axis. The operation method is the same as described above.
