4 Operation
4.7.11 Manual Movement of the Laser Head

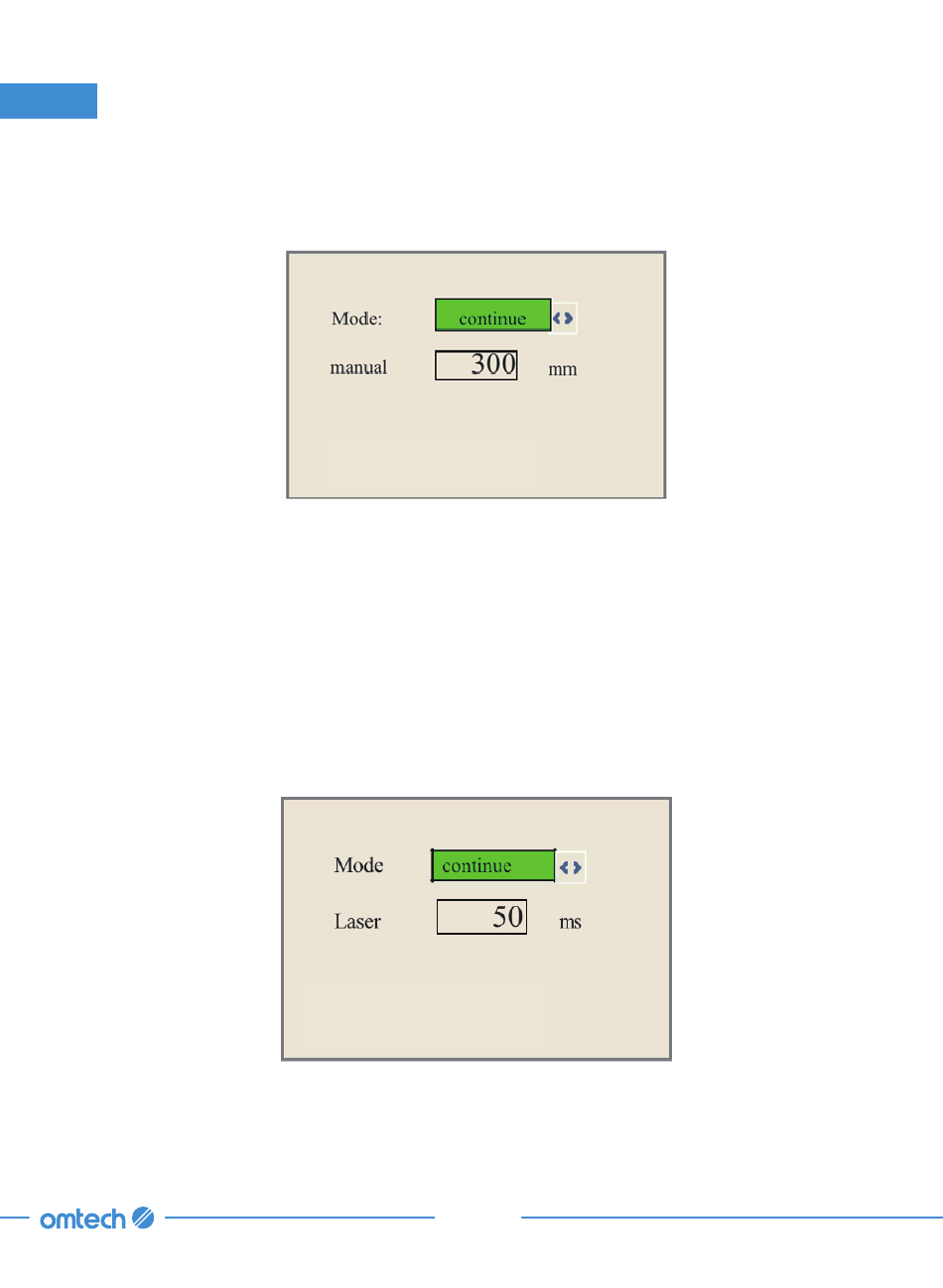

When the light blue cursor is on "Manual Set+", press ENTER, and the following dialogue box will
pop up:
When the light blue cursor is on "Mode", push the ◄ and ► keys to choose between the two
modes "Continue" and "Manual". Push FN to move the cursor. When the cursor is on the "Manual"
item, push the ▲ and ▼ and ◄ and ► keys to change the parameters. When the "Continue" mode
is selected, the "Manual" item will not be valid. In this case, press down the direction keys to move
the corresponding axes, and release the keys to stop the moving. When it is in "Manual" mode,
push the direction key and the corresponding axes will move a fixed length as set by the users with
each push (unless the scope is overstepped).
4.7.12 Manual Firing of the Laser
When the light blue cursor is on "Laser Set+", press ENTER, and the following dialogue box will pop up:
The operation method is the same as that of the manual set. When "Continue" mode is selected,
press down Pulse to fire the enabled lasers, and release Pulse to finish firing. When "Manual" mode
is selected, push Pulse, and the laser will fire for a fixed period of time as set by the users with each
push.
