3 Installation
3.4 Installing the Water Cooling System (Not Included)
A water cooling system—typically a water pump or chiller—MUST be used with this engraver to
absorb the heat produced by the laser tube. The water cooling system is essential to your engraver's
performance and longevity. Without a properly maintained cooling system, the glass laser tube WILL
explode from excess heat.
For an engraver with such high power, it is recommended to use an industrial water chiller for better
cooling performance, especially when you are using the machine for a long time.
For instructions, see the manual of your water cooling system. But keep in mind:
• Connect the water OUTLET of your water cooling system to the water INLET of the engraver.
• Connect the water INLET of your water cooling system to the water OUTLET of the engraver.
• The power socket labeled Water Pump on the back of the machine is ONLY designed for your
water pump and is not suitable for a chiller.

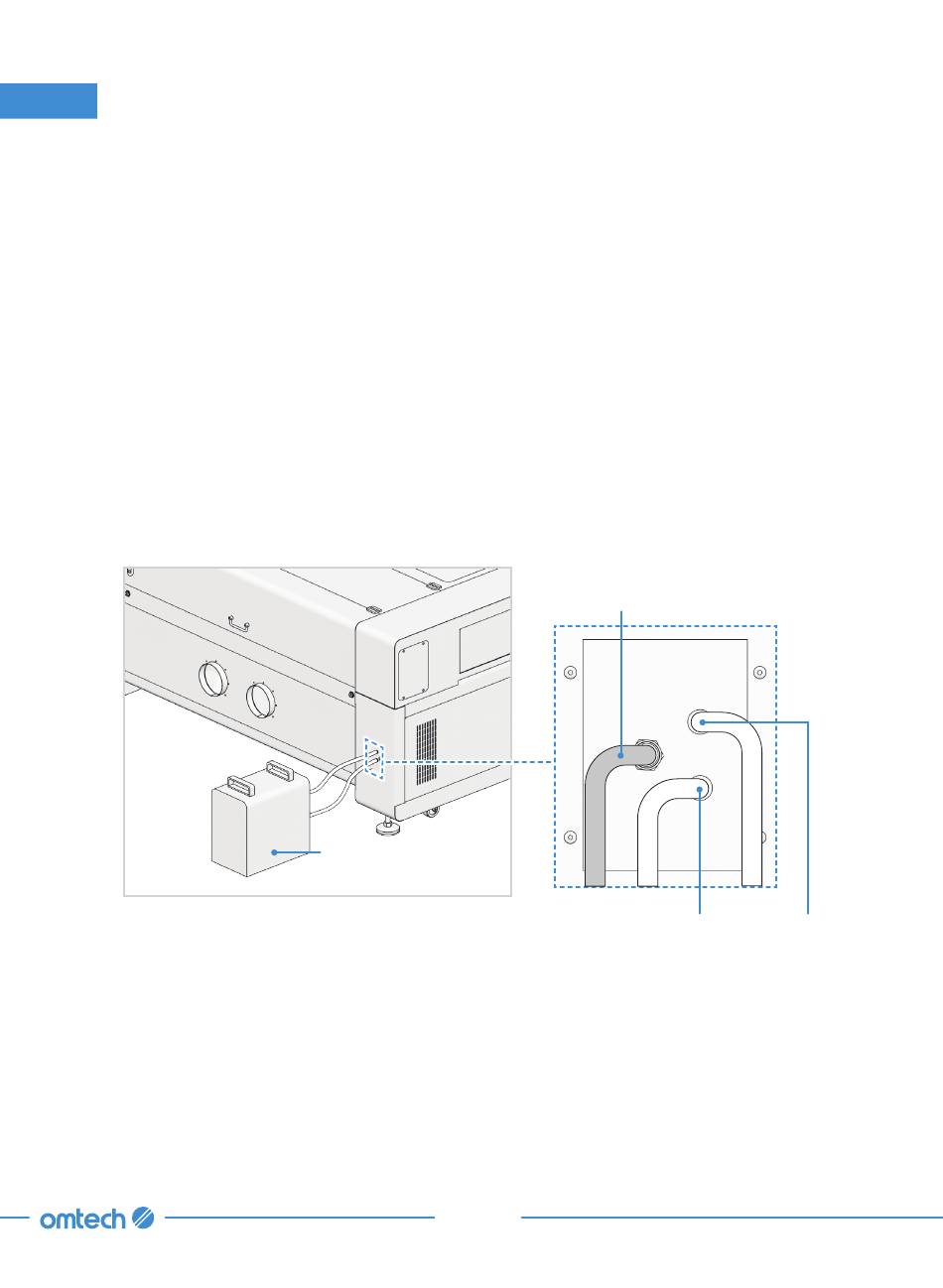

Example
Chiller Alarm Cable
Chiller
Water Outlet Water Inlet
