4 Operation

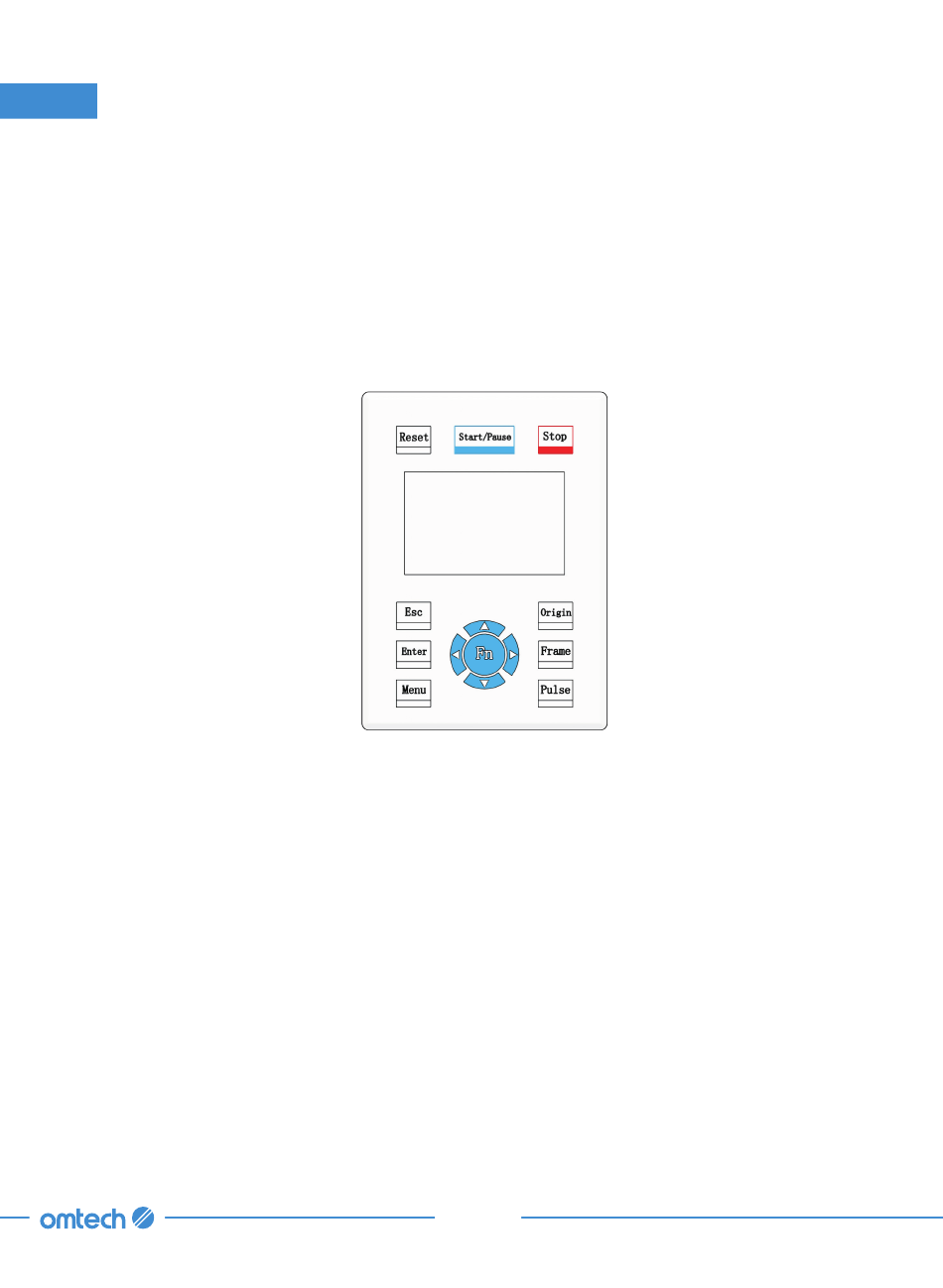

4.7 Control Panel Instructions
4.7.1 Overview
You can control your engraver directly from the built-in control panel, through a direct connection
with your computer, or over the internet. For details on operating your engraving software, see
its separate manual. The built-in control panel can operate the laser manually or engrave designs
loaded onto flash drives and external hard drives connected to the USB port on the right side of the
cabinet.
For manual operation, the arrow keys can be used to move the laser head along the X and Y-axis
guide rails and the Pulse button can be used to fire the laser. The laser head can be set to tab over
a set distance each time the arrow buttons are pressed by hitting FN and adjusting the parameters
under "Manual Set+". The laser can be set to fire for a fixed period by pressing FN and adjusting the
parameters under "Laser Set+". All of the buttons and menus should be labelled in English. If they
are not, press FN and go to the top button in the right column to change the console's language
settings.
