Omtech SH-G1610 User Manual page 60

4 Operation
4.7.5 File Commands

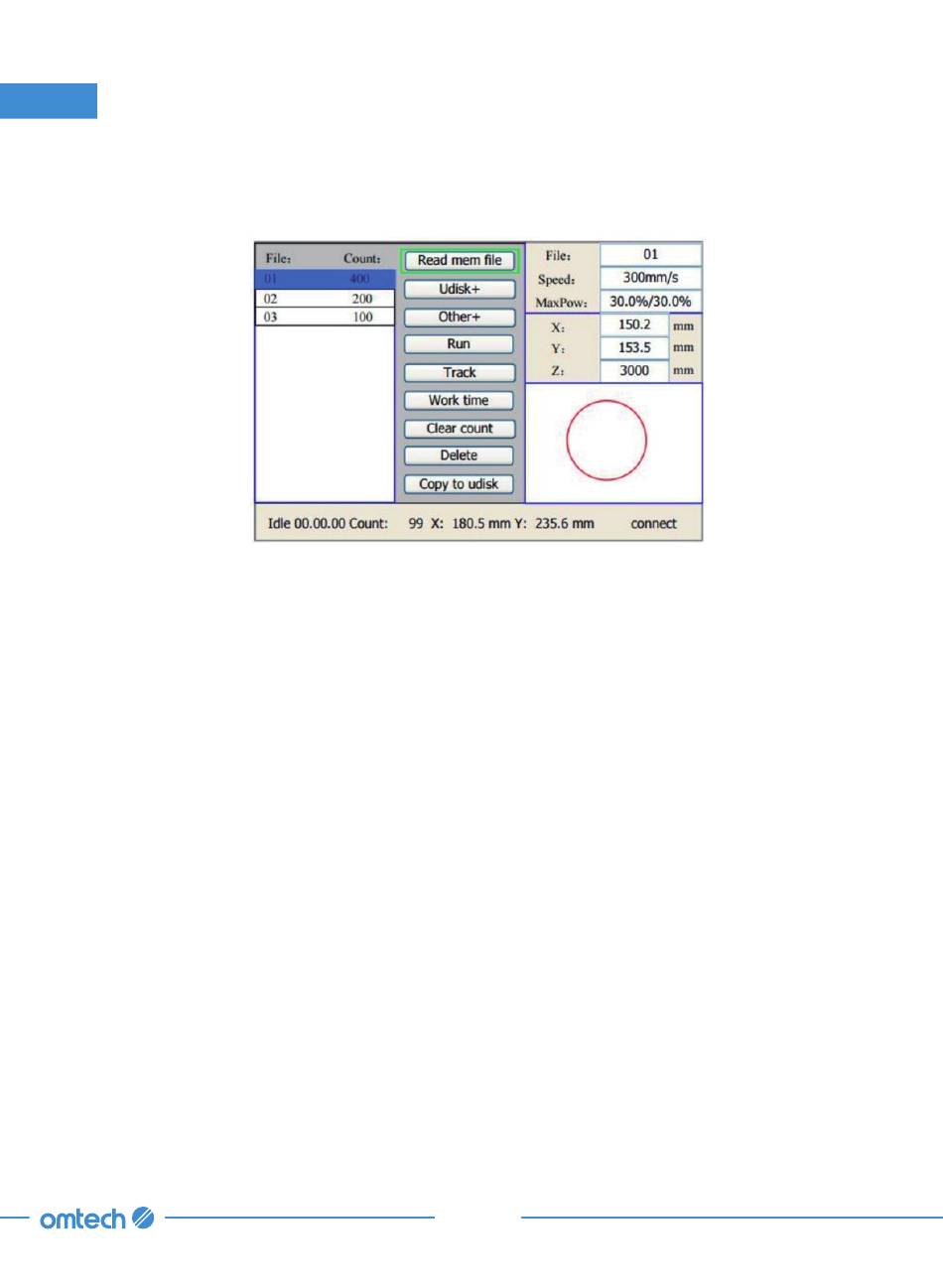

Select "File" on the Menu interface, and the following dialogue box will appear:
When entering the above interface, the system automatically reads the memory files. The file name
and the work times will be listed, and the selected file will be previewed in the upper right corner.
When there are several files, use the ▲ and ▼ keys to select one file, and its preview will be shown
in the upper right corner of the interface. Press ENTER to preview the selected file on the main
interface. Press ESC to close the preview.
Push the ◄ and ► keys, and the light blue cursor can be moved left and right to switch between
the file column in the left and the item column in the middle. If the file is being previewed, the
preview will be closed when switching to the item column. When the light blue cursor is on the item
column, push the ▲ and ▼ keys to select the item and press ENTER to activate the item.
Press ESC to return to the main interface.
The item column includes:
•
Read Mem File reads the memory file list
•
U-Disk reads the file list of an inserted USB flash drive·
•
Other Displays other memory files operations
•
Run runs the selected file equivalent to pressing Start/Pause.
•
Track tracks the selected file
•
Work Time forecasts the total running time of the selected file, accurate to 1 ms
•
Clear Count clears the count of the selected file
•
Delete deletes the selected file from the memory
•
Copy to U-Disk copies the selected file to an inserted USB flash drive
53
