4.7.13 Setting Origin Points

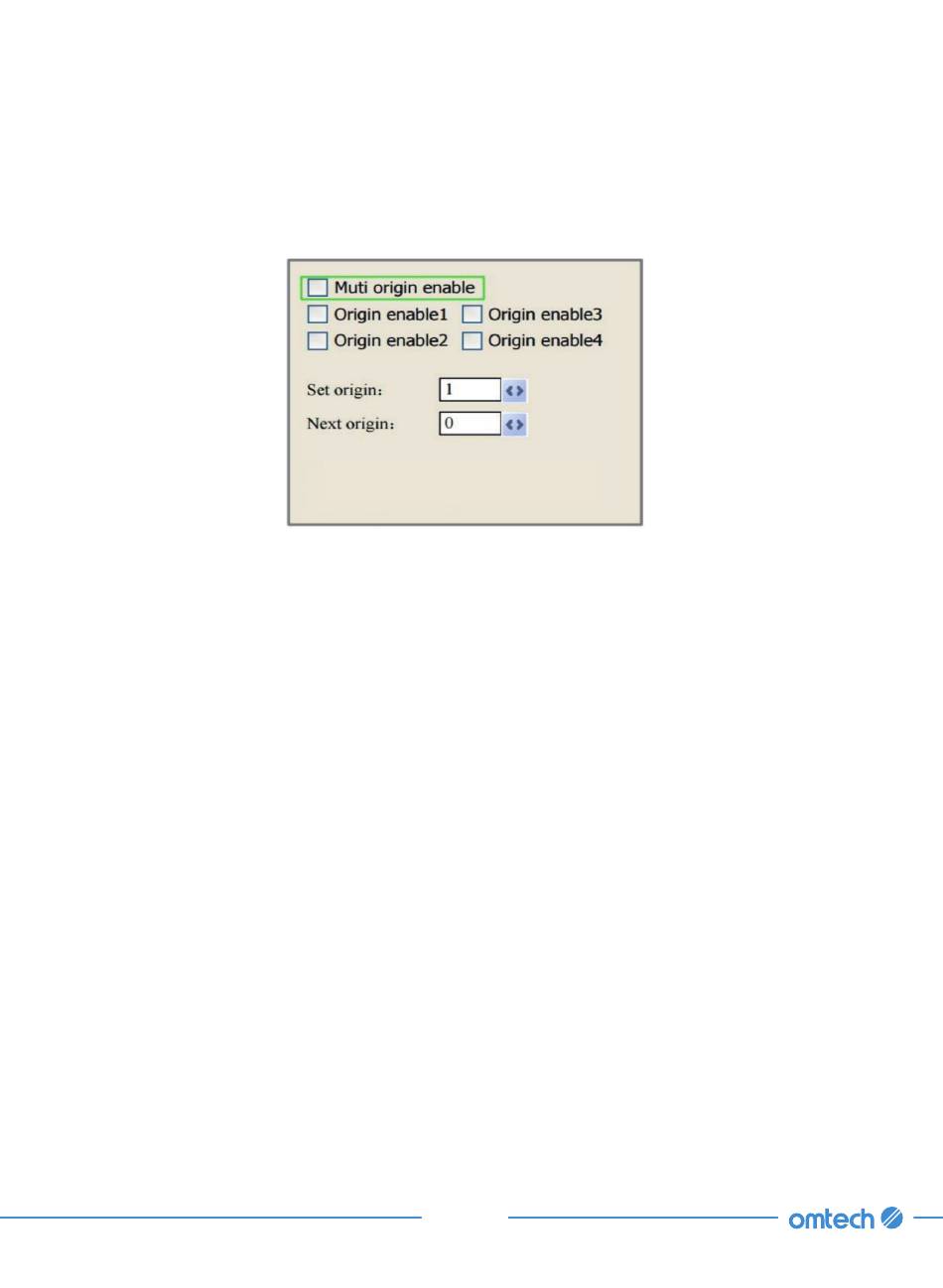

When the light blue cursor is on "Origin Set+", press ENTER, and the following dialogue box will
pop up:
Press FN to move the light blue cursor to an item and press ENTER to enable or disable the item.
When enabled, the small box will be red and, when disabled, the small box will be gray. When the
light blue cursor is on the "Set origin" item or the "Next origin" item, push the ◄ and ► keys to
change the value. When changing the parameters of "Set origin", remember to press ENTER to
validate the change. Parameters will be saved automatically when the interface is closed.
Multiple Origins Enable: "Yes" or "No" can be selected. If you select "No", the system will use
single-origin logic. If you press Origin and set the origin, only this origin will be used. If you select
"Yes", the system will use multiple-origin logic and Origin is disabled. In this case, the parameter of
each origin must be set in the menu.
Set Origin 1/2/3/4: After multiple-origin logic is enabled, put the cursor on "Set as Origin 1/2/3/4".
Press ENTER on the keyboard and the system will take the coordinates as the corresponding origin.
Next Origin: Users can choose from 0–4, which represent the origin to be used for the next figure.
Origin 0 refers to the origin set by Origin under single-origin logic. 1–4 represent the origins under
multiple-origin logic.
The next origin can be chosen from origin 1–4 so as to control the starting point of the next job
provided that the origin is enabled. However, it cannot be changed to origin 0. The next origin will
always be Origin 0 under single-origin logic.
Origin Enable 1/2/3/4: After multiple-origin logic is enabled, the four origins can also be individually
disabled and enabled.
Once multiple-origin logic is selected, if the number of the next origin is 1 and four origins are
enabled, when the memory file function is started (via the keyboard or PC) or the processing file
is uploaded into the PC and this file selects "Take the Original Origin as the Origin", the work will
use different origins each time it starts. The rotation order of origins is 1➝2➝3➝4➝1➝2...If the
processing file is uploaded to the PC and this file selects "Take the Current Origin as the Origin", the
system will always use the current origin.
