Table 3: Control panel and repeater keys
Key
LAMP TEST
HELP
Note: You can operate the LAMP TEST, SILENCE
BUZZER, and EVAC command keys without the
access code, access level L1. To operate all the
other command keys, use the access level L2
and L3 codes.
Help key
This section describes the functionality of the help
key (?).
To explain the information on the LCD display on
the different screens, an embedded help feature is
present on the panel UI.
To display help related to a LCD screen, press the
help key. For example, see
To scroll the help screen, use the Up and Down keys.
To exit the help screen, press Esc.

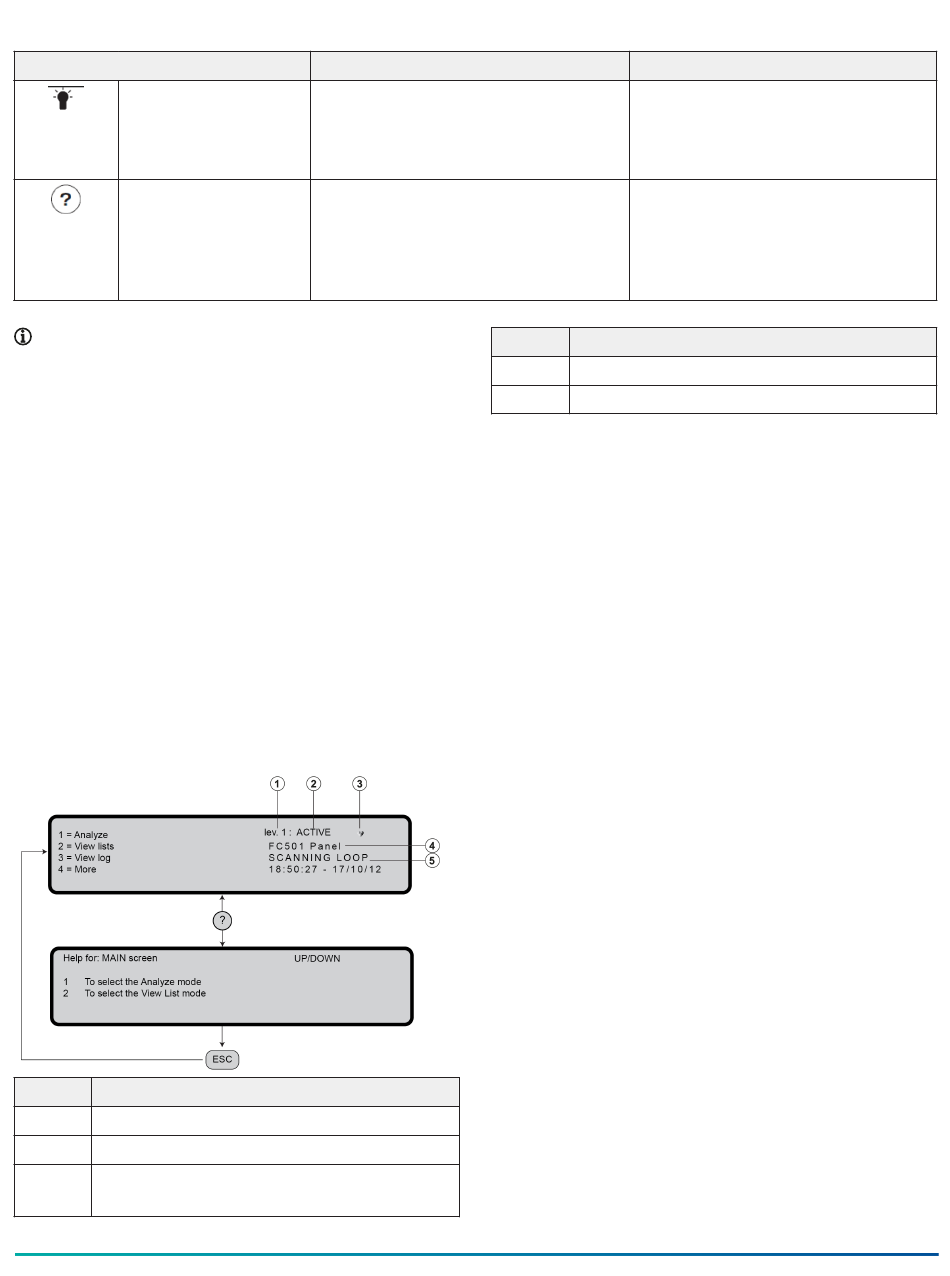

Figure 2: Example of the LCD display after
pressing the help key
Callout Description
1 Access level
2 Control panel status
3 If flashing, the control panel is working
normally
Description
Tests the buzzer and the LEDs
Explains the information on the LCD
display in the different screens
Figure 2.
Notes
If you press this key when the
control panel is functioning as
intended, all LEDs are on and the
buzzer emits a continuous beep.
• This is an embedded help
feature present on the panel
LCD display.
• The help key is disabled on
repeater panels.
Callout Description
4 Control panel name (you can modify this)
5 Working activity
Silencing and reactivating sounders
The control panel operates in day or night mode. If
the system is silenced during day mode, the silence
status remains until the system is unsilenced unless
new alarms or faults occur. If the system is silenced
during night mode, the silence status remains until
the night mode silence time expires. When you turn
on the system, it starts in day mode by default.
Reset
Reset stops alarm, delay-to-alarm, warning, and
fault conditions. Access to this command is limited
to authorized personnel using an installer or user
access code. The system reprocesses any alarm,
delay-to-alarm, warning or fault signal that is not
cleared by a reset. Command keys cannot be used
when a reset is running.
System status signaling
The system status is indicated by the following
items:
• Status LEDs
• Display
• Buzzer
