3 Key - View software zones
information
To view software zones information, press the 3 key
on the ANALYZE menu. The status of the software
zones display in compact format, see
The status of the software zones display using the
abbreviations in Table

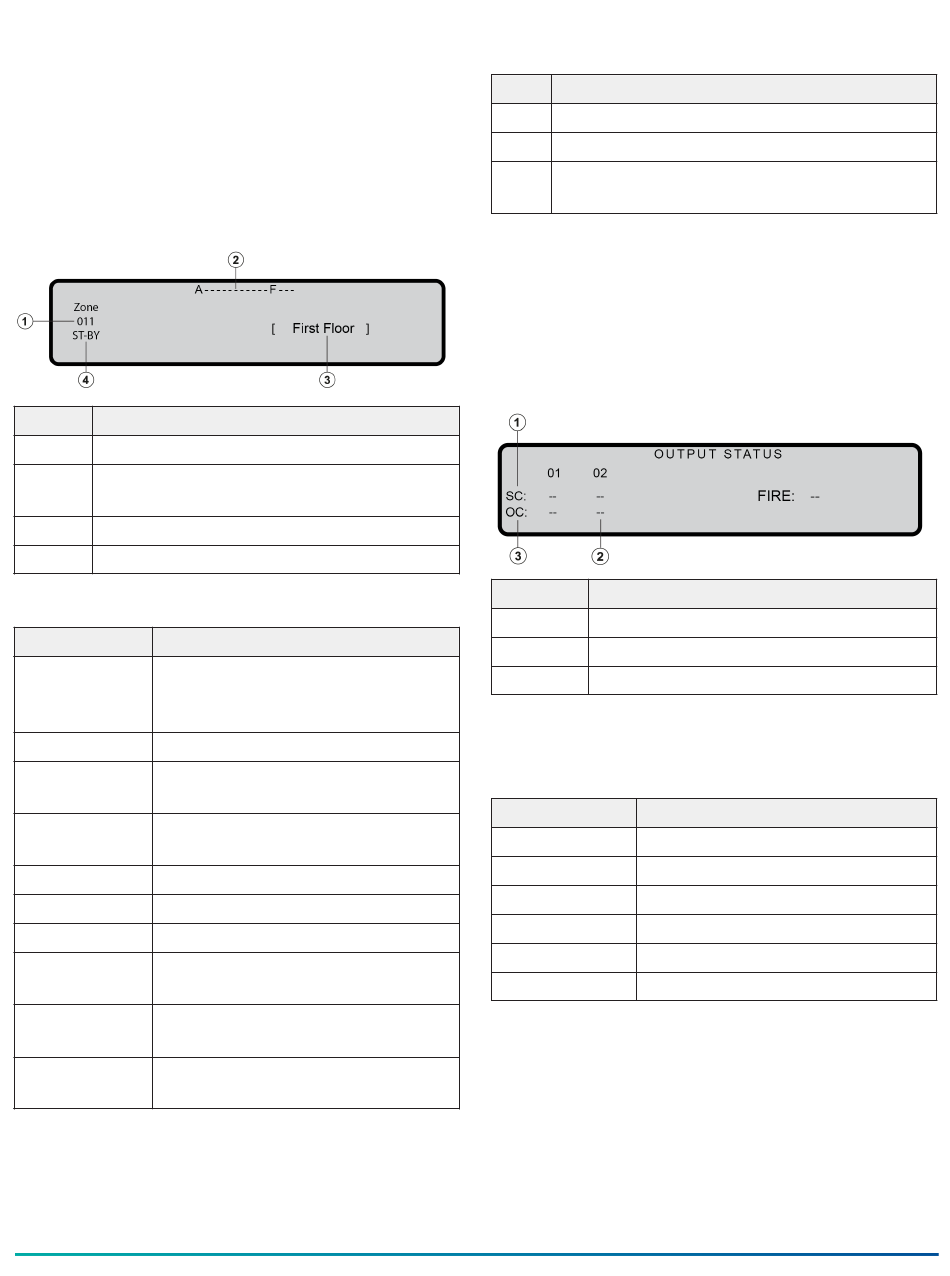

Figure 18: Viewing software zones information
Callout Description
1 Zone number
2 Abbreviated status of all control panel
zones. See Table
3 Zone label
4 Zone status. See
Table 18: Software zone status abbreviations
Abbreviation Description
: UNUSED: The zone is not in use.
There are no devices assigned to
it.
A ALARM: The zone is in alarm status
a PRE AL: The zone is in delay-to-
alarm status
W WARNING: The zone is in warning
status
F FAULT: The zone is in fault status
X DISABLED: The zone is disabled
t TEST: The zone is in test mode
T TEST ON: At least one point in the
zone is actively in test mode
_ ST-BY: The zone is in standby
status
D DIRTY: At least one smoke
detector in the zone is dirty
20 FC501 Addressable Fire Control Panels User Manual
Figure
18.
18.
Table 18.
Table 19: Keys function for software zones
information display
Key Function
Right Selects the next software zone.
18.
Left Selects the previous software zone.
Esc Cancels the operation and returns to the
previous screen
4 Key - View outputs status
To view the control panel outputs status, press
the 4 key on the analyze menu. The status of the
control panel outputs displays in compact format,
see Figure
Figure 19: Viewing outputs status
Callout
1
2
3
The status of the outputs uses the abbreviations in
Table 20.
Table 20: Output status abbreviations
Abbreviation
DIS
ACT
SC
OPE
_ _
FAU
To return to the analyze menu, press Esc.
19.
Description
SC output
Standby status
Open collector output
Description
Output disabled
Output active
Output is short circuited
Output open
Output in standby
Transistor fault
