Table 22: Control panel operating mode
abbreviations
Abbreviation Description
DAY Day mode
NGT Night mode
AUT Automatic mode
To return to the ANALYZE menu, press Esc.
22 FC501 Addressable Fire Control Panels User Manual
8 Key – View event log
To view the event log, press the 8 key on the
ANALYZE menu. See

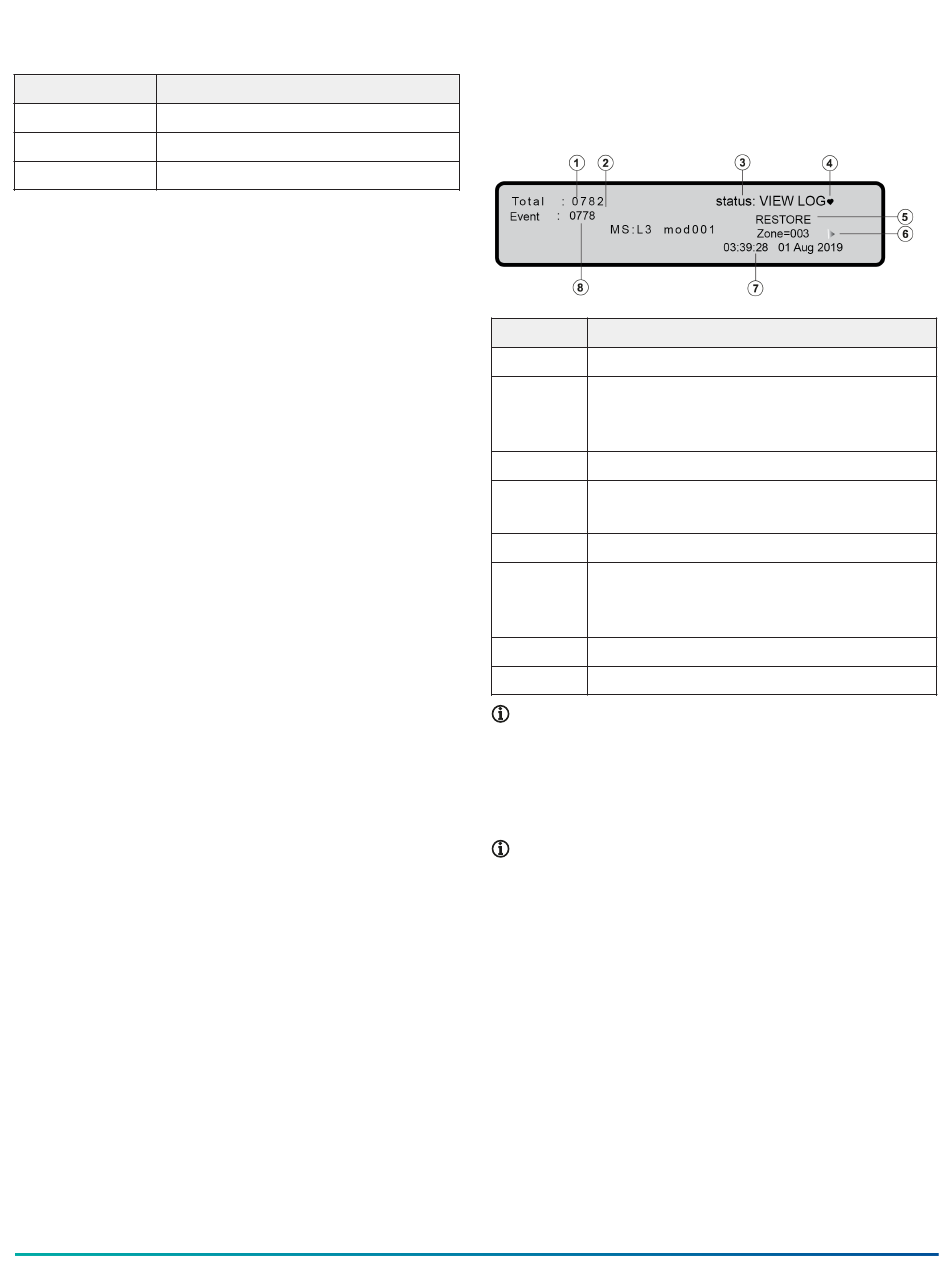

Figure 24: Viewing the event log
Callout Description
1 Total stored events
2 A flashing asterisk symbol * indicates
that you filtered the event view by
event type
3 Control panel status
4 If flashing, the control panel is
operating normally
5 Event type
6 The arrow symbols pointing right
indicate that there are more blocks to
view by using the Right cursor key
7 Time and date of the event
8 Current event number
Note: You can view the event log also by
pressing the 3 key on the main screen.
The event log stores the most recent 4,000 events.
When the event log is full, the oldest event is
deleted, so the newest can be stored.
Note: Use the CLEAR LOG option in the modify
menu to delete the log events.
The control panel stores the following information
in the event log:
• Event number
• Event type:
- RESTORE
- ALARM
- DELAY-TO-ALARM
- WARNING
- FAULT
- GENERIC
- WALK TEST
Figure 24.
