5 Key – View network devices status
To view network devices status, such as the MFI
modules and repeaters, press the 5 key on the
analyze menu. See Figure

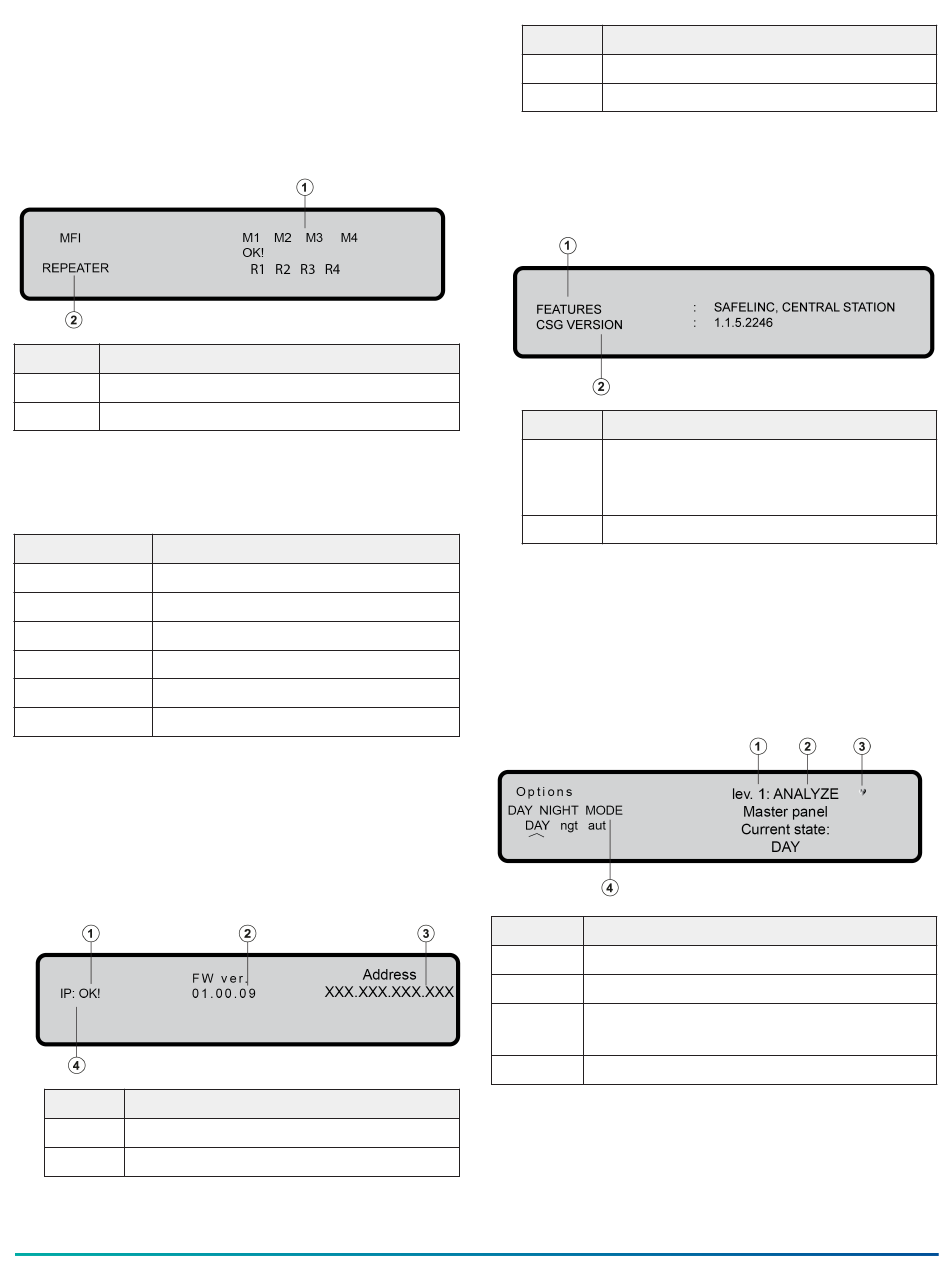

Figure 20: Viewing network devices status
Callout Description
1 Network devices status. See
2 Network devices type
The status of network devices uses the
abbreviations in Table
Table 21: Network device status abbreviations
Abbreviation Description
OK! Connected and working
KO! Not connected
FAU Faulty
DIS Disabled
No text Not enrolled
OLD Obsolete firmware version
6 Key – View communicator status
1. To view the communicator status, press the 6
key on the ANALYZE menu. See the following
figure.
Figure 21: Viewing the communicator status
Callout Description
1 Communicator status
2 Firmware version
20.
Table
21.
Callout Description
3
4
2. With the CSG selected, press the 6 key on the
ANALYZE menu. See the following figure.
Figure 22: Viewing the CSG
21.
Callout Description
1
2
3. To return to the ANALYZE menu, press Esc.
7 Key – View system options setup
To view the control panel operating mode, press the
7 key on the analyze menu. See
Figure 23: Viewing control panel operating mode
Callout
1
2
3
4
The control panel operating mode uses the
abbreviations in
FC501 Addressable Fire Control Panels User Manual
IP address of the IP module
Type of communication
This shows the features selected for
the CSG. For example, the SafeLINC
central station.
CSG build version number
Figure
Description
Access level
Menu name
If flashing, the control panel is
operating normally
Operating mode
Table 22.
23.
