Description of event driven screens
The event driven screens are activated by events in
the system and override the screen present on the
display at that time. An event driven screen may be
overridden by another event driven screen that has
a higher priority. The event driven screen behavior

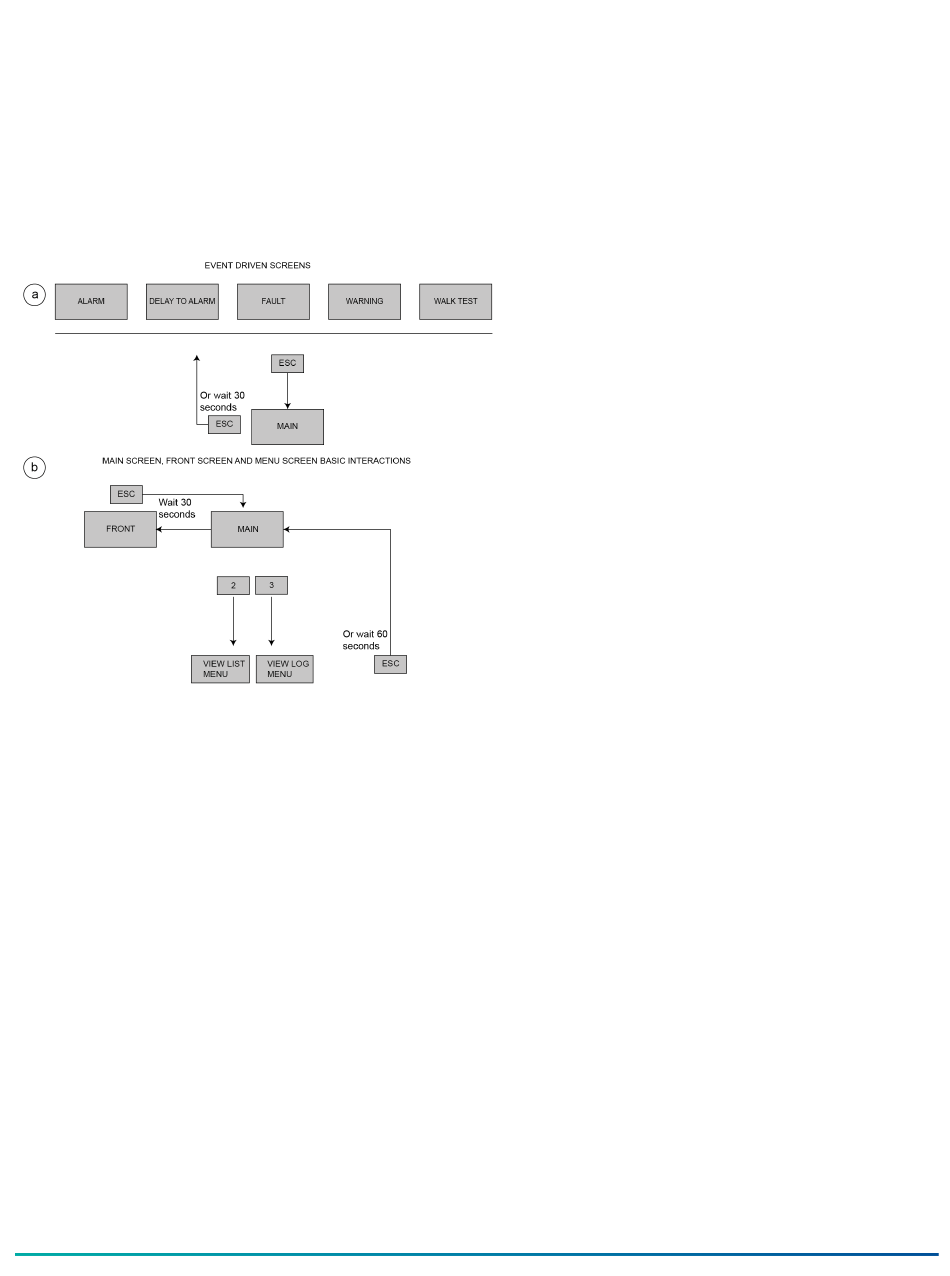

is completely under panel control. See
Figure 43: Event driven screens and main screen
interactions
The event driven screens replicate the panel event
driven screens with the following limitation: It is not
possible to change the display mode in the alarm or
delay-to-alarm screens.
Description of status LEDS
The Repeater status LEDs are described in
Figure 43 a.
Table 4.
