Table 10: Keys function on the delay-to-alarm
status screens
Key Function
3 Displays the status screen of the last
point in delay-to-alarm status
4 Displays further points in delay-to-alarm
status. When point information is present
in the fourth row, press the 4 key to
display the status screen of the related
device.
Up Shows the next point in delay-to-alarm
status. The display does not show the
next event if it is the last.
Down Shows the previous point in delay-to-
alarm status. The display does not show
the previous event if it is the first.
Right Shows the next block of data about the
point. See Figure
Left Shows the previous block of data about
the point. See
Esc Returns to the main screen
Enter Press for at least one second: Changes
between the visualization modes.
Press for less than one second: Stops or
restarts the zone or point swap.
Note: The keys function is the same for the
delay-to-alarm display by zones or by points.

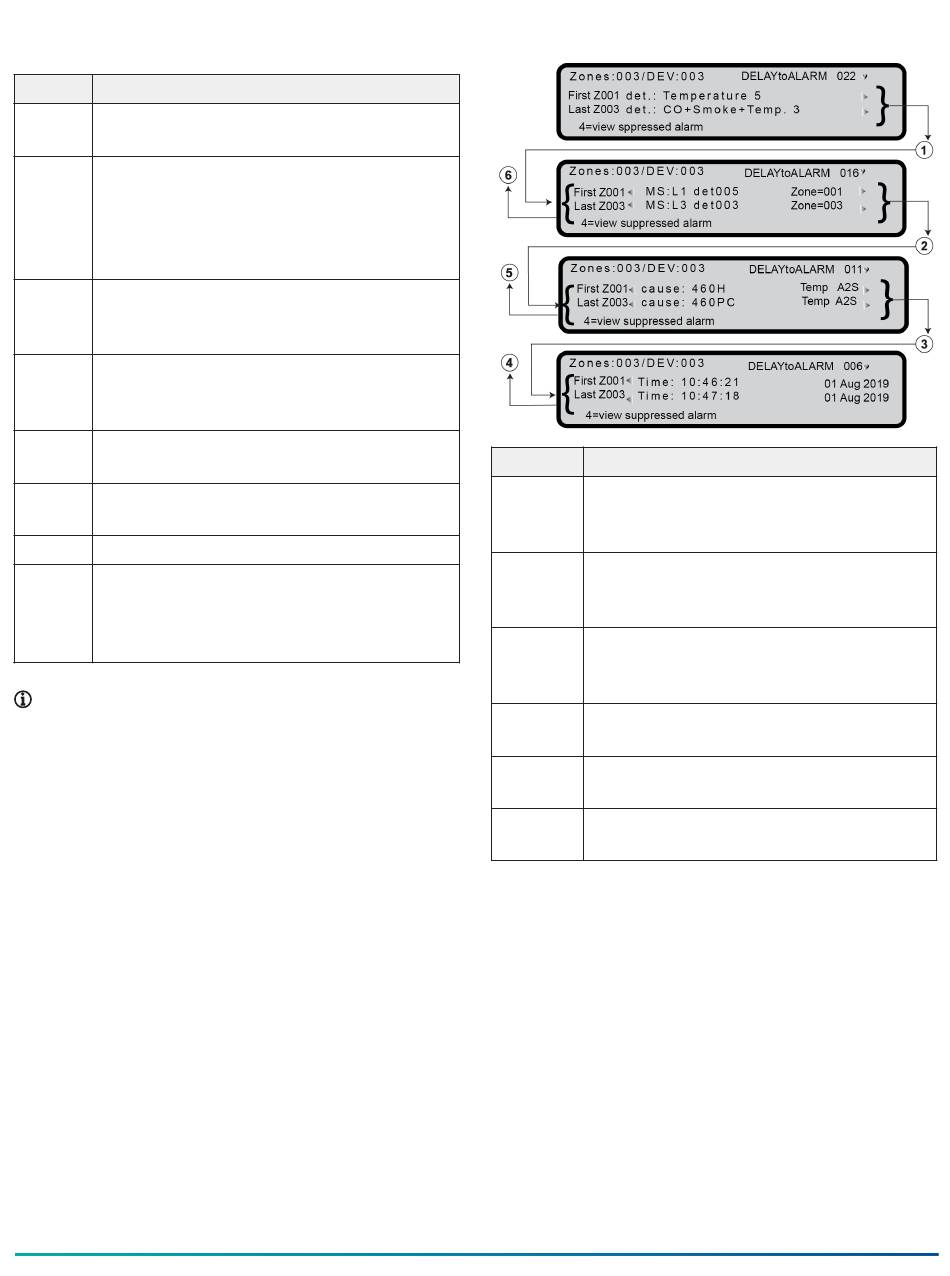

Figure 8 shows how to scroll the delay-to-alarm
status screens.
12 FC501 Addressable Fire Control Panels User Manual
8.
Figure 8.
Figure 8: Scrolling delay-to-alarm screens
Callout Description
1 Press the Right key to scroll to the
second block of data: The coordinates of
the points.
2 Press the Right key to scroll to the third
block of data: The causes of delay-to-
alarm status.
3 Press the Right key to scroll to the
fourth block of data: The times of delay-
to-alarm status.
4 Press the Left key to scroll back to the
third block of data.
5 Press the Left key to scroll back to the
second block of data.
6 Press the Left key to scroll back to the
first block of data.
